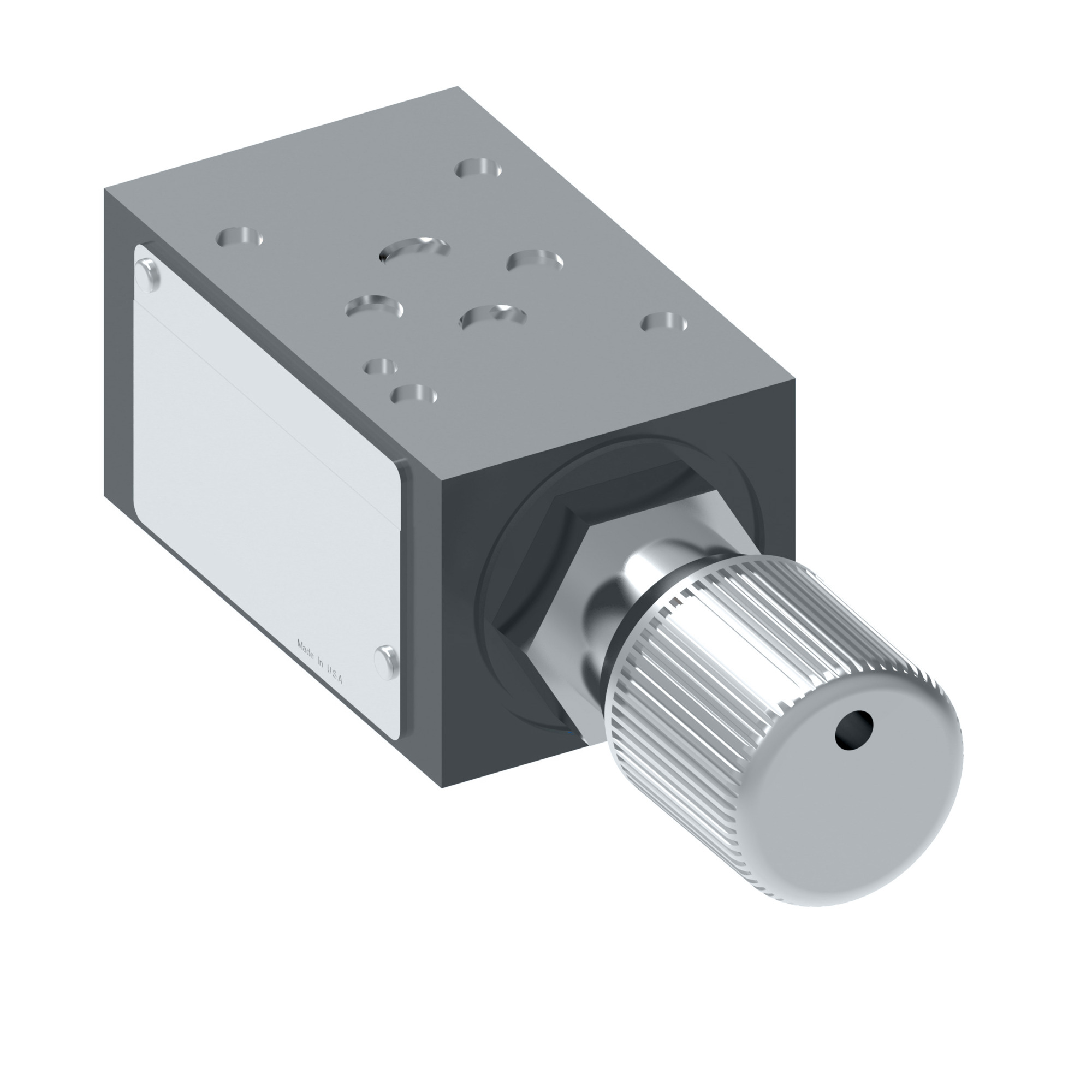

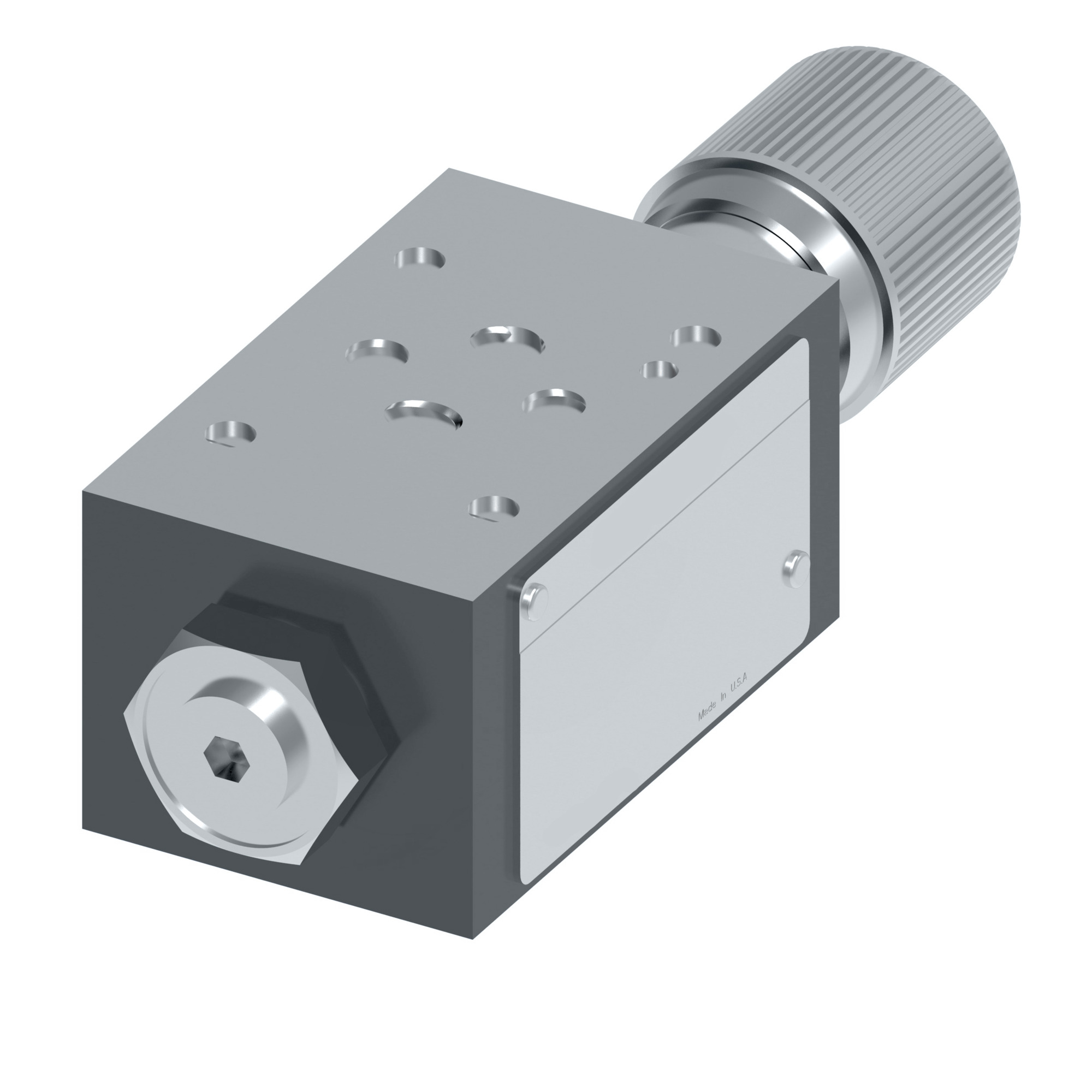

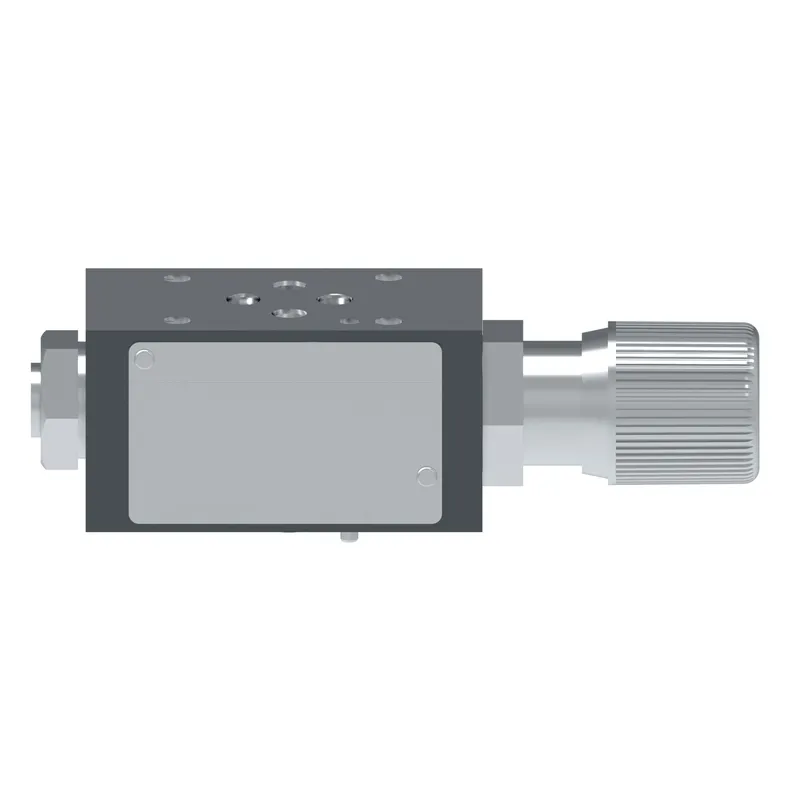

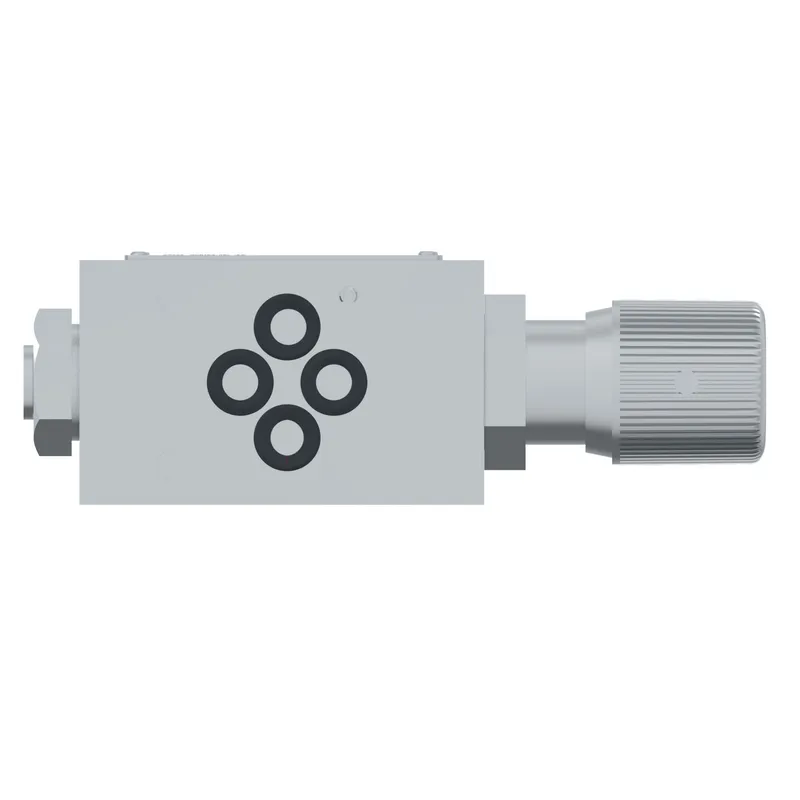

Danfoss 02-352745

DGMR1-3-PP-BH-B-40, DGMR13PPBHB40

MPN
02-352745
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-352745?

Danfoss DGMR1-3-PP-BH-B-40, DGMR13PPBHB40, manufacturer part number 02-352745. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePressure operated
Adjustment typeHandknob
BrandVickers by Danfoss
Design Series40 Series
Flow rate upto LPM60
Flow rate upto USGPM16.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Function portsP port controlled by pressure in P port
Gauge Port Thread TypeG1/8" (1/8" BSPF)
InterfaceISO4401-03
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model Code 1DGMR13PPBHB40
PerformanceStandard
Pressure adjustment range3.5-70 bar (51-1000 psi)
Product height in2.360
Product height mm59.944
Product length in7.050
Product length mm179.070
Product width in2.820
Product width mm71.628
Seal typeViton
Special featuresNone
Valve Mount TypeSubplate/manifold mounted
Valve typeSequence valve
Working temp max C80
Working temp max F176
Working temp min C-20
Working temp min F-4

02-352745: frequently asked questions

When can 02-352745 be shipped?

02-352745 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-352745 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-352745 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-352745, subject to availability and destination.
