What is the Danfoss 02-343412?

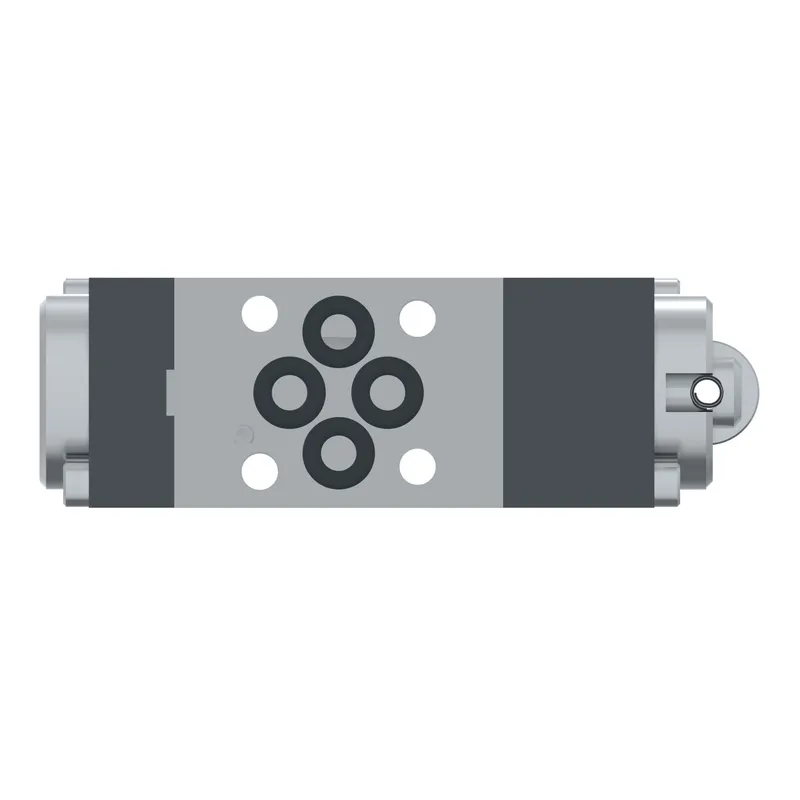

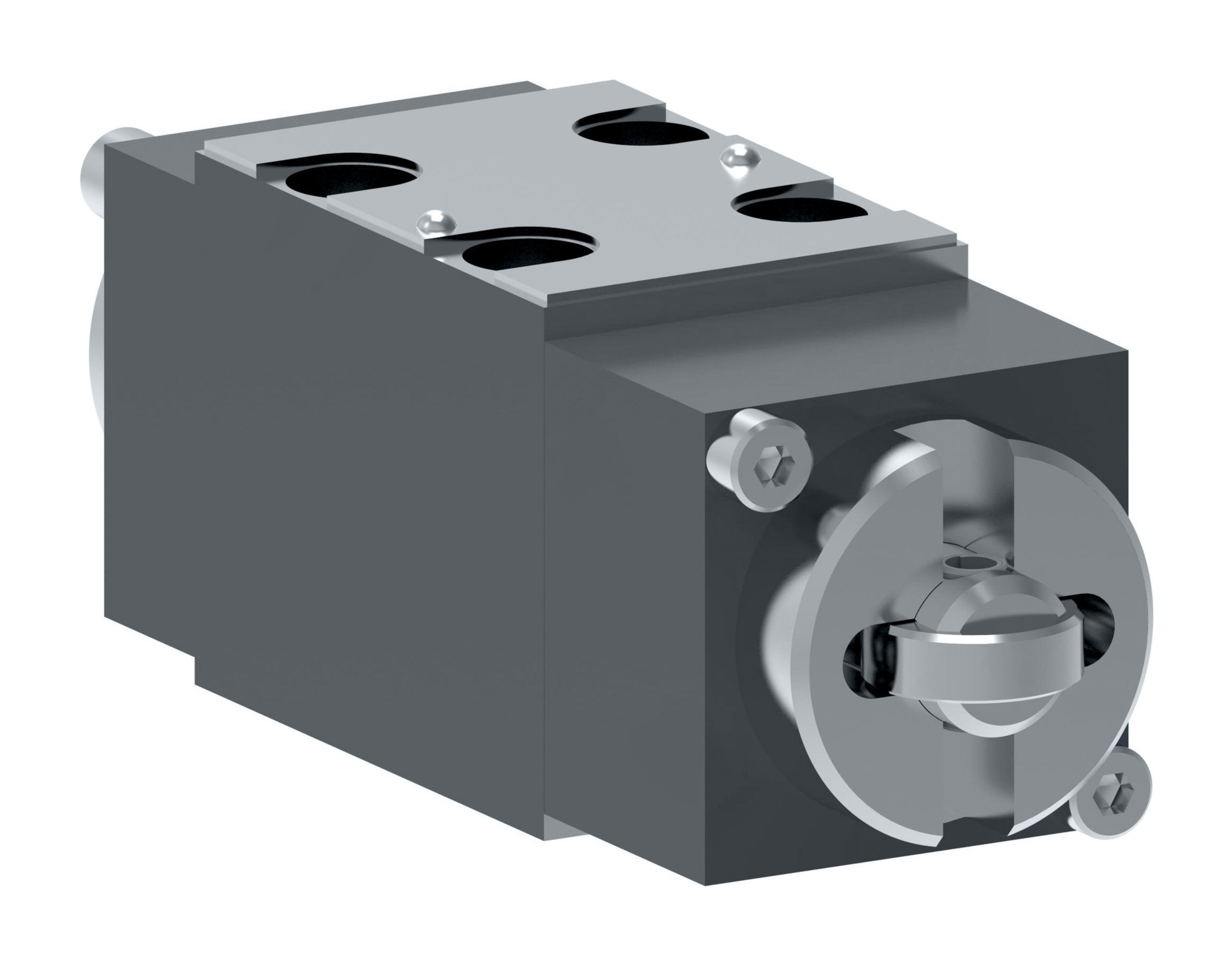

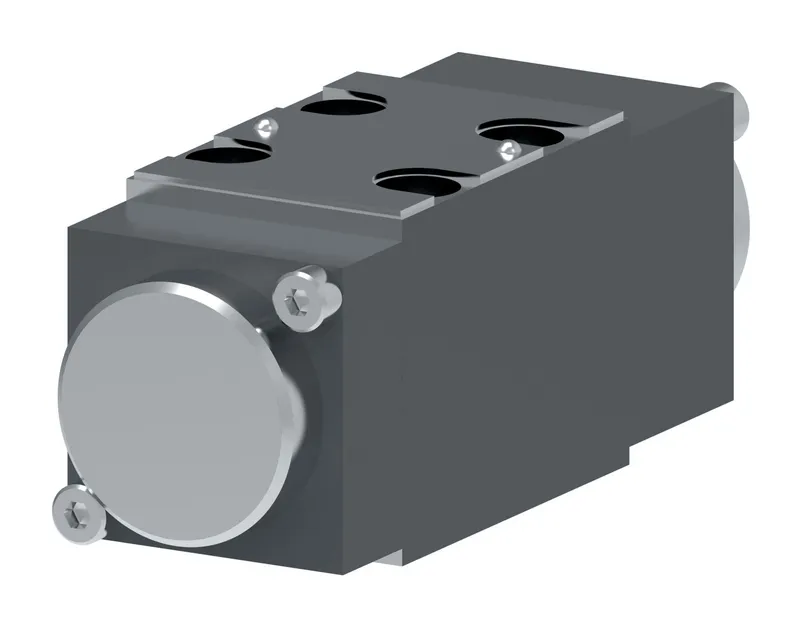

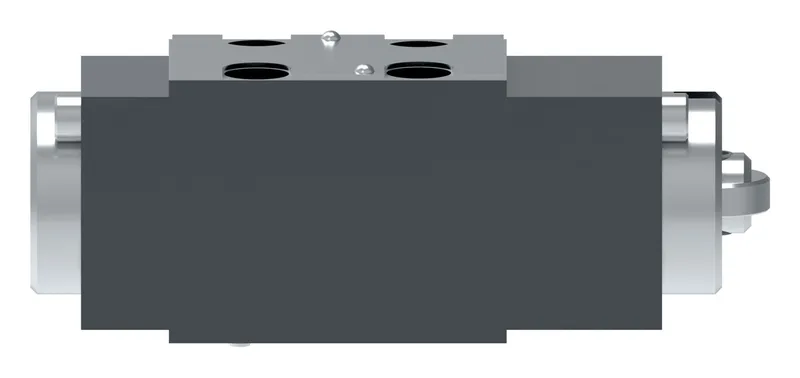

Danfoss DG2V-3-2AL-5-60, DG2V32AL560, manufacturer part number 02-343412. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Cam plunger operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	60 Series
Electrical Connection	None
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	None
Model Code 1	DG2V32AL560
Performance	Standard performance
Product height in	1.890
Product length in	6.500
Product length mm	165.100
Product width in	1.810
Product width mm	45.974
Seal type	WATER GLYCOL
Solenoid Energising ID	None
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset P-A LH
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	100.0
Tank port rating PSI	1450
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
