Danfoss 02-343299

MPN: 02-343299
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

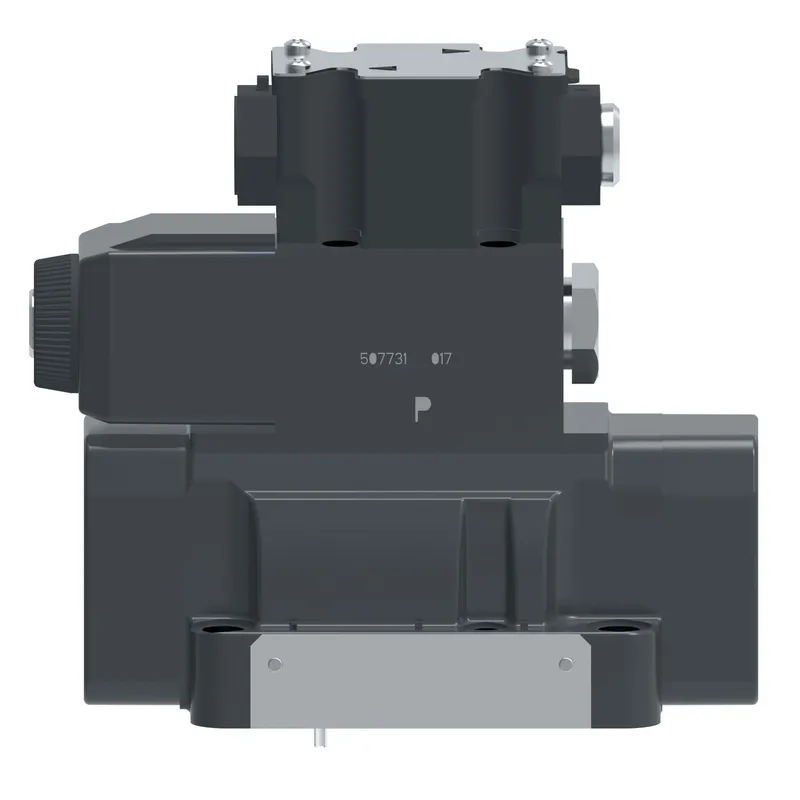

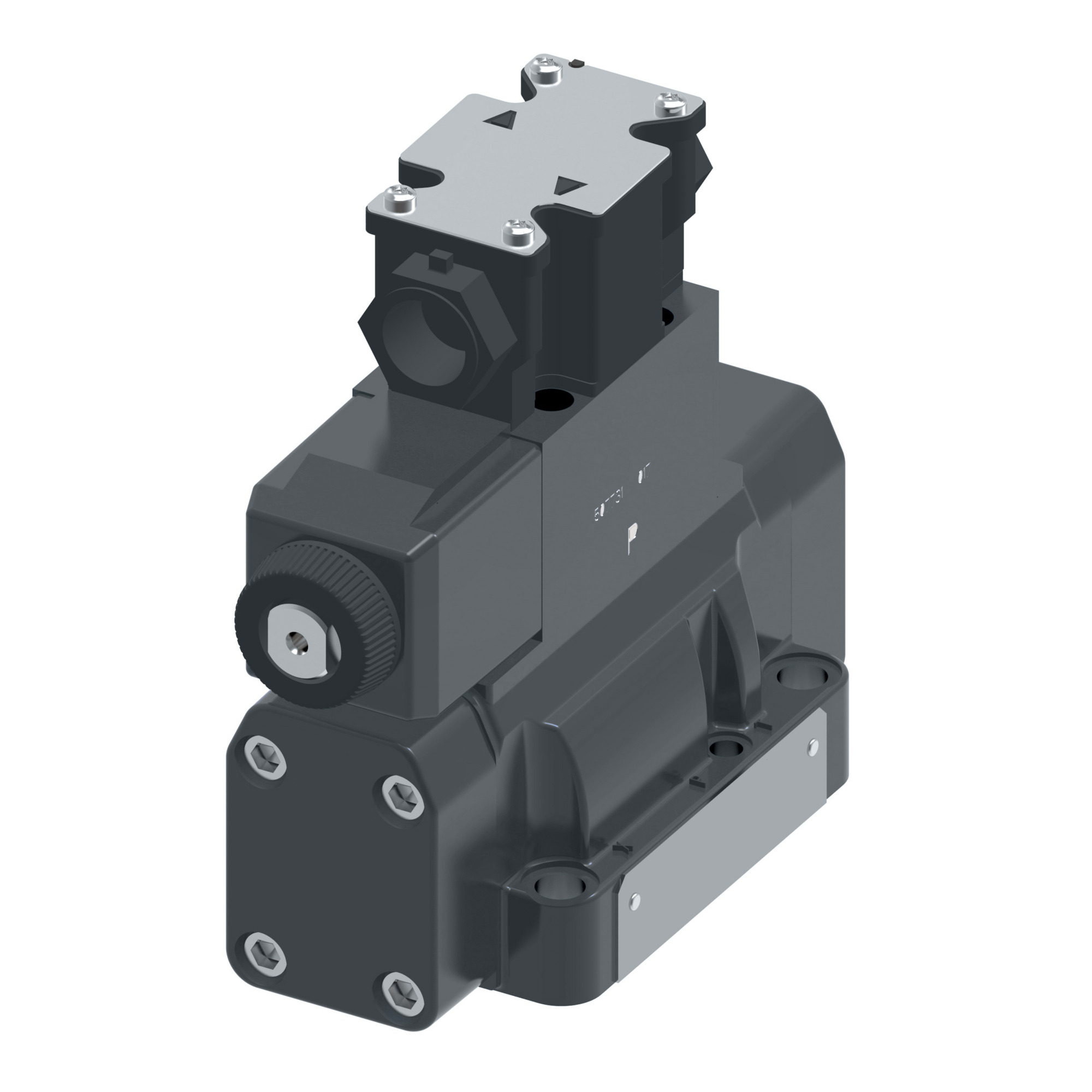

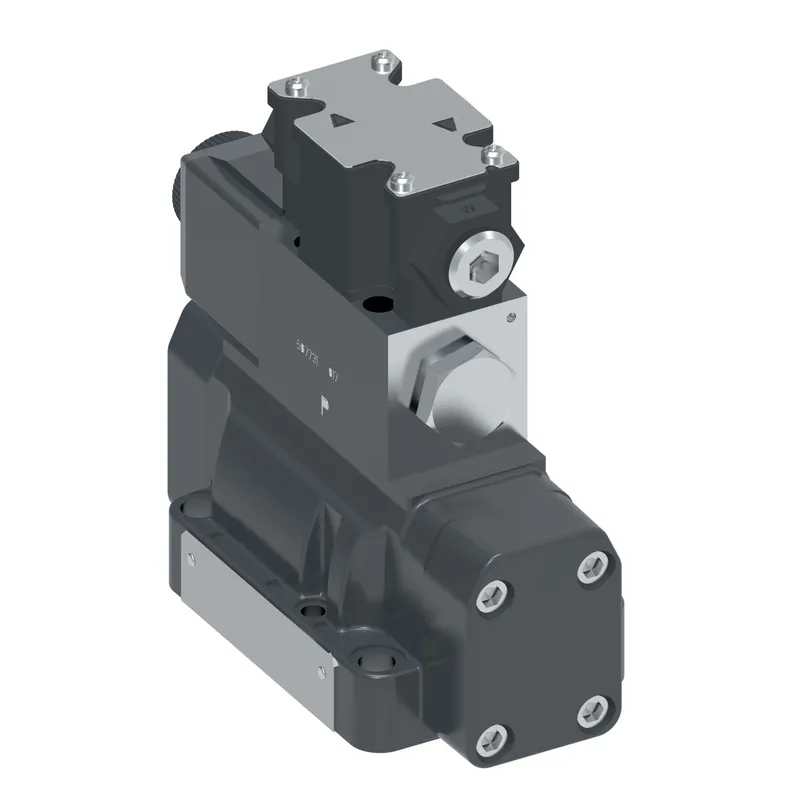

What is the Danfoss 02-343299?

Danfoss DG5S4-042-T-60-EN546, DG5S4042T60EN546, manufacturer part number 02-343299. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	60 Series
Electrical Connection	None
Ext pilot pressure	Internal
Flow rate upto GPM	60.0
Flow rate upto LPM	227.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	Internal

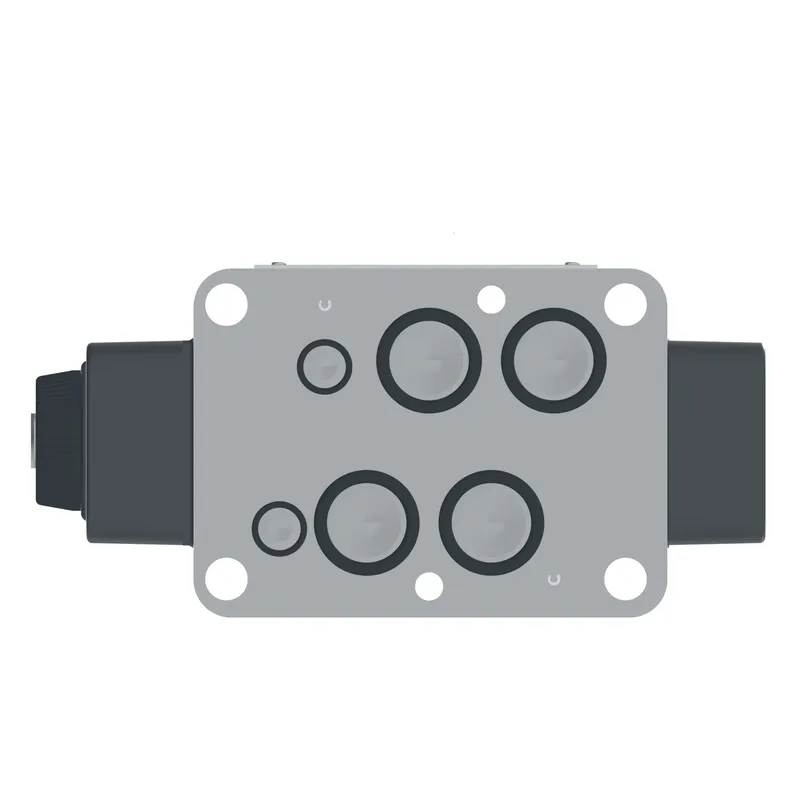

Interface	ISO4401-07
Manual override	None
Model Code 1	DG5S4042T60EN546
Performance	Standard performance
Pressure rating BAR	210
Pressure rating PSI	3000
Product height in	6.360
Product height mm	161.544
Product length in	8.480
Product length mm	215.392
Product width in	3.500
Product width mm	88.9
Seal type	Buna-N
Solenoid Energising ID	None
Special features	Gage ports, centring springs, centring washers and roll pins all removed from mainstage, 0.36 dia. restriction plug in P port andless pilot valve.
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	No spring
Stage	Two stage
Surge Suppr Damper	No
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
