Danfoss 02-341671

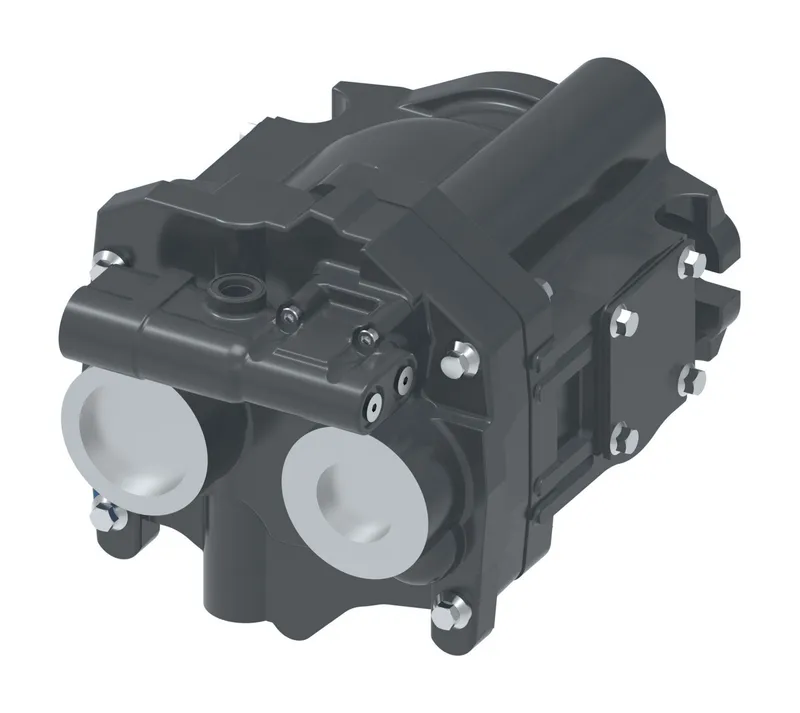

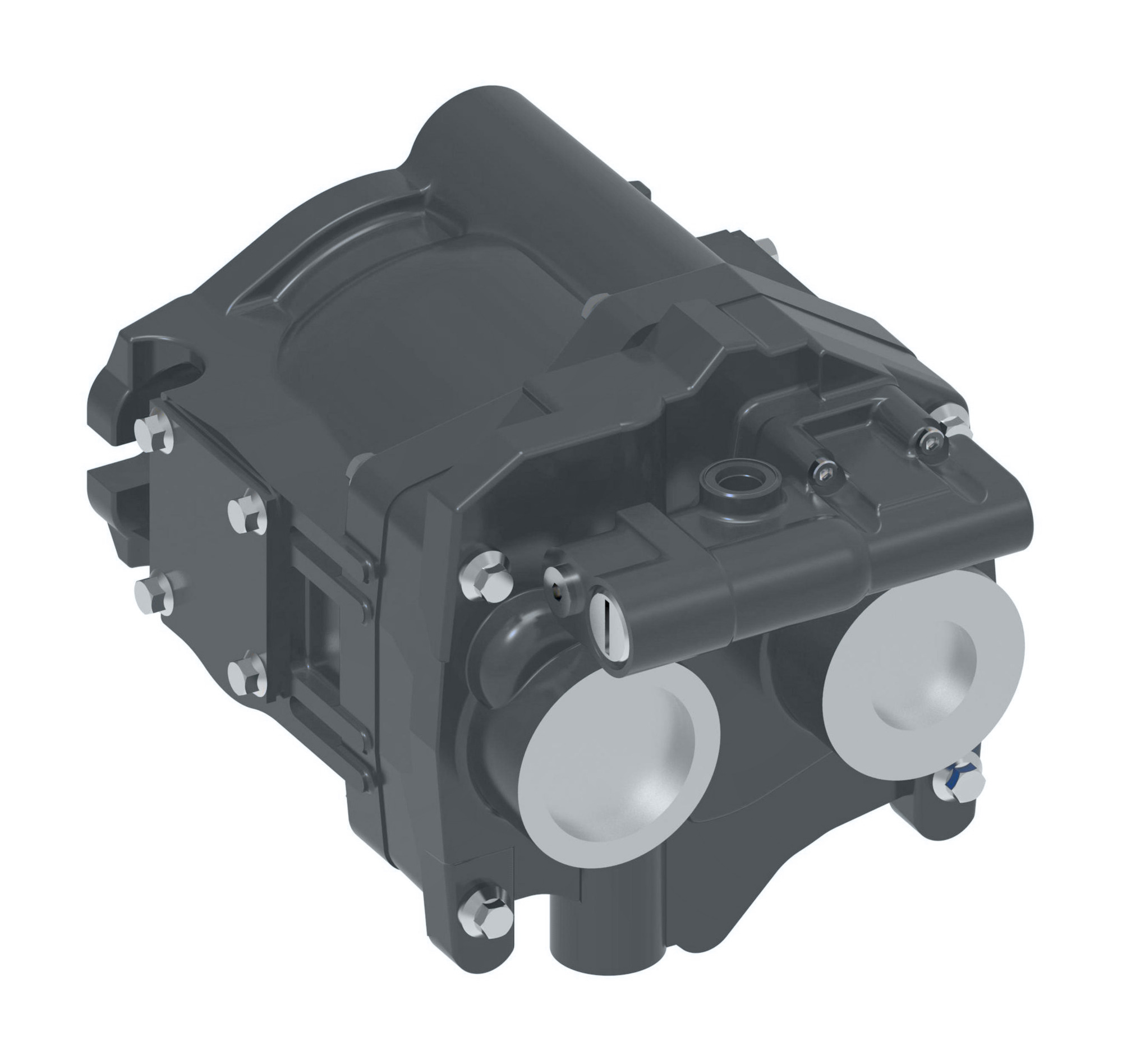

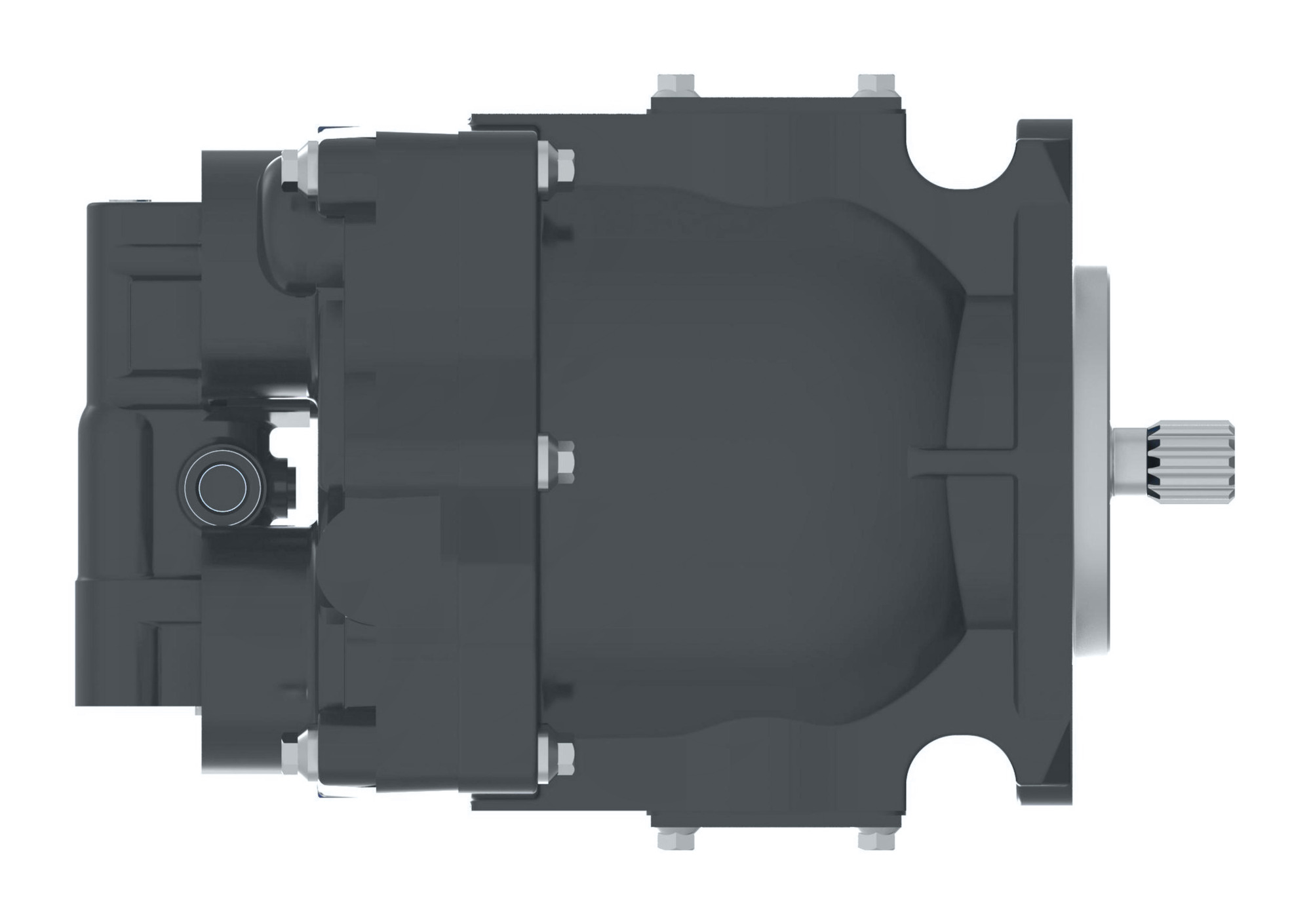

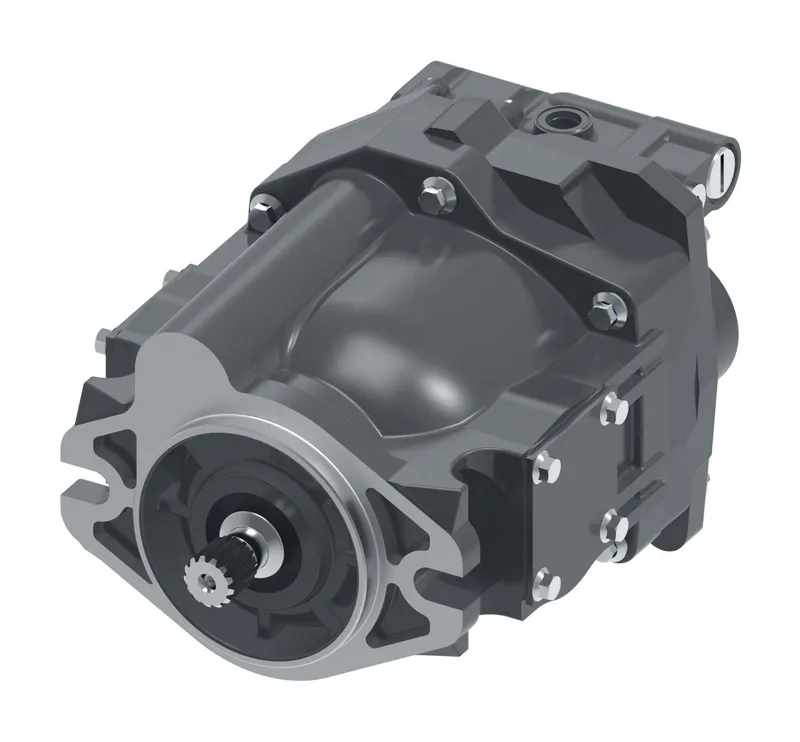

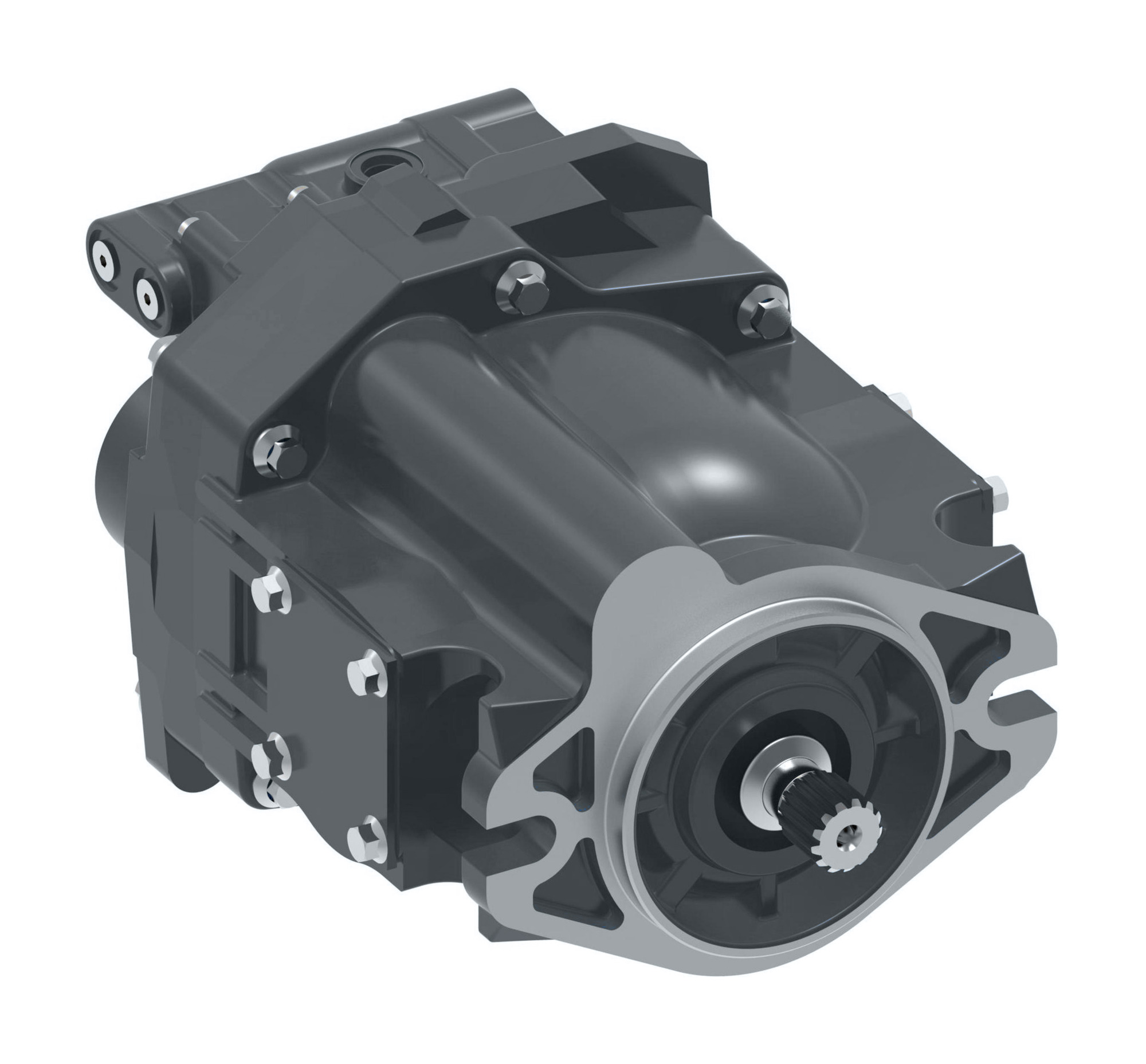

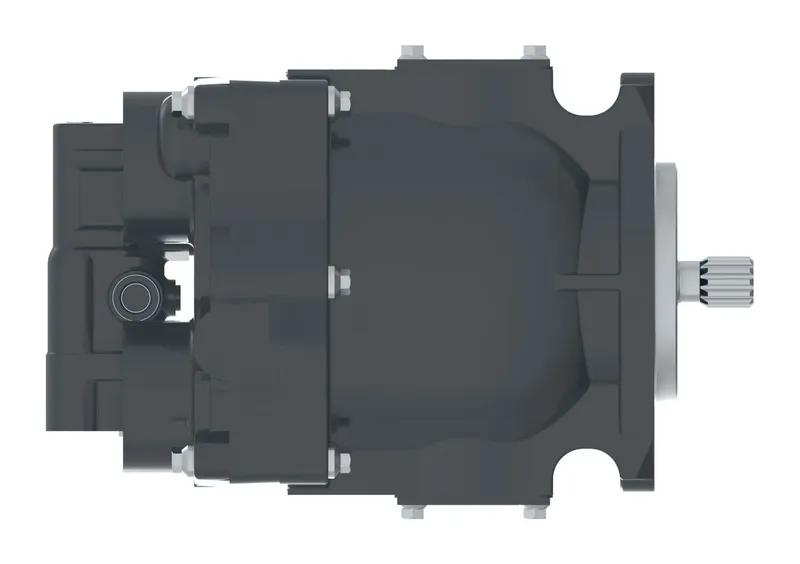

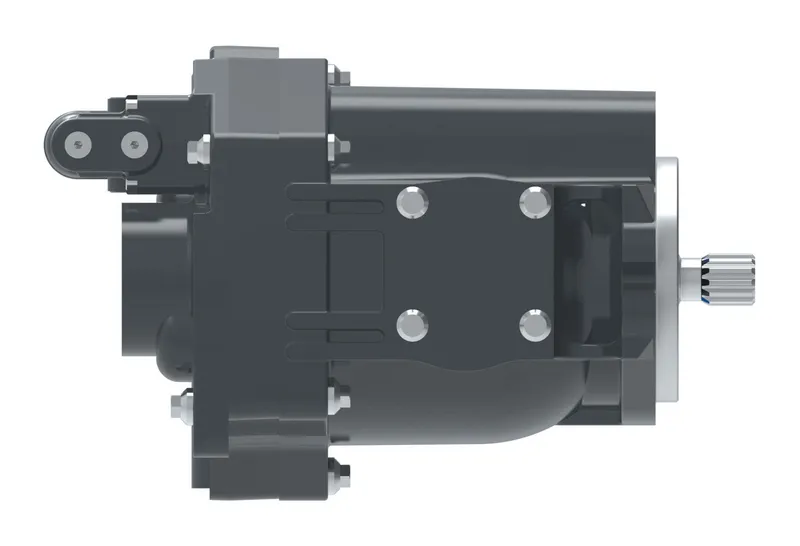

PVQ32 MBR SSNS 21 CM7 12, PVQ32 MBR SSNS 21 CM7 12
- MPN
- 02-341671
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-341671?
Danfoss PVQ32 MBR SSNS 21 CM7 12, PVQ32 MBR SSNS 21 CM7 12, manufacturer part number 02-341671. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Series | INLINE PISTON PUMP WITH VARIABLE VOLUME, QUIET SERIES |
| DISPLACEMENT | 32,9 CC/REV (2.01 cir), 140 BAR (2000 PSI) |
| Mounting Flange | VDMA "B" 2 BOLT |
| ROTATION (VIEWED FROM S END) | RIGHT HAND (CW) |
| THRU-DRIVE WITHOUT COUPLING | NO THRU-DRIVE |
| PORT TYPE AND LOCATION | SAE O-RING SIDE PORT, 1.625” INLET AND OUTLET (OPTIONAL) |
| INPUT SHAFT | SHAFT END ISO 3019/2 E25N (AVAILABLE WITH “MB” MOUNT ONLY) |
| SEALS | BUNA N, STANDARD |
| PUMP DESIGN NUMBER | 21-DESIGN NUMBER |
| CONTROL_TYPE | LOW PRESSURE COMPENSATOR, INDICATING FACTORY SETTING OF 70 BAR (1000 PSI); RANGE IS 02-10 IN TENS OF BAR (350-2000 PSI). |
| CONTROL OPTION | WITHOUT ADJUSTABLE MAXIMUM DISPLACEMENT STOP (STANDARD) |
| CONTROL DESIGN | C14, C21, CM7, C**D AND CM**D |
| SPECIAL PUMP OPTION SUFFIXES | NO SPECIAL PUMP SUFFIXES |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | PVQ 32cc Pump |
| Model Code 1 | PVQ32 MBR SSNS 21 CM7 12 |
02-341671: frequently asked questions
When can 02-341671 be shipped?
02-341671 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-341671 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-341671 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-341671, subject to availability and destination.
