Danfoss 02-341668
PVQ32-B2R-A9-SS1S-21-C14-12, PVQ32-B2R-A9-SS1S-21-C14-12
- MPN
- 02-341668
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

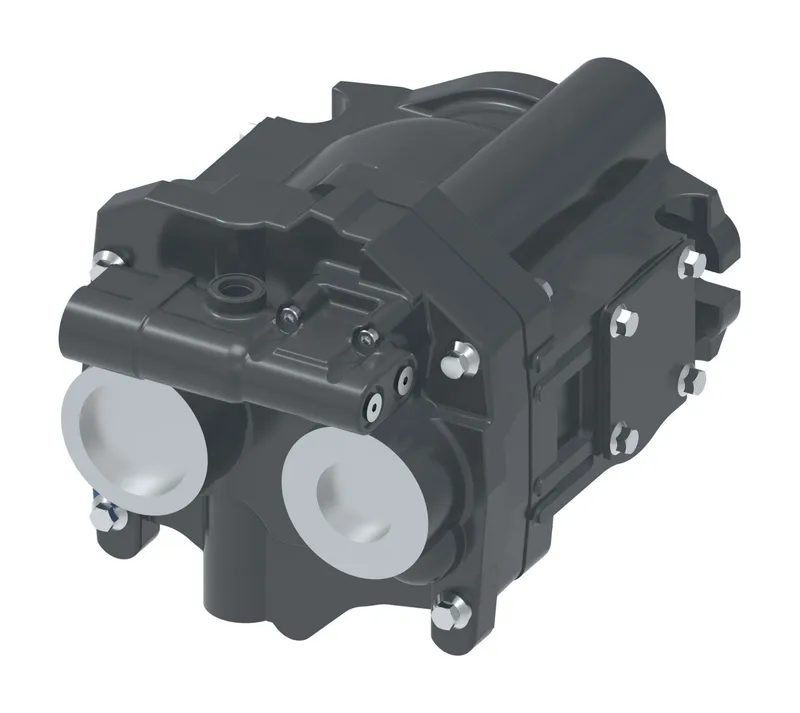

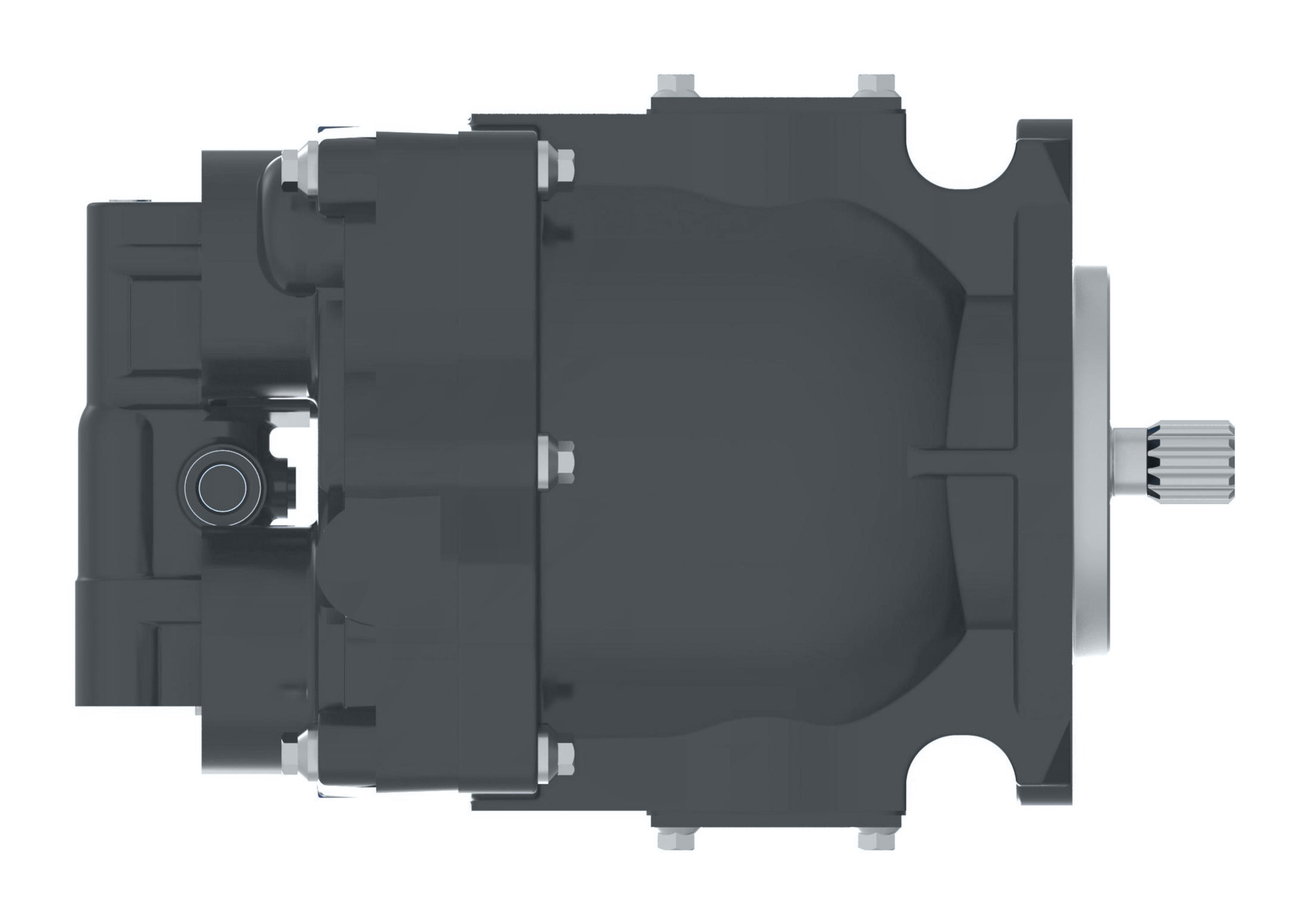

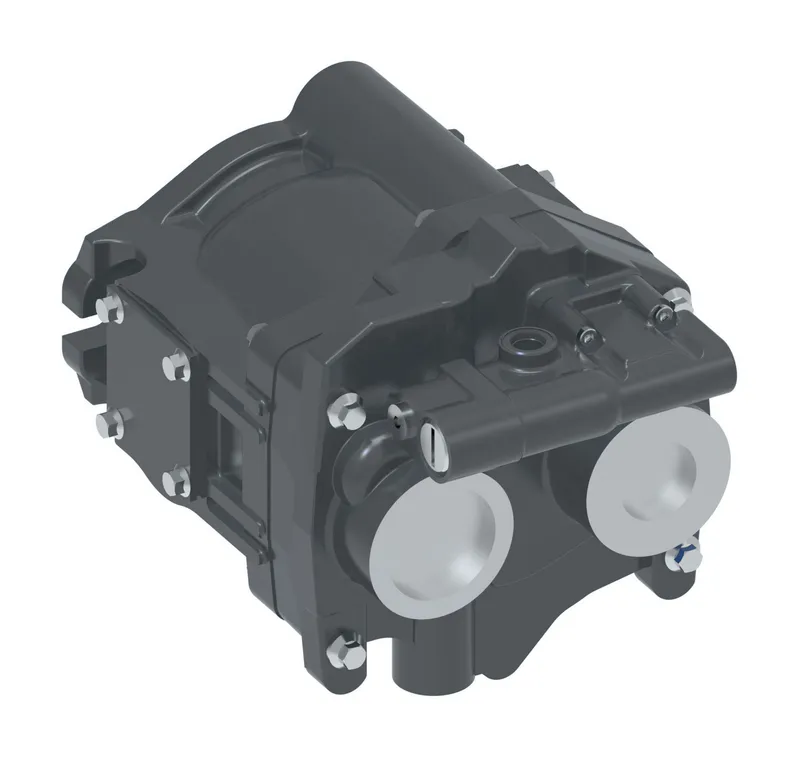

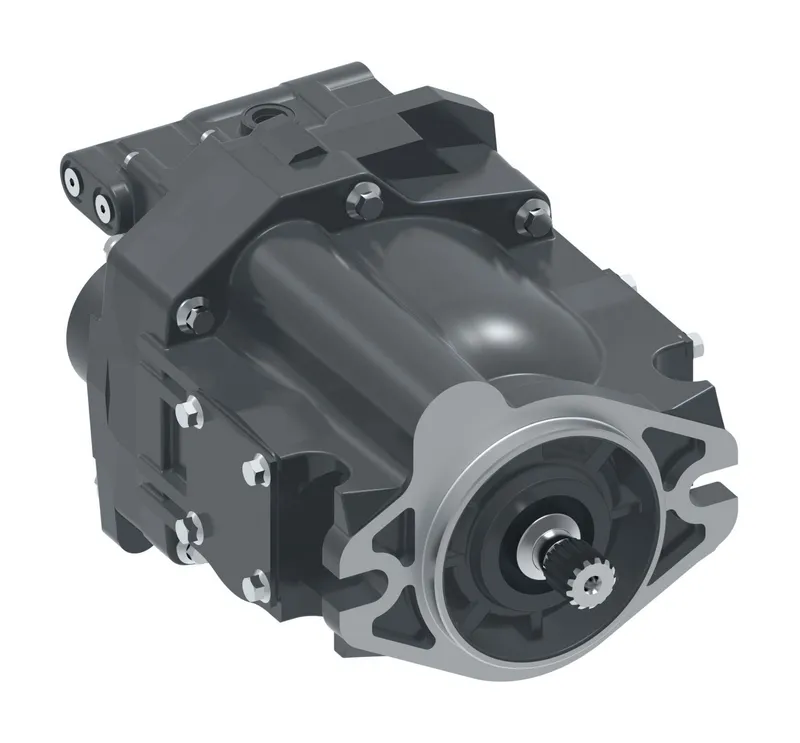

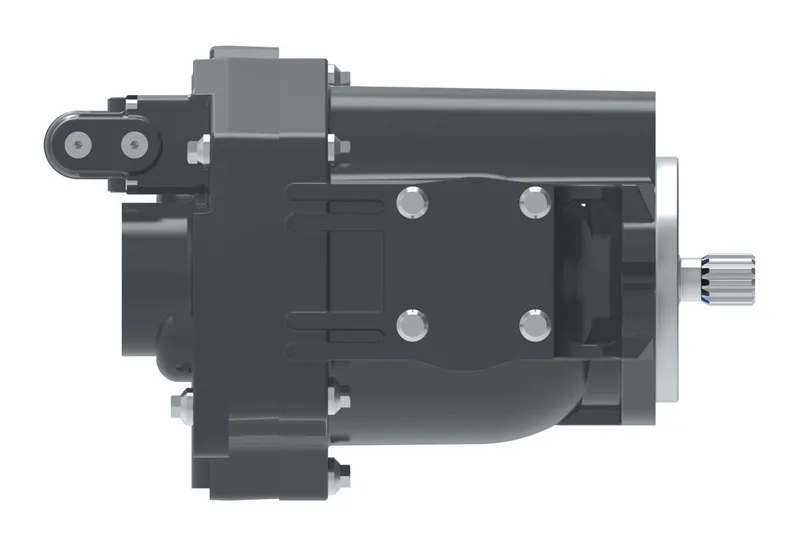

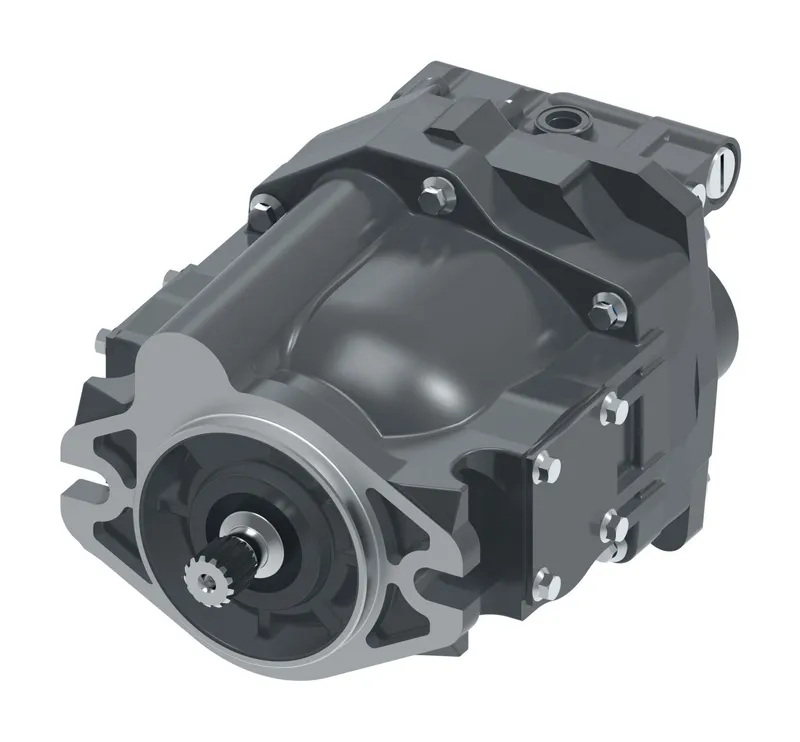

What is the Danfoss 02-341668?
Danfoss PVQ32-B2R-A9-SS1S-21-C14-12, PVQ32-B2R-A9-SS1S-21-C14-12, manufacturer part number 02-341668. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Series | INLINE PISTON PUMP WITH VARIABLE VOLUME, QUIET SERIES |
| DISPLACEMENT | 32,9 CC/REV (2.01 cir), 140 BAR (2000 PSI) |
| Mounting Flange | SAE "B" 2 BOLT |
| ROTATION (VIEWED FROM S END) | RIGHT HAND (CW) |
| THRU-DRIVE WITHOUT COUPLING | SAE J744 82-2 (SAE A) W/9T SPLINE WITH SIDE PORTS ONLY) |
| PORT TYPE AND LOCATION | SAE O-RING SIDE PORT, 1.625” INLET AND OUTLET (OPTIONAL) |
| INPUT SHAFT | STRAIGHT KEYED SAE “B” MODIFIED, 2.31'' LONG |
| SEALS | BUNA N, STANDARD |
| PUMP DESIGN NUMBER | 21-DESIGN NUMBER |
| CONTROL_TYPE | PRESSURE COMPENSATOR, INDICATING FACTORY SETTING OF 138 BAR (2000 PSI); RANGE IS 02-14 IN TENS OF BAR (350-2000 PSI). |
| CONTROL OPTION | WITHOUT ADJUSTABLE MAXIMUM DISPLACEMENT STOP (STANDARD) |
| CONTROL DESIGN | C14, C21, CM7, C**D AND CM**D |
| SPECIAL PUMP OPTION SUFFIXES | NO SPECIAL PUMP SUFFIXES |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | PVQ 32cc Pump |
| Model Code 1 | PVQ32-B2R-A9-SS1S-21-C14-12 |
02-341668: frequently asked questions
When can 02-341668 be shipped?
02-341668 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-341668 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-341668 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-341668, subject to availability and destination.
