Danfoss 02-337867

Industrial valve

MPN
02-337867
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-337867?

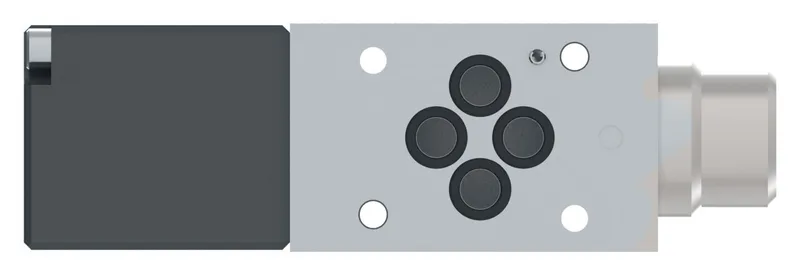

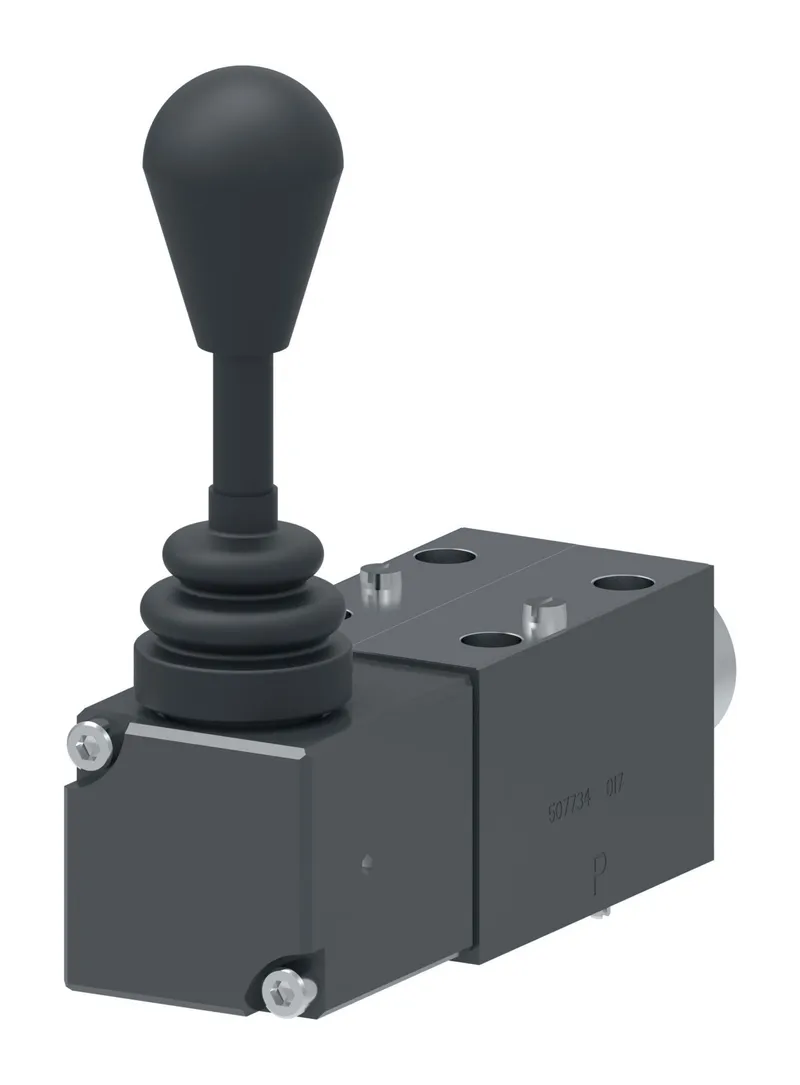

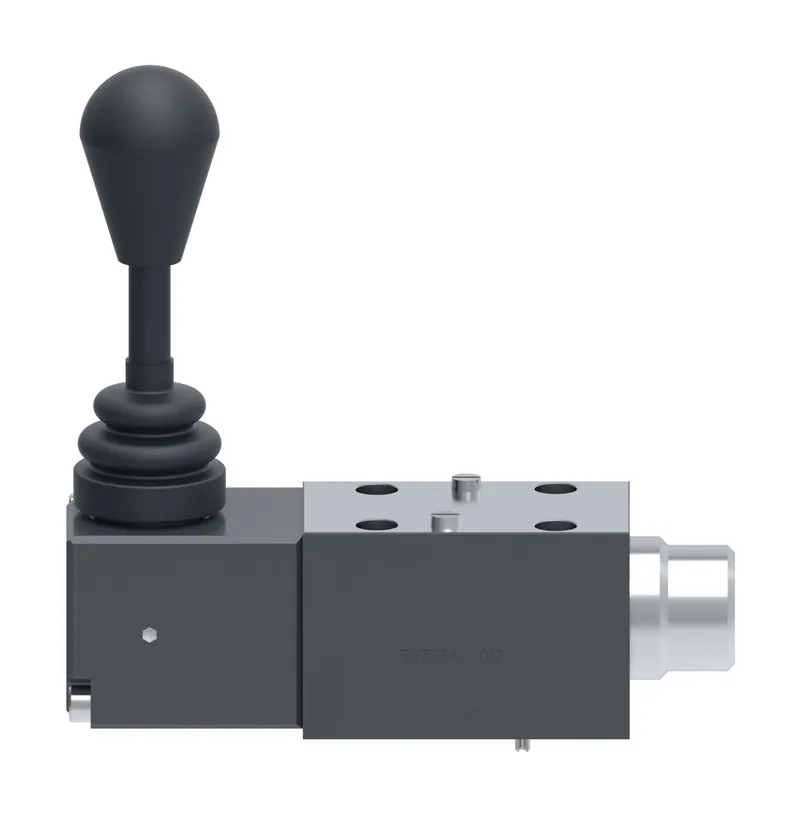

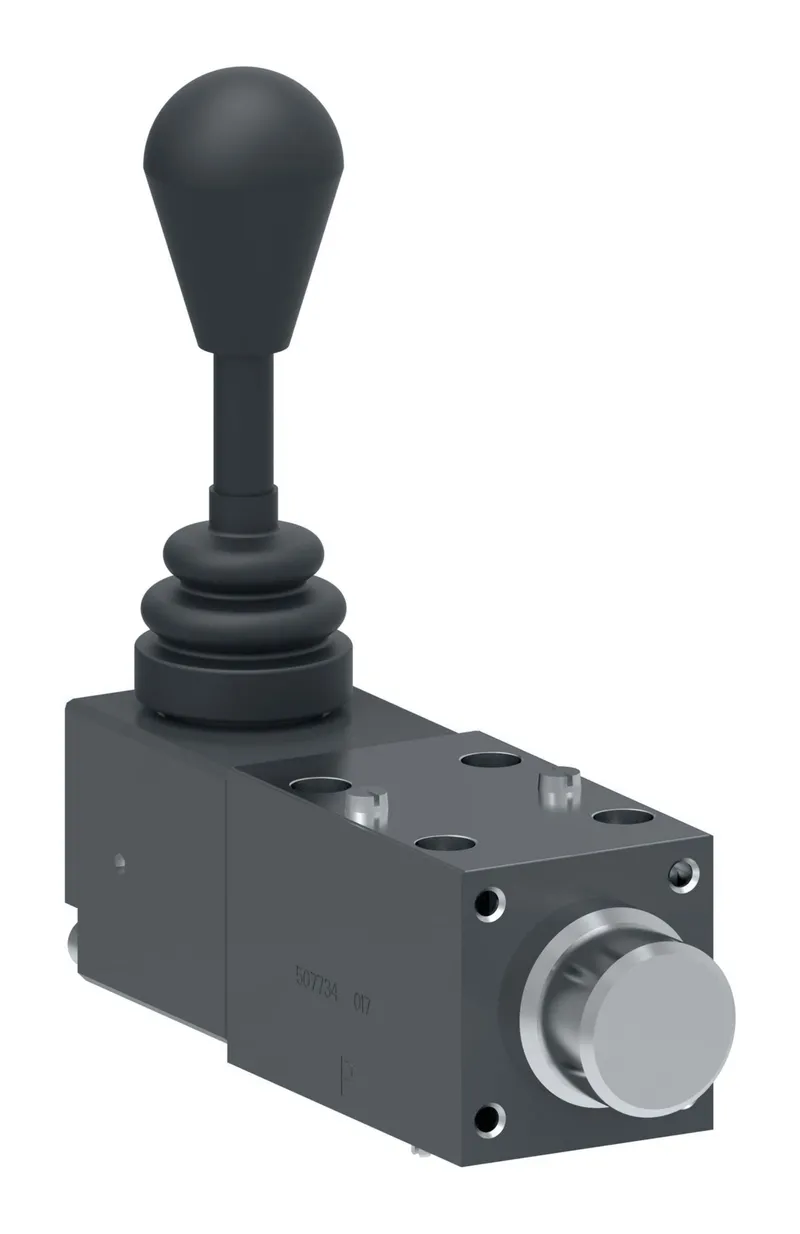

Danfoss DG17V-3-6AL-60-EN521, DG17V36AL60EN521, manufacturer part number 02-337867. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeLever/knob operated
BrandVickers by Danfoss
Coil RatingNone
Design Series60 Series
Electrical ConnectionNone
Flow rate upto GPM20.0
Flow rate upto LPM75.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Indicator LightNo
InterfaceISO4401-03
Manual overrideNone
Model Code 1DG17V36AL60EN521
PerformanceStandard performance
Pressure rating BAR350
Pressure rating PSI5000
Product height in5.960
Product length in5.960
Product length mm151.384
Product width in1.810
Product width mm45.974
Seal typeWATER GLYCOL
Solenoid Energising IDNone
Special featuresHydraulic pilot detent
Spool Position MonitorNo
Spool TypeSpool 6
Spring ArrangementSpring offset end to end LH
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR7.0
Tank port rating PSI100
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C65
Working temp max F150
Working temp min C-18
Working temp min F0

02-337867: frequently asked questions

When can 02-337867 be shipped?

02-337867 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-337867 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-337867 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-337867, subject to availability and destination.
