Danfoss 02-337857

DG5V-10-W-8C-E-VM-WL-B-1 USE 02-402971, DG5V10W8CEVMWLB10

MPN
02-337857
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

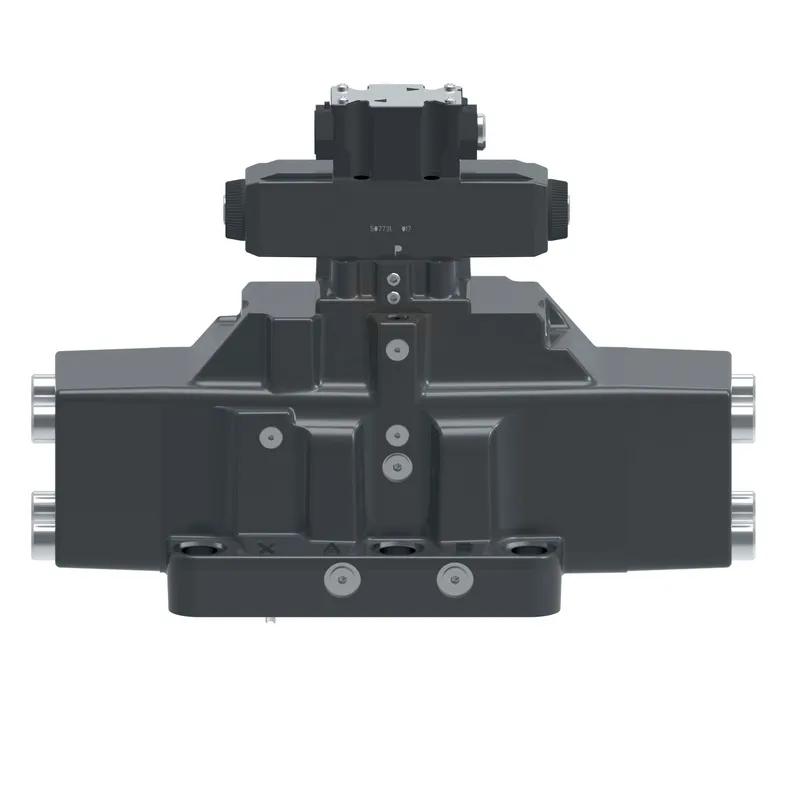

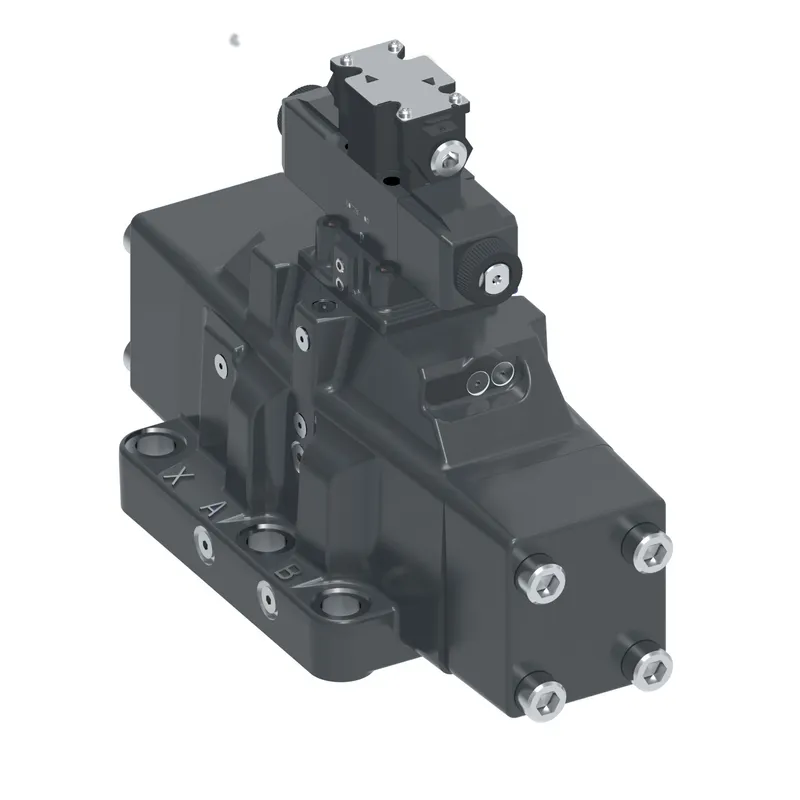

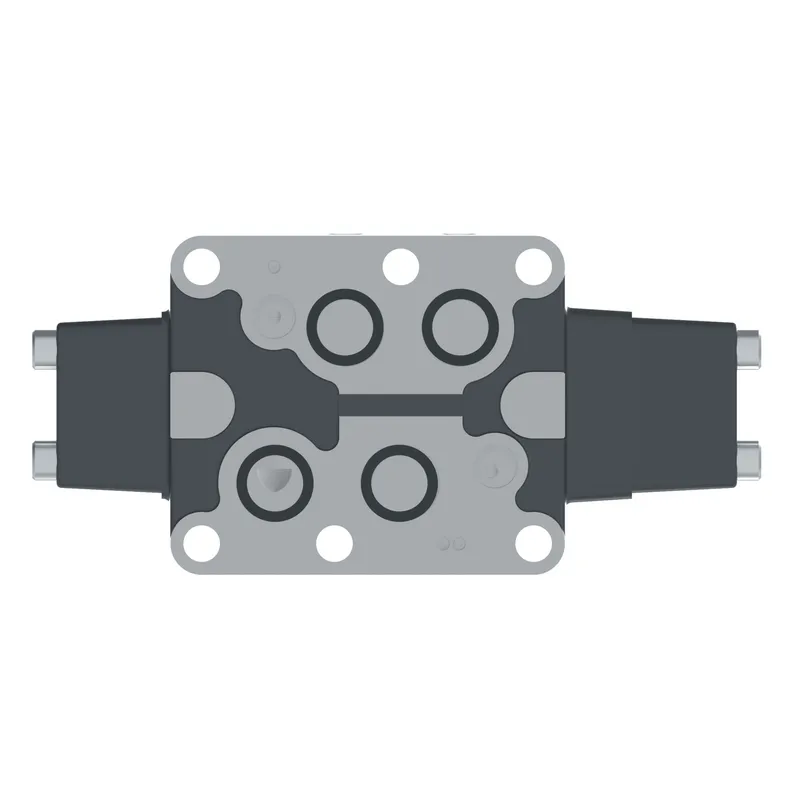

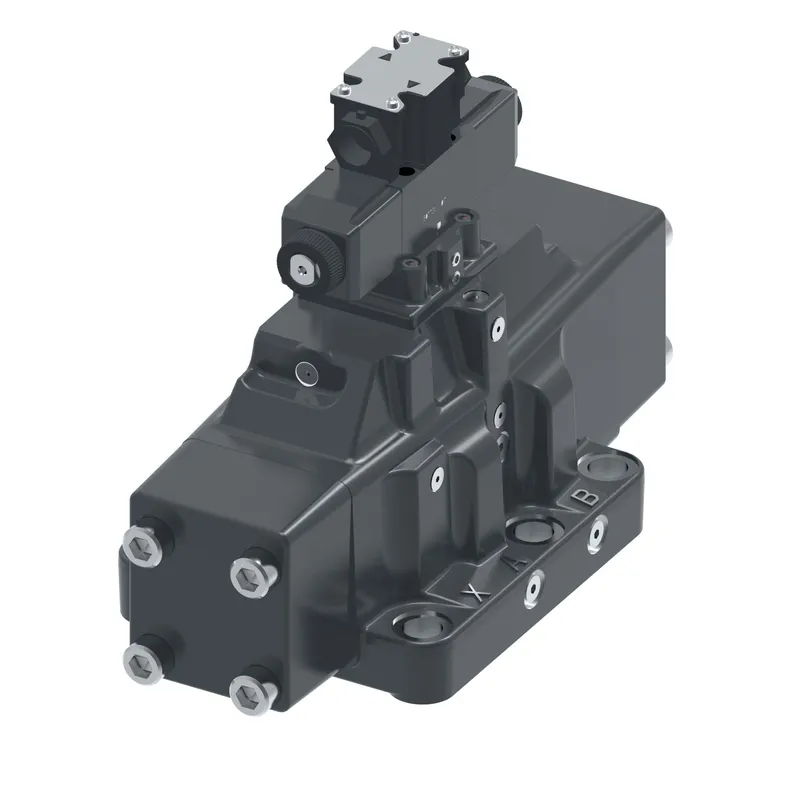

What is the Danfoss 02-337857?

Danfoss DG5V-10-W-8C-E-VM-WL-B-1 USE 02-402971, DG5V10W8CEVMWLB10, manufacturer part number 02-337857. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Design Series10 Series
Ext pilot pressureExternal
Flow rate upto GPM290.0
Flow rate upto LPM1100.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.4375 - 20 UNF, SAE Thread
Indicator LightYes
Int pilot drainExternal
InterfaceISO4401-10
Model Code 1DG5V10W8CEVMWLB10
Pressure rating BAR350
Pressure rating PSI5000
Product height in10.020
Product height mm254.508
Product length in16.500
Product length mm419.100
Product width in7.500
Product width mm190.5
Seal typeBuna-N
Solenoid Energising IDSol A port A/Sol B port B
Spool TypeSpool 8
Spring ArrangementSpring centred
StageTwo stage
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve

02-337857: frequently asked questions

When can 02-337857 be shipped?

02-337857 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-337857 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-337857 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-337857, subject to availability and destination.
