Danfoss 02-324329

MPN: 02-324329
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-324329?

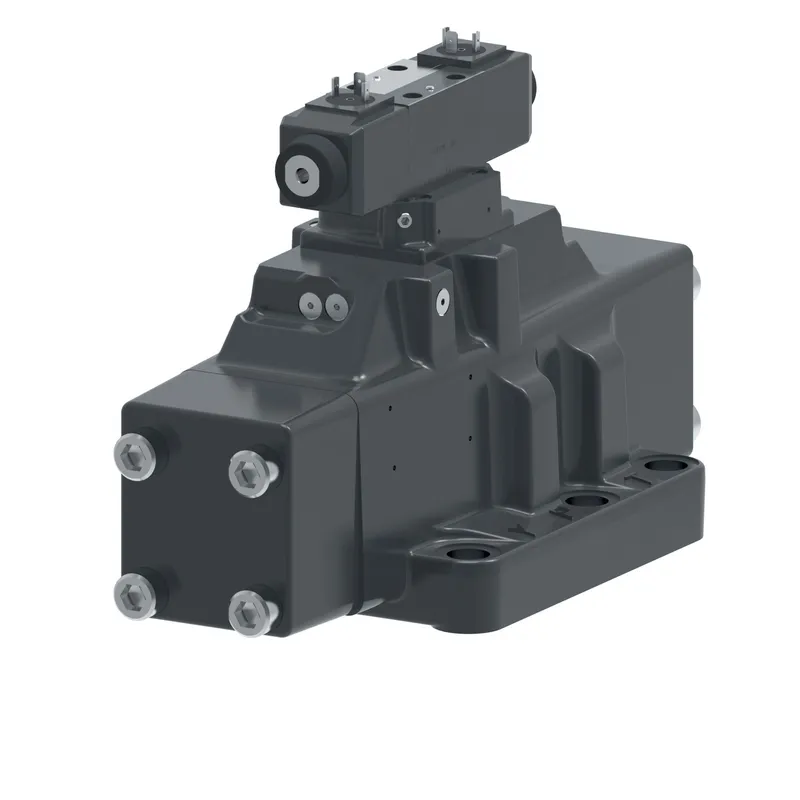

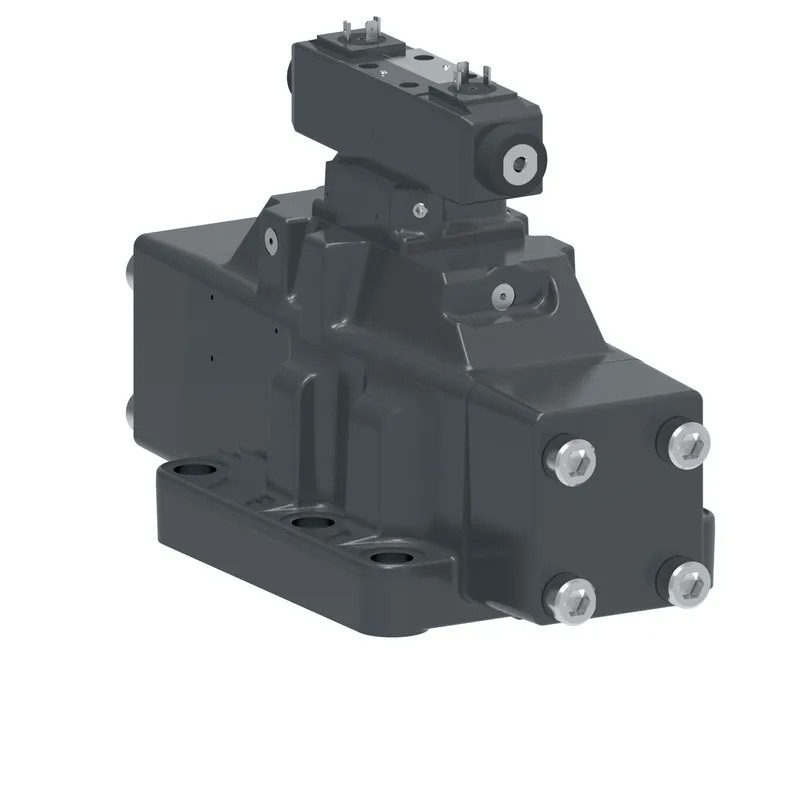

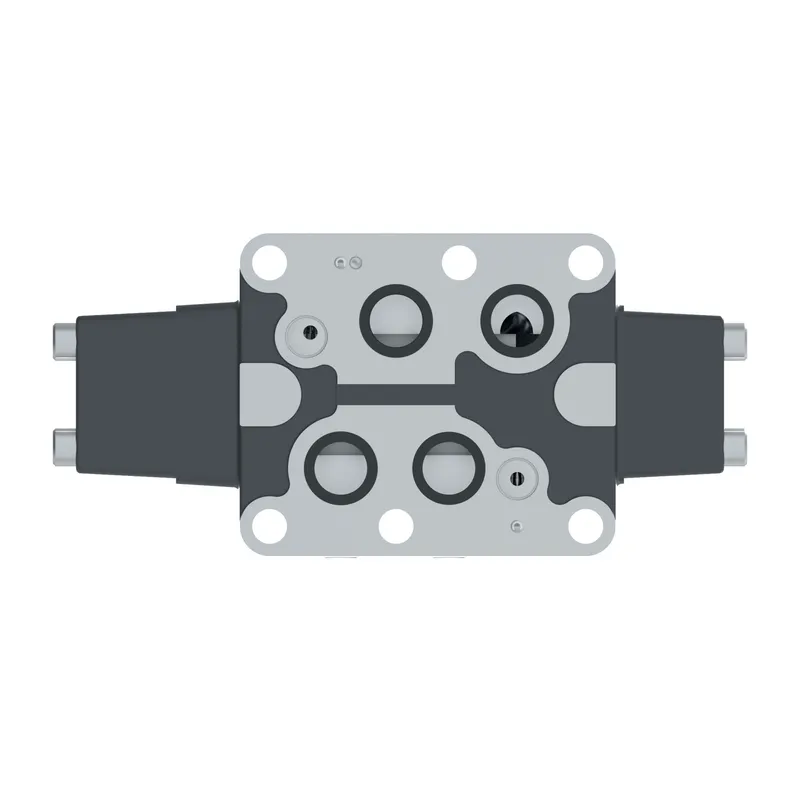

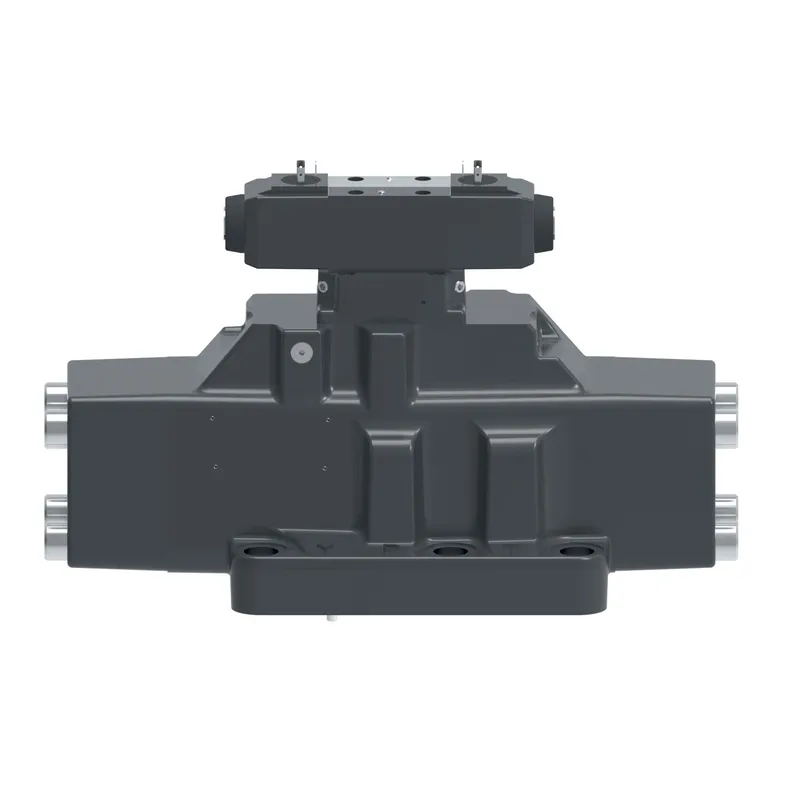

Danfoss DG5V 10 H 8C E VM U H 10, manufacturer part number 02-324329. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Design Series	10 Series
Ext pilot pressure	External
Flow rate upto GPM	290.0
Flow rate upto LPM	1100.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Int pilot drain	External
Interface	ISO4401-10
Manual override	Plain
Performance	High performance
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	9.870
Product height mm	250.698
Product length in	16.500
Product length mm	419.100
Product width in	7.500
Product width mm	190.5
Seal type	Buna-N
Solenoid Energising ID	Sol A port A/Sol B port B
Spool Type	Spool 8
Spring Arrangement	Spring centred
Stage	Two stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve

02-324329: frequently asked questions

When can 02-324329 be shipped?

02-324329 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-324329 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-324329 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-324329, subject to availability and destination.
