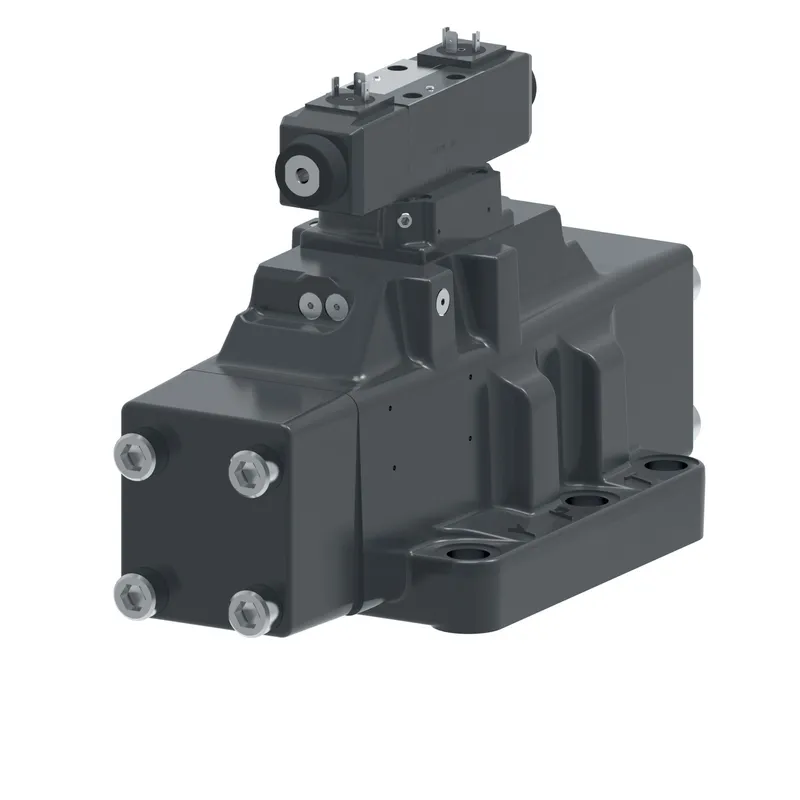

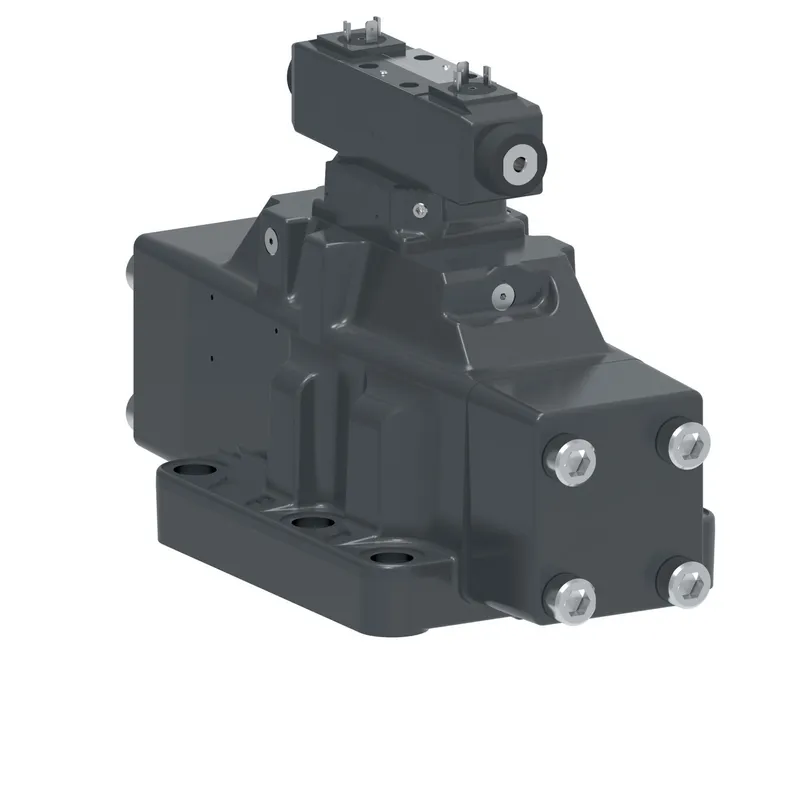

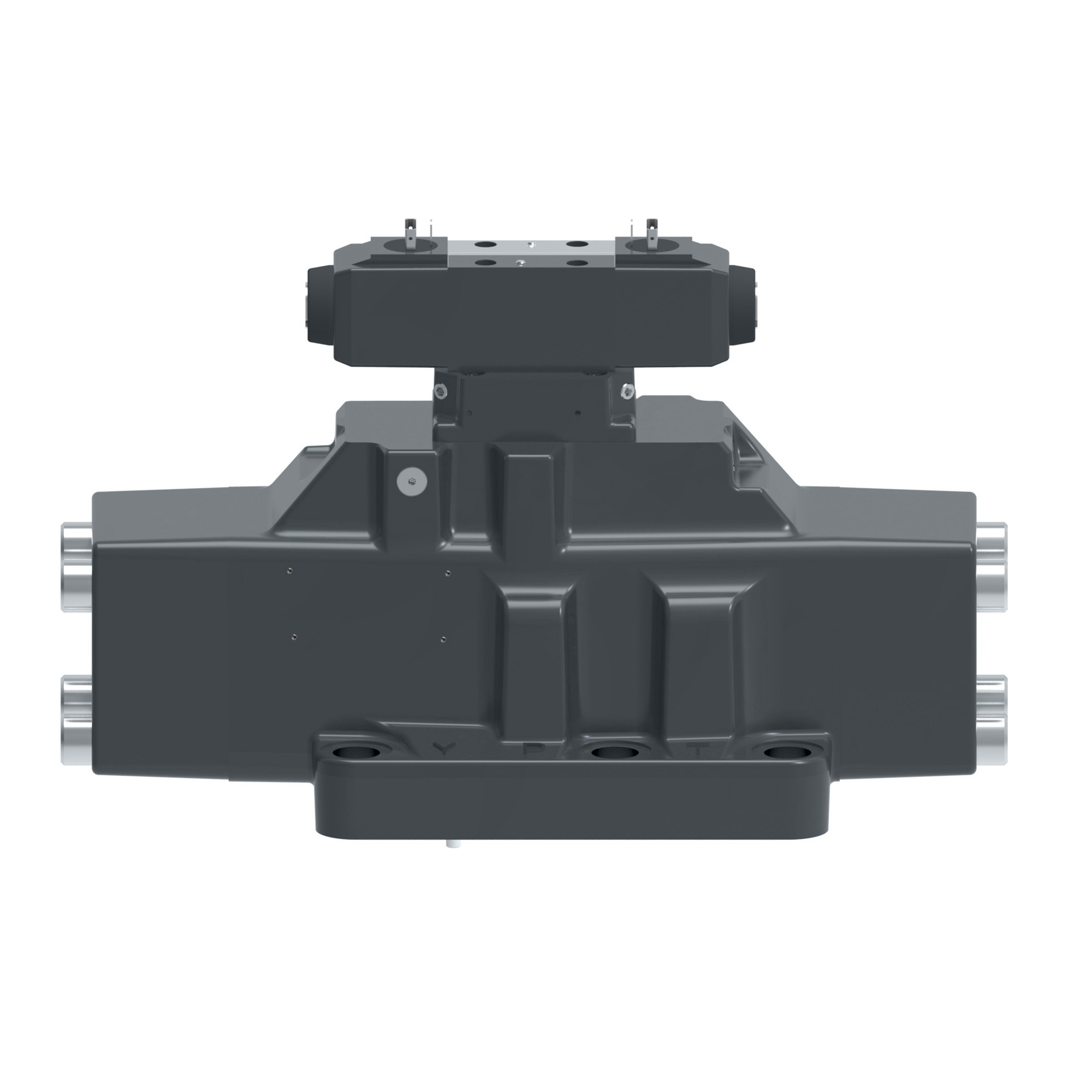

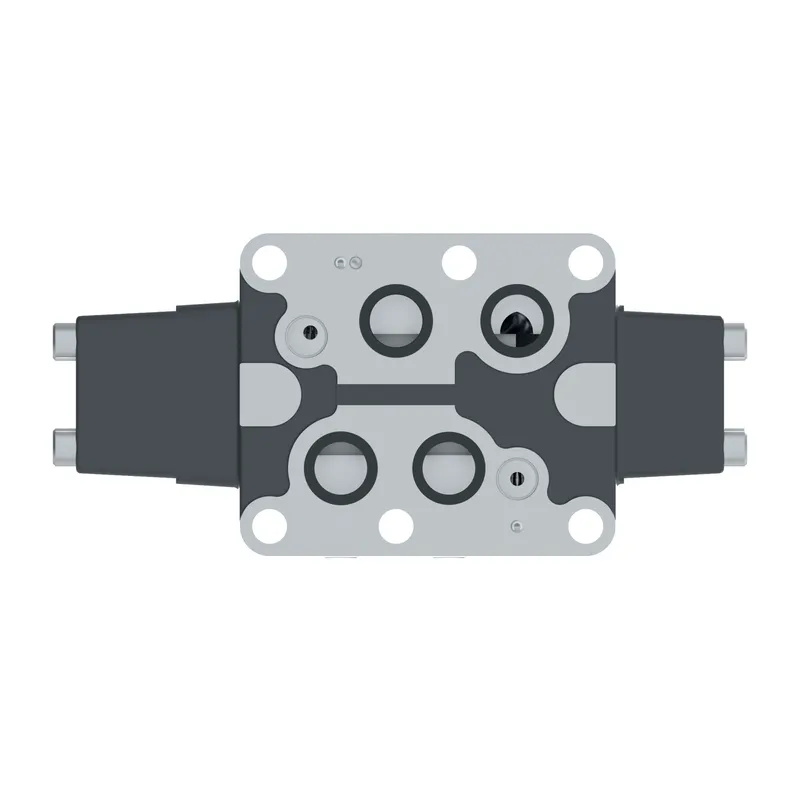

Danfoss 02-324304

DG5V-10-H-33C-T-M-U-H-10, DG5V10H33CTMUH10

MPN: 02-324304
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-324304?

Danfoss DG5V-10-H-33C-T-M-U-H-10, DG5V10H33CTMUH10, manufacturer part number 02-324304. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	10 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	Internal
Flow rate upto GPM	290.0
Flow rate upto LPM	1100.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-10
Manual override	Plain
Model Code	DG5V10H33CTMUH10
Performance	High performance
Power Consumption	30 watt
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	9.870
Product height mm	250.698
Product length in	16.500
Product length mm	419.100
Product width in	7.500
Product width mm	190.5
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 33
Spring Arrangement	Spring centred
Stage	Two stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
