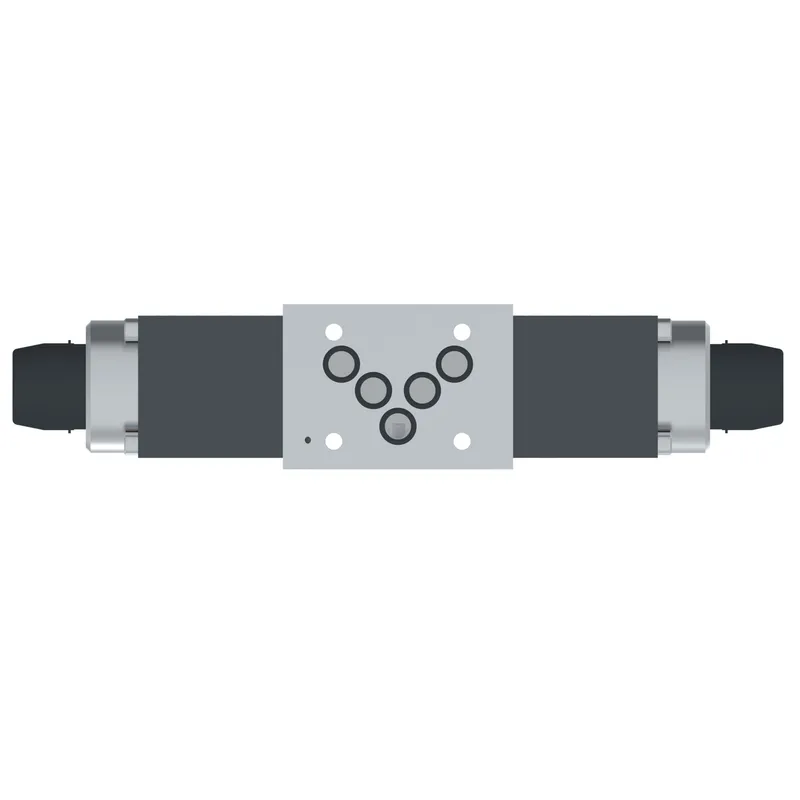

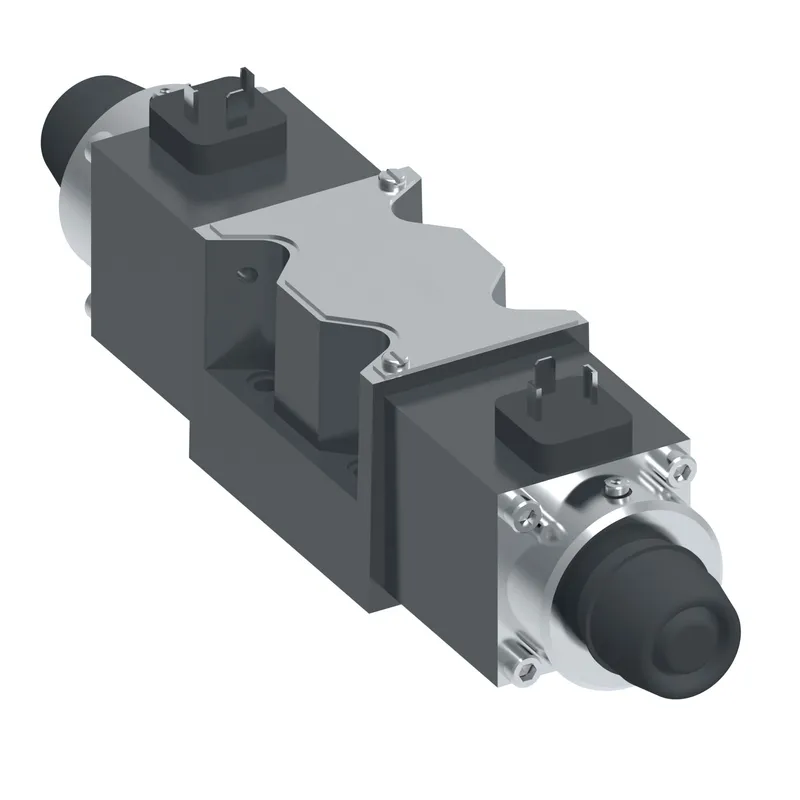

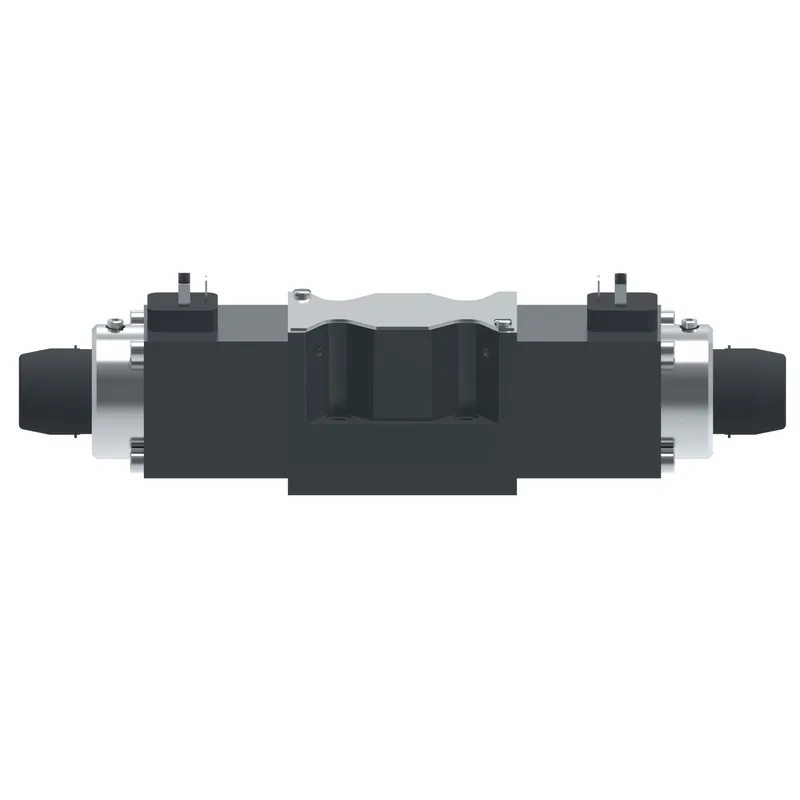

Danfoss 02-323887

KDG4V 5 2C50N Z M U1 H730, KDG4V52C50NZMU1H730

MPN: 02-323887
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-323887?

Danfoss KDG4V 5 2C50N Z M U1 H730, KDG4V52C50NZMU1H730, manufacturer part number 02-323887. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	50.00
A Port flow USGPM	13.20
Actuation Type	Solenoid controlled
B Port flow LPM	50.00
B Port flow USGPM	13.20
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	30 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	None
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Meter in / meter out
Model Code 1	KDG4V52C50NZMU1H730
On board electronics	No
Performance	Standard
Product height in	4.180
Product height mm	106.172
Product length in	10.040
Product length mm	255.016
Product width in	2.760
Product width mm	70.104
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210.0
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
