Danfoss 02-323885

F6 DGMFN 3 Y A2W B2W 41, F6DGMFN3YA2WB2W41

MPN: 02-323885
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-323885?

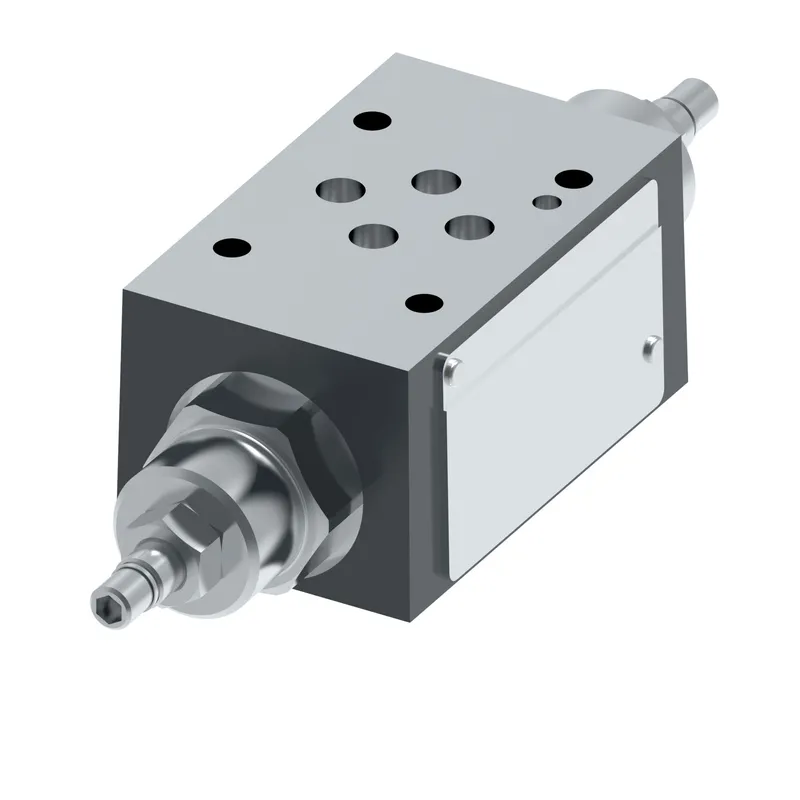

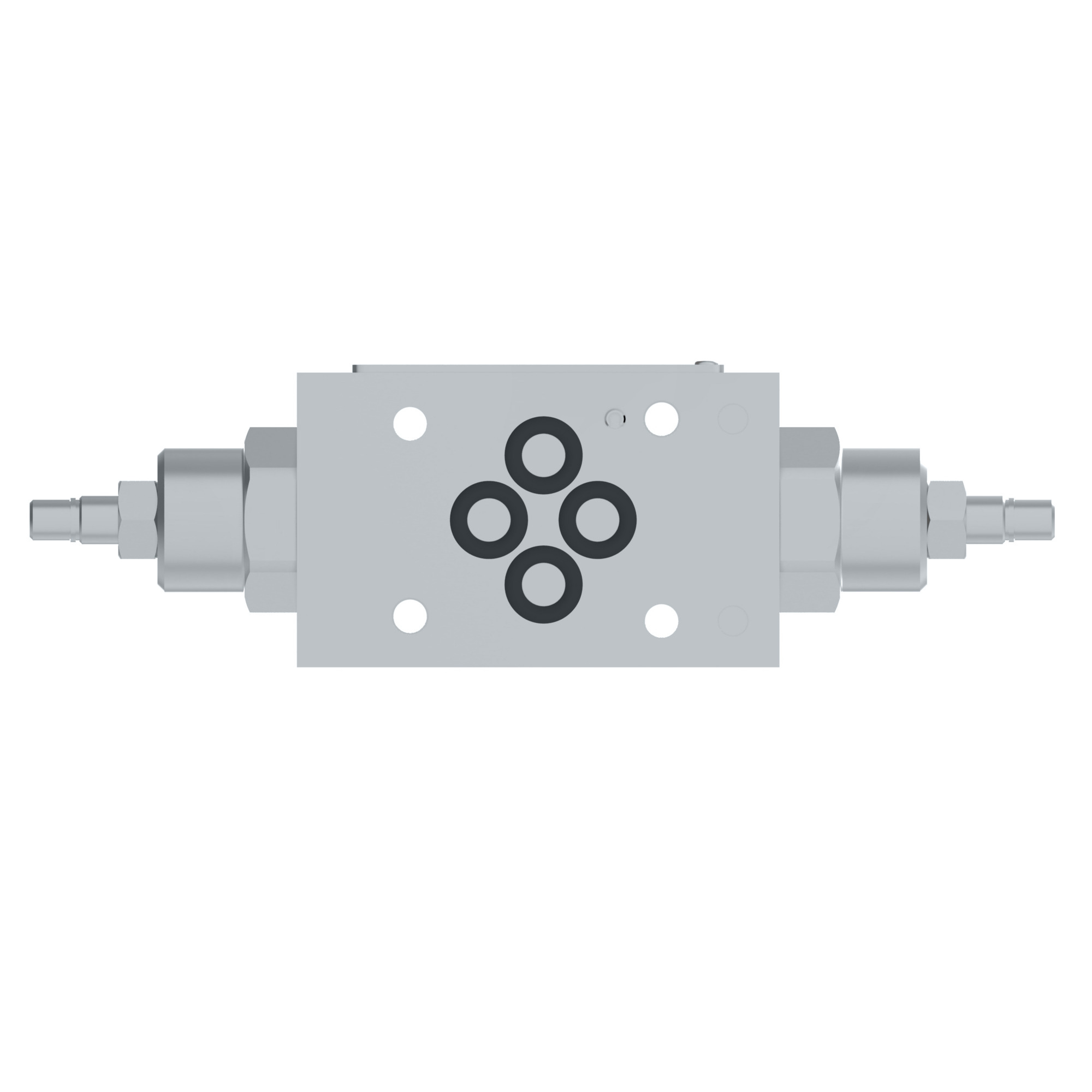

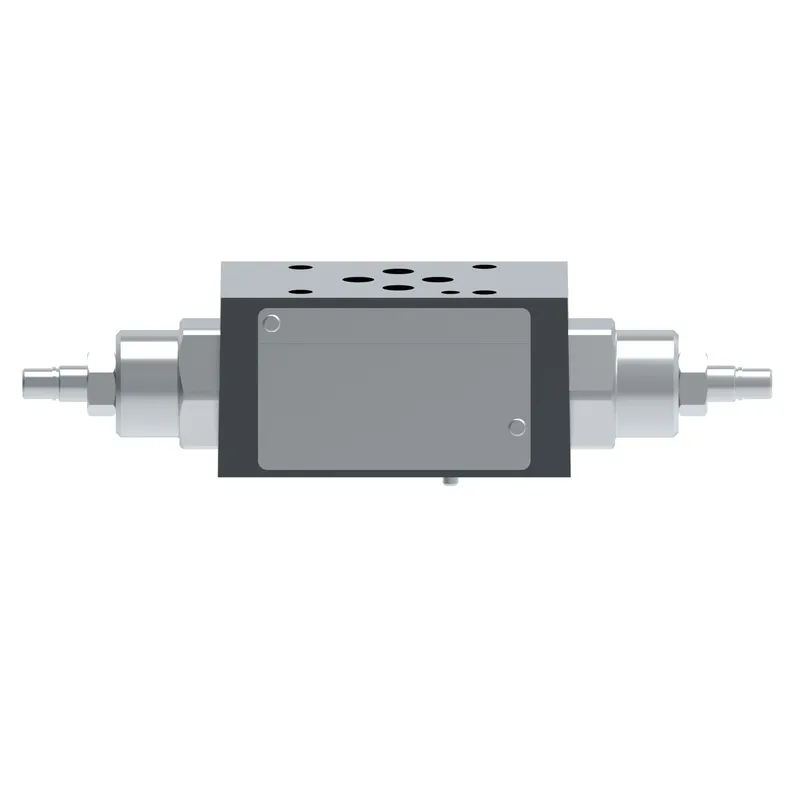

Danfoss F6 DGMFN 3 Y A2W B2W 41, F6DGMFN3YA2WB2W41, manufacturer part number 02-323885. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Screw and locknut
Brand	Vickers by Danfoss
Control type 1	Standard control
Control type 2	Standard control
Design Series	41 Series
Direction of flow	Meter-out control
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-03
Location control function 1	Line A
Location control function 2	Line B
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	F6DGMFN3YA2WB2W41
Performance	Standard
Product height in	1.570
Product height mm	39.878
Product length in	6.600
Product length mm	167.640
Product width in	1.870
Product width mm	47.498
Seal type	Buna-N
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Flow control valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
