Danfoss 02-321311

Industrial valve

MPN: 02-321311
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-321311?

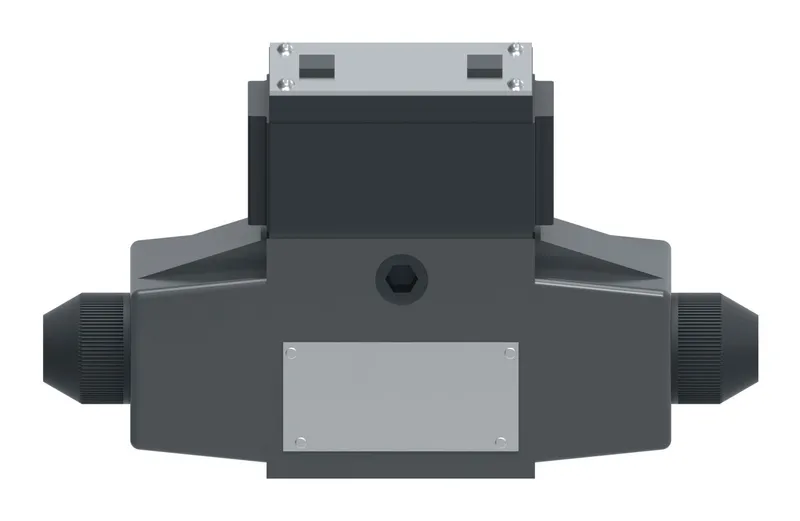

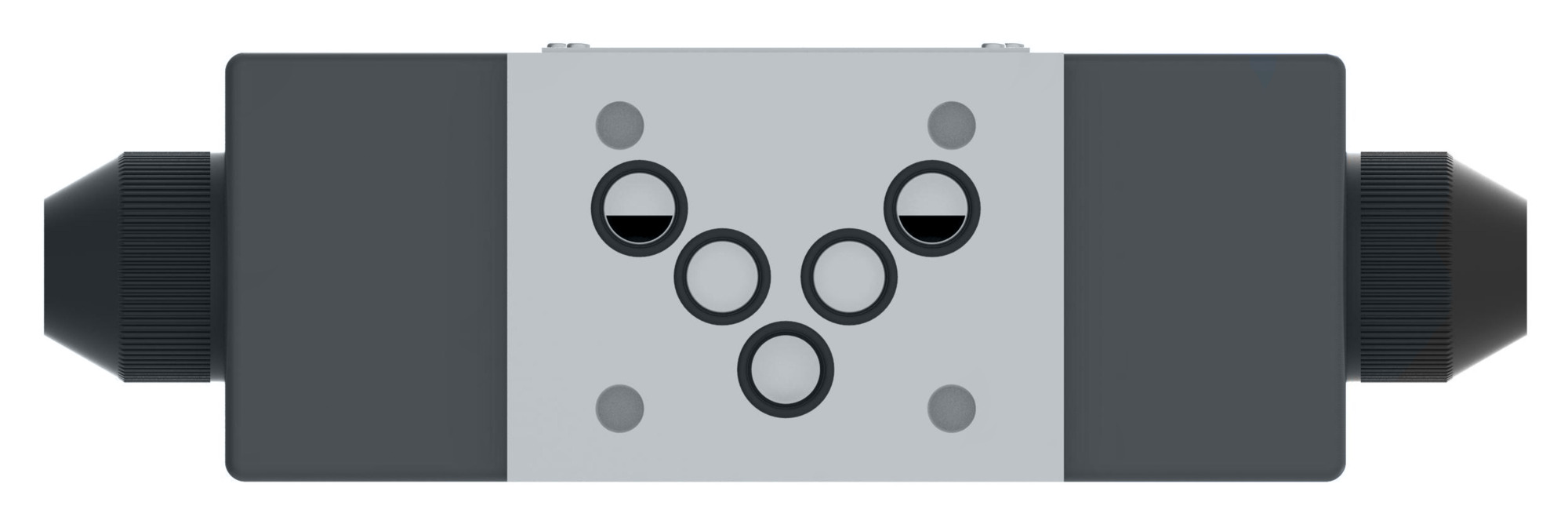

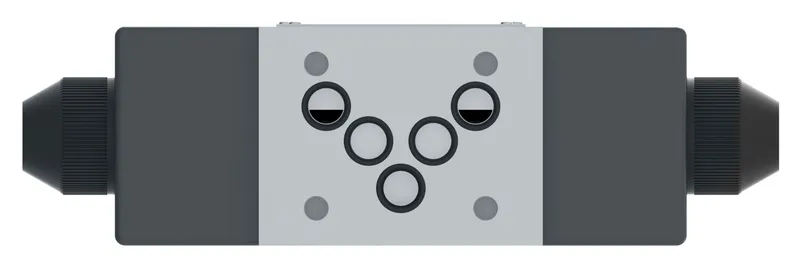

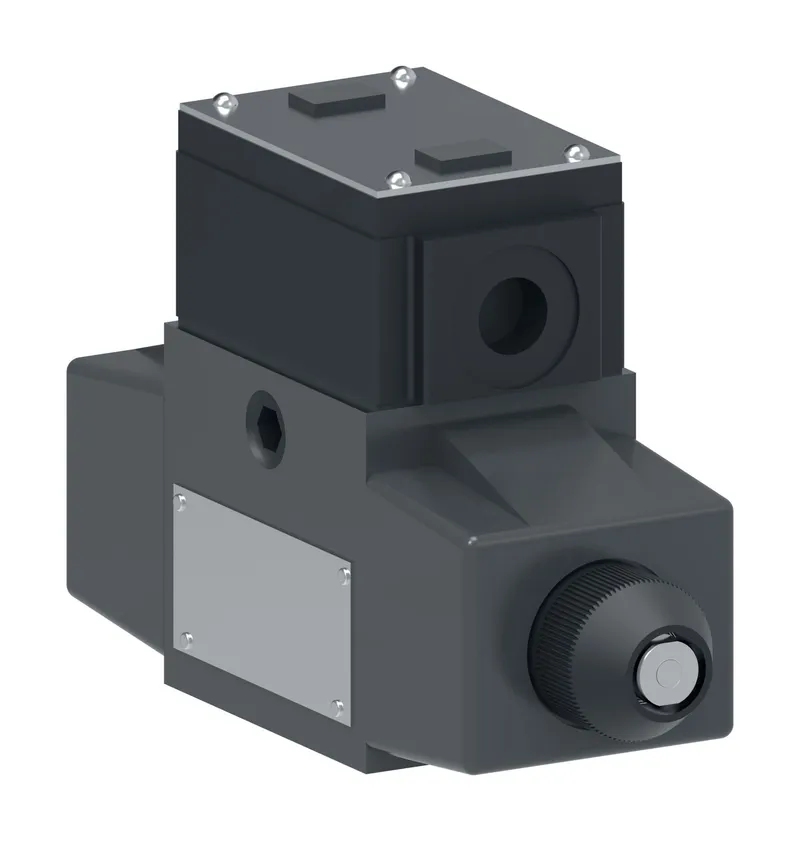

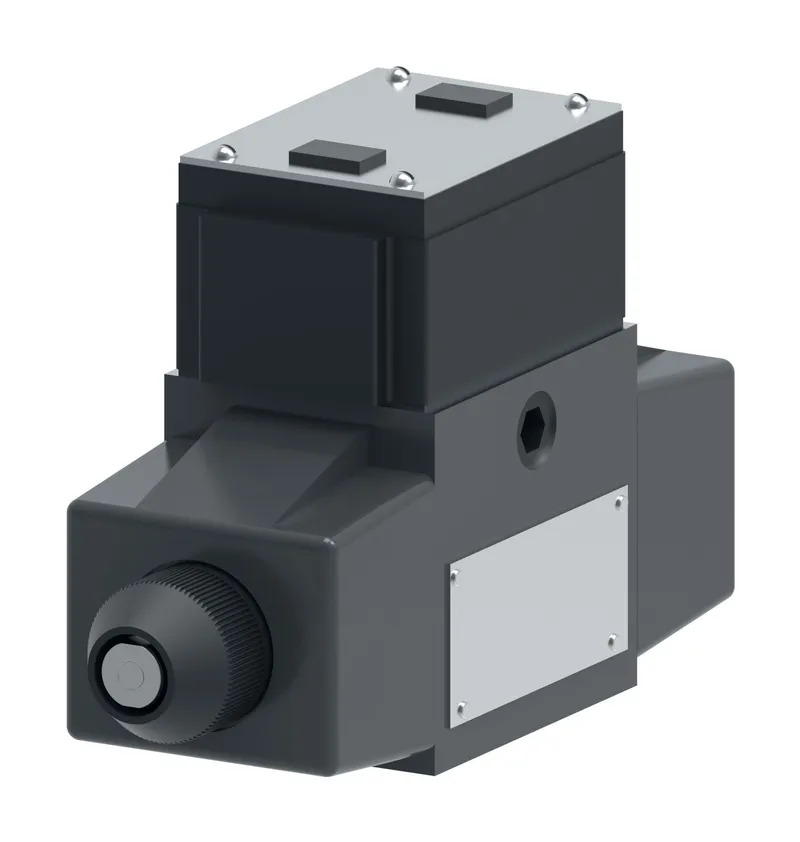

Danfoss DG4S4LW 012C H 60 S324, DG4S4LW012CH60S324, manufacturer part number 02-321311. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	60 Series
Electrical Connection	Flying lead coil wire housing
Energ Time	50-80 ms
Flow rate upto GPM	25.0
Flow rate upto LPM	95.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	Yes
Interface	ISO4401-05
Manual override	None
Model Code 1	DG4S4LW012CH60S324
Performance	Standard performance
Pressure rating BAR	250
Pressure rating PSI	3600
Product height in	5.080
Product length in	6.840
Product length mm	173.736
Product width in	2.580
Product width mm	65.532
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	CSA approved
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring centred, three position
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	70.0
Tank port rating PSI	1000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	50
Working temp max F	122
Working temp min C	20
Working temp min F	70

02-321311: frequently asked questions

When can 02-321311 be shipped?

02-321311 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-321311 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-321311 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-321311, subject to availability and destination.
