Danfoss 02-321183

DG3V 10 9C 10 USE 02-402928, DG3V109C10

MPN: 02-321183
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-321183?

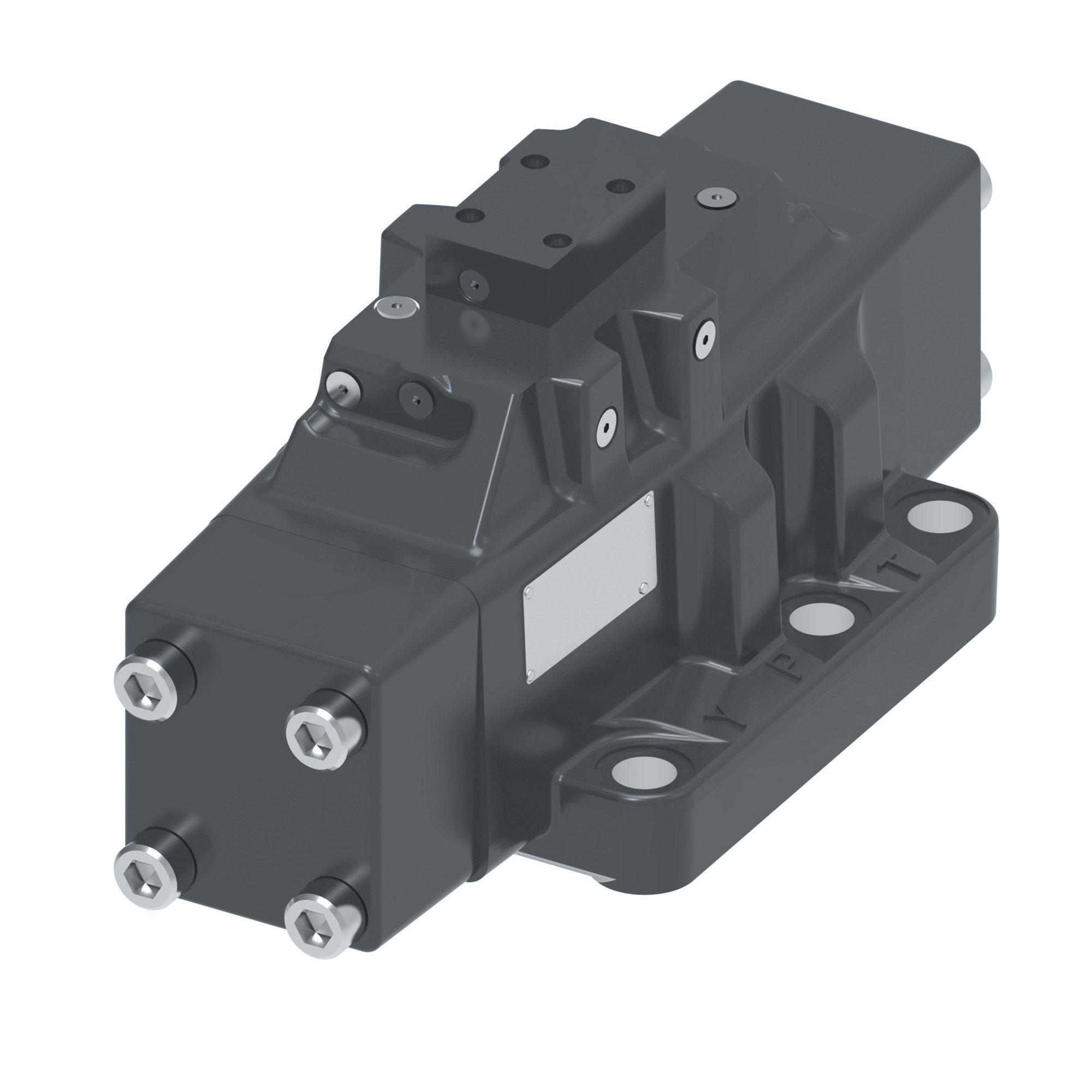

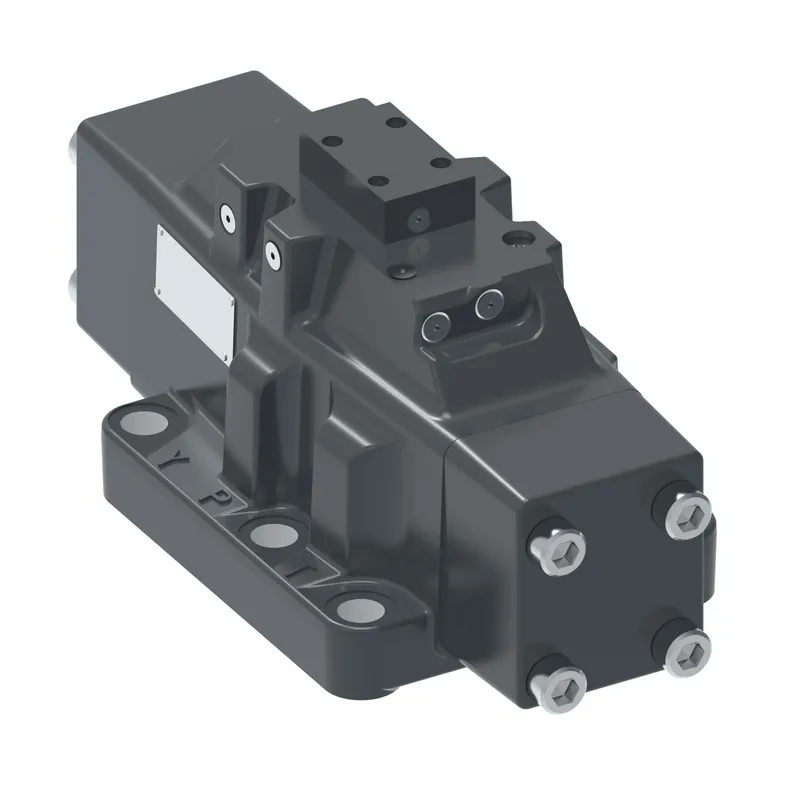

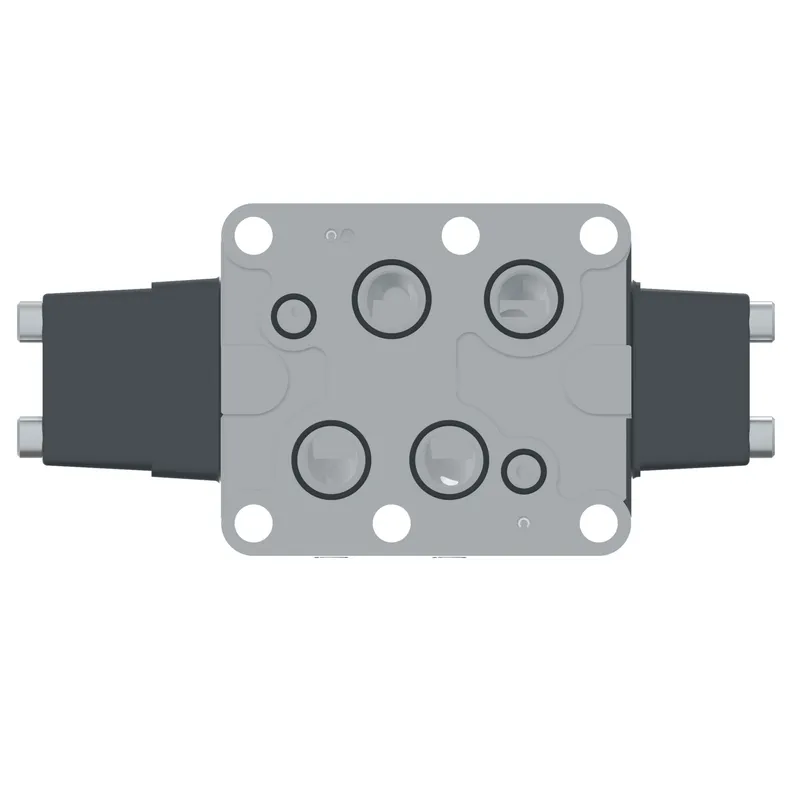

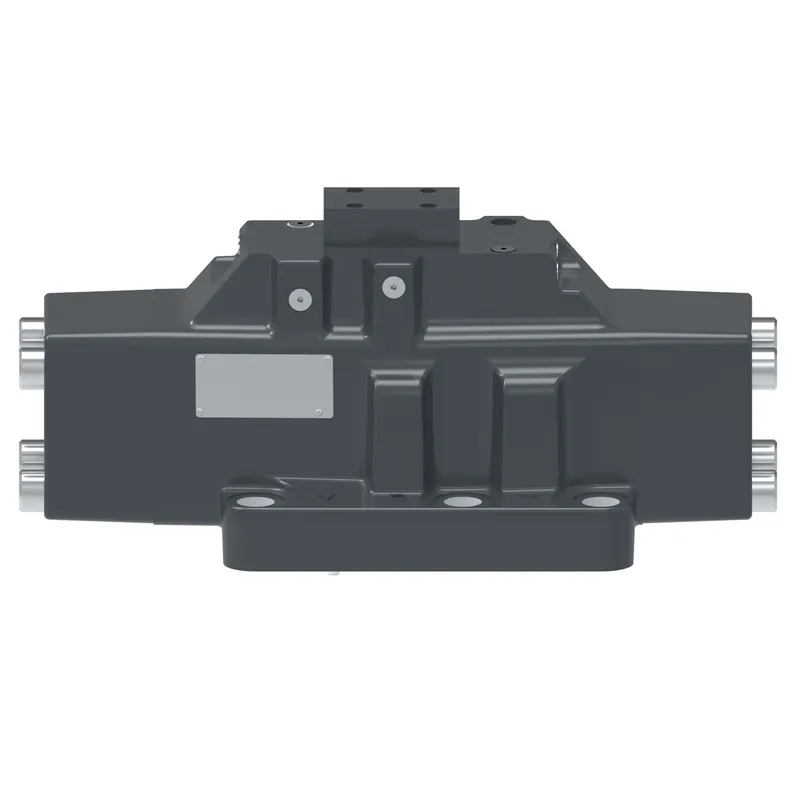

Danfoss DG3V 10 9C 10 USE 02-402928, DG3V109C10, manufacturer part number 02-321183. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Design Series	10 Series
Gauge Port Thread Type	0.4375 - 20 UNF, SAE Thread
Interface	ISO4401-10
Model Code 1	DG3V109C10
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	7.400
Product length in	16.500
Product length mm	419.100
Product width in	7.750
Product width mm	196.85
Seal type	Buna-N
Spool Type	Spool 9
Spring Arrangement	Spring centred
Stage	Two stage
Tank port rating BAR	210.0
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-321183: frequently asked questions

When can 02-321183 be shipped?

02-321183 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-321183 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-321183 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-321183, subject to availability and destination.
