Danfoss 02-319257

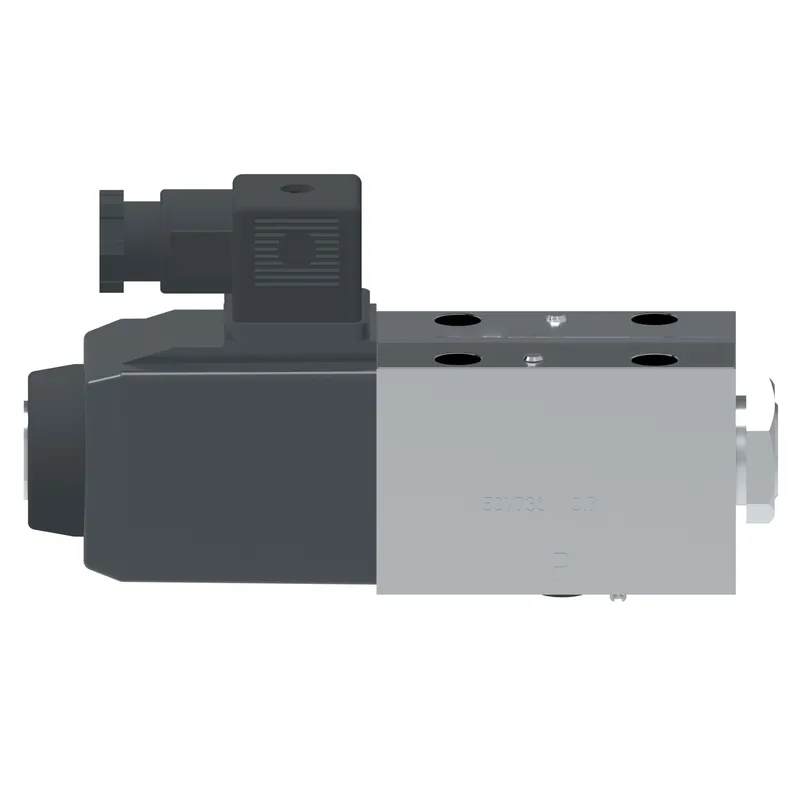

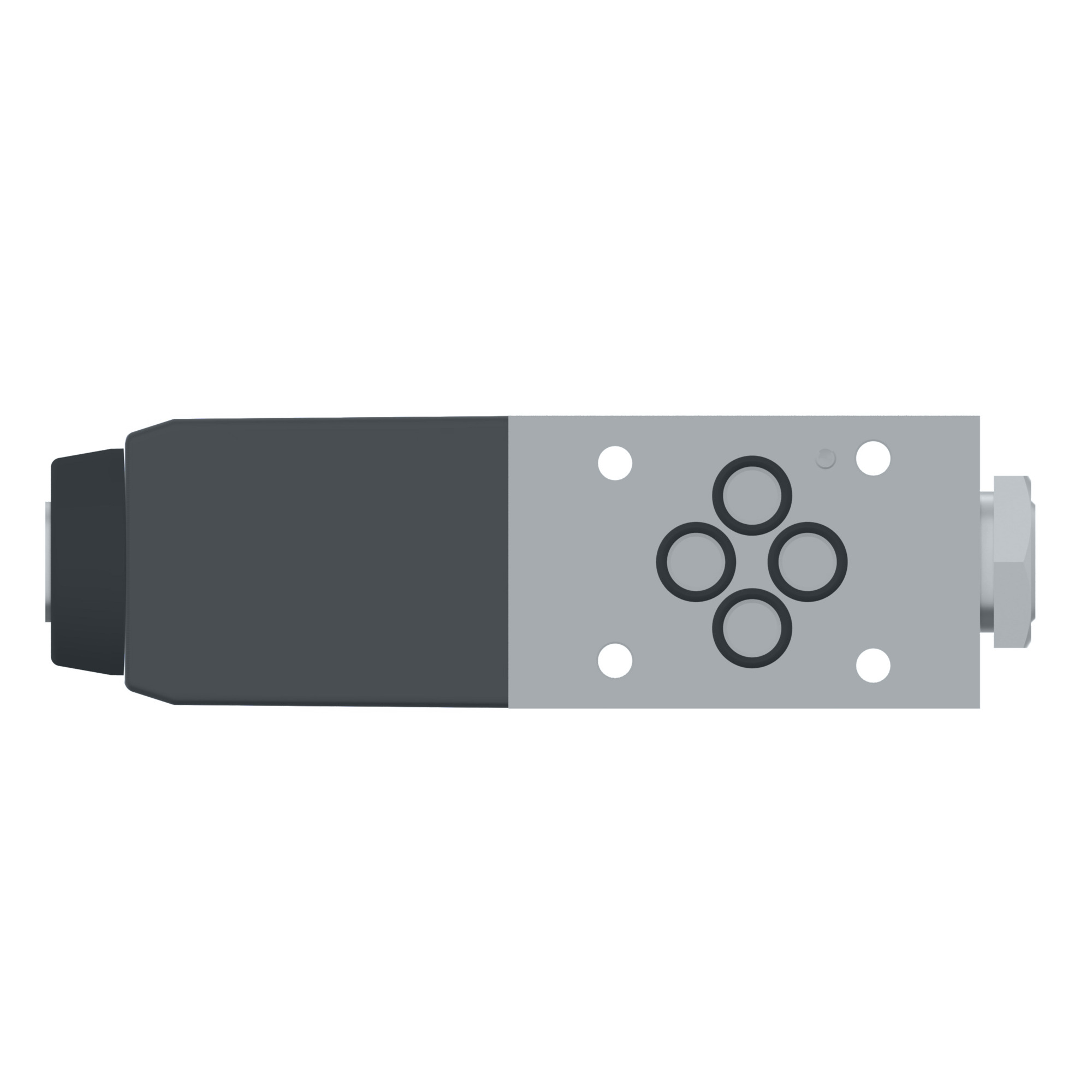

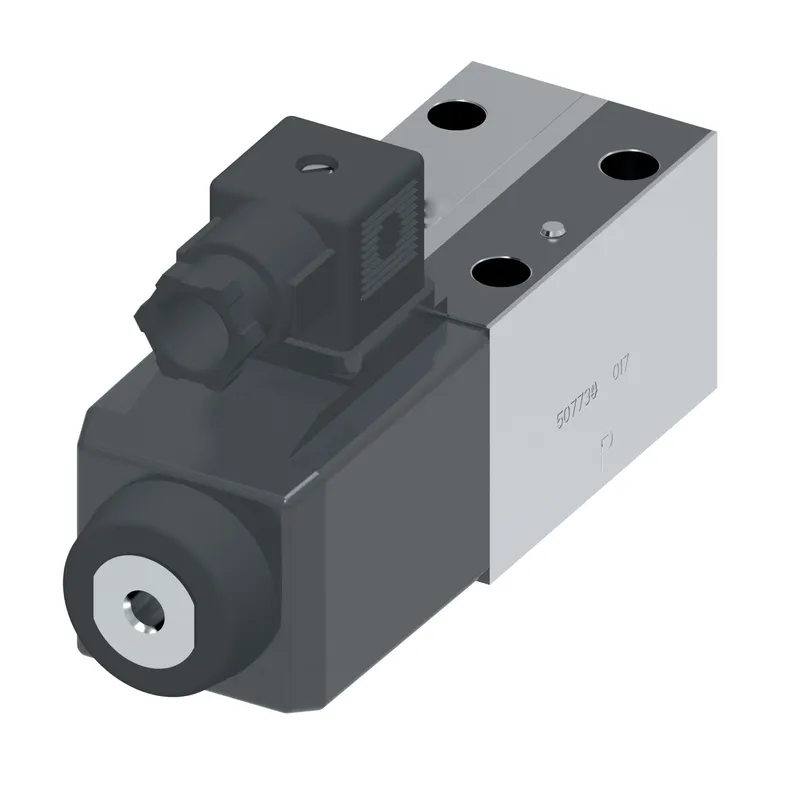

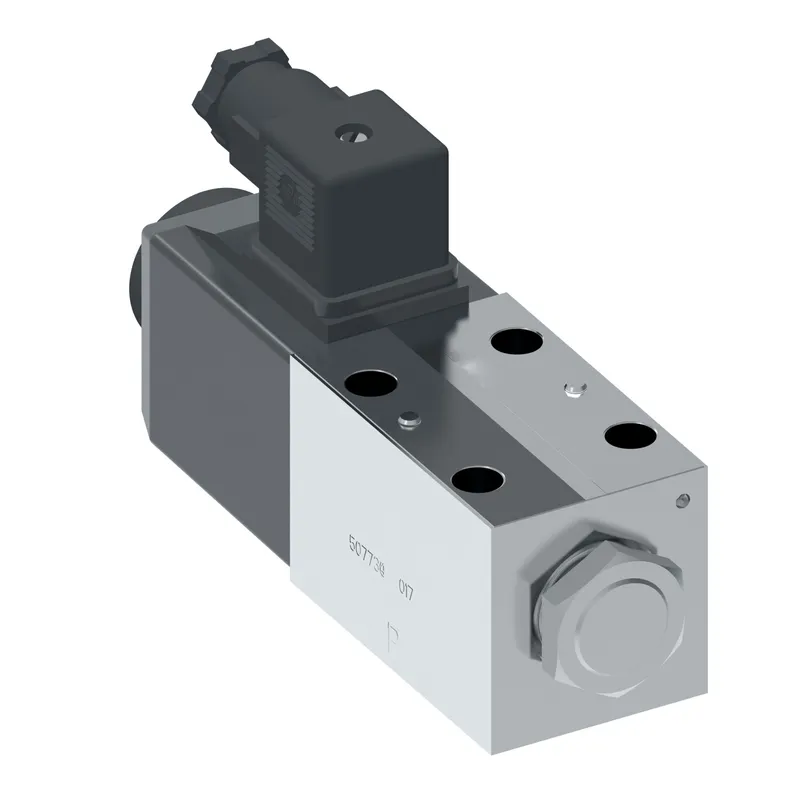

KCG 3 100D Z M U1 H1 10, KCG3100DZMU1H110

MPN: 02-319257
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-319257?

Danfoss KCG 3 100D Z M U1 H1 10, KCG3100DZMU1H110, manufacturer part number 02-319257. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	10 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	None
Maximum flow LPM	5.0
Maximum flow USGPM	1.3
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KCG3100DZMU1H110
On board electronics	No
Performance	Standard
Pressure range	3-100 bar (44-1450 psi)
Product height in	3.000
Product height mm	76.200
Product length in	6.100
Product length mm	154.940
Product width in	1.800
Product width mm	45.72
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Stage	Single stage
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional pressure relief
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
