Danfoss 02-319215

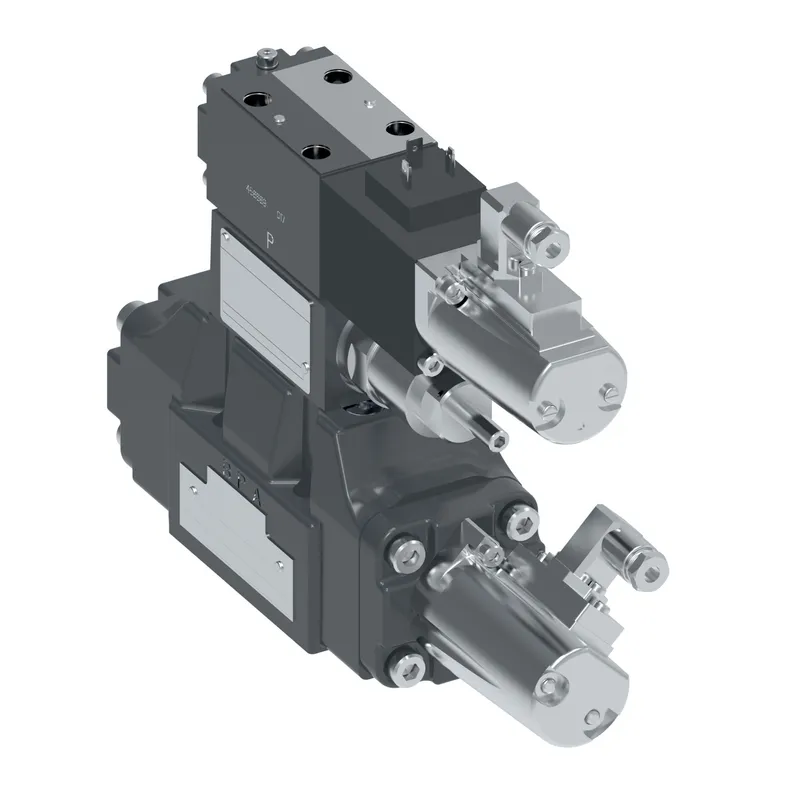

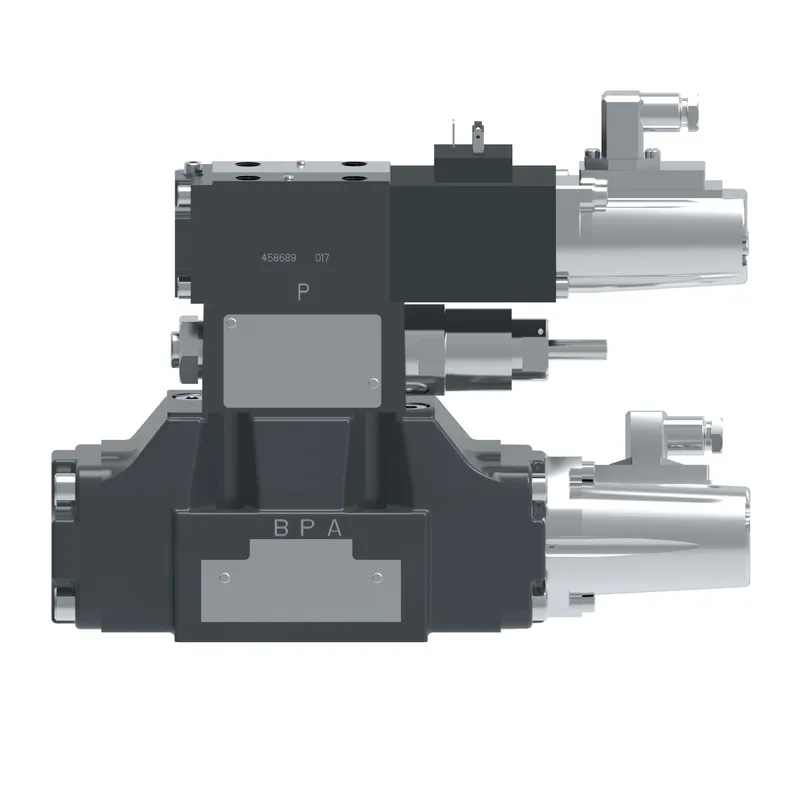

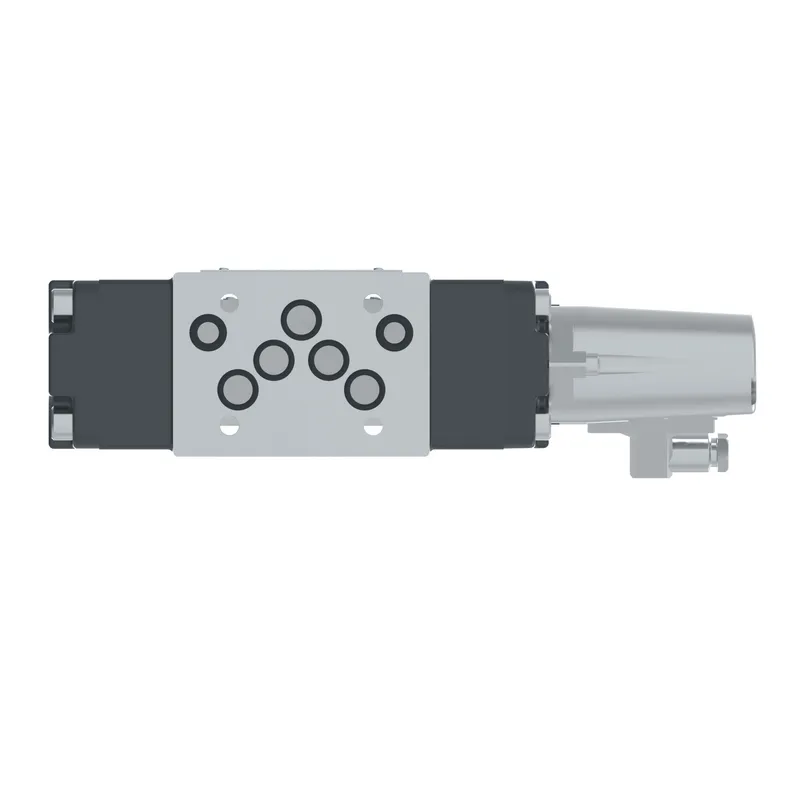

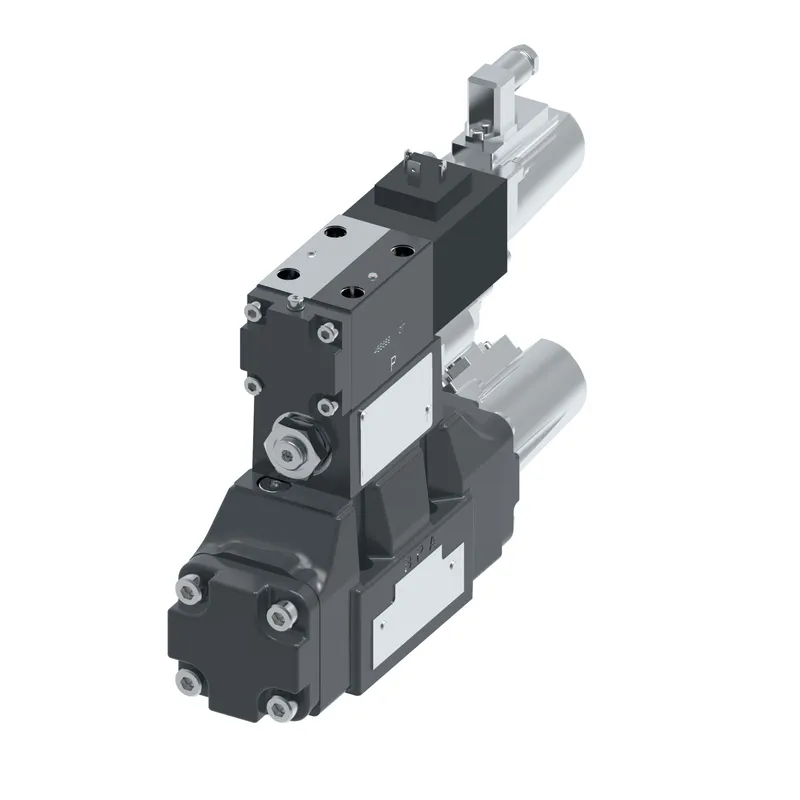

KHDG5V 5 5C85N X VM U1 H1 20, KHDG5V55C85NXVMU1H120

MPN: 02-319215
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-319215?

Danfoss KHDG5V 5 5C85N X VM U1 H1 20, KHDG5V55C85NXVMU1H120, manufacturer part number 02-319215. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	85.00
A Port flow USGPM	22.50
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	85.00
B Port flow USGPM	22.50
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	20 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	Plain
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Meter in / meter out
Model Code 1	KHDG5V55C85NXVMU1H120
On board electronics	No
Performance	Servo
Pilot drain	External
Pilot supply	Internal
Product height in	8.390
Product height mm	213.106
Product length in	10.280
Product length mm	261.112
Product width in	2.860
Product width mm	72.644
ProFX compatible	No
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	Closed centre (all ports)
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	100
Tank port rating PSI	1450
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
