What is the Danfoss 02-170465?

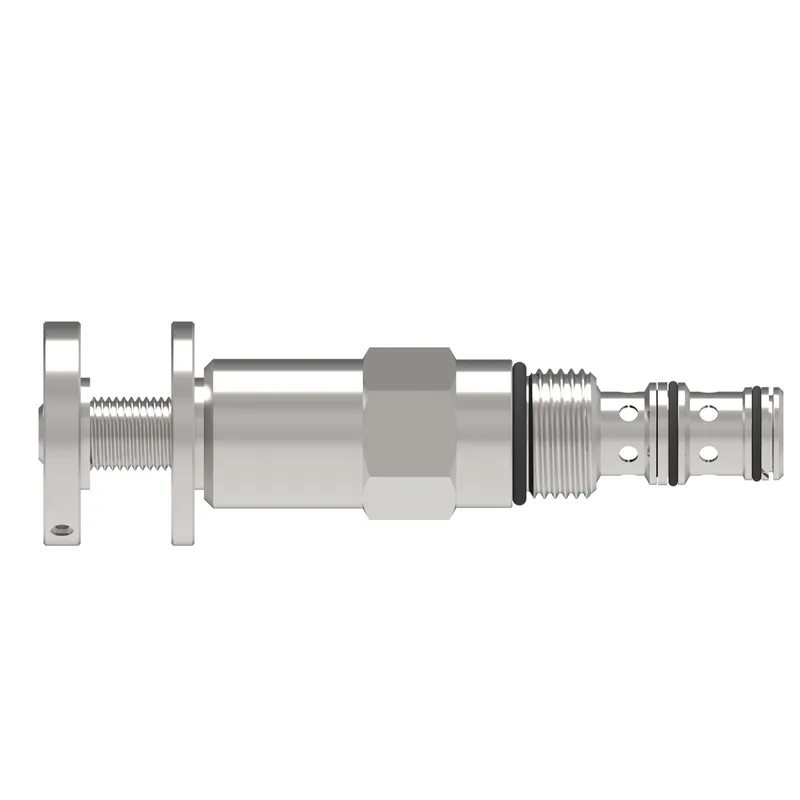

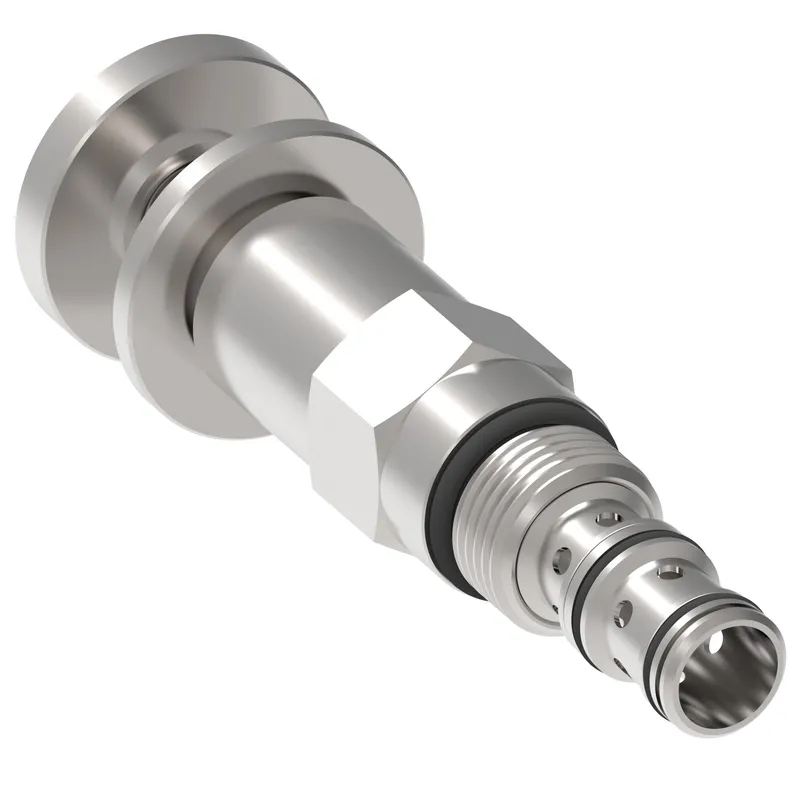

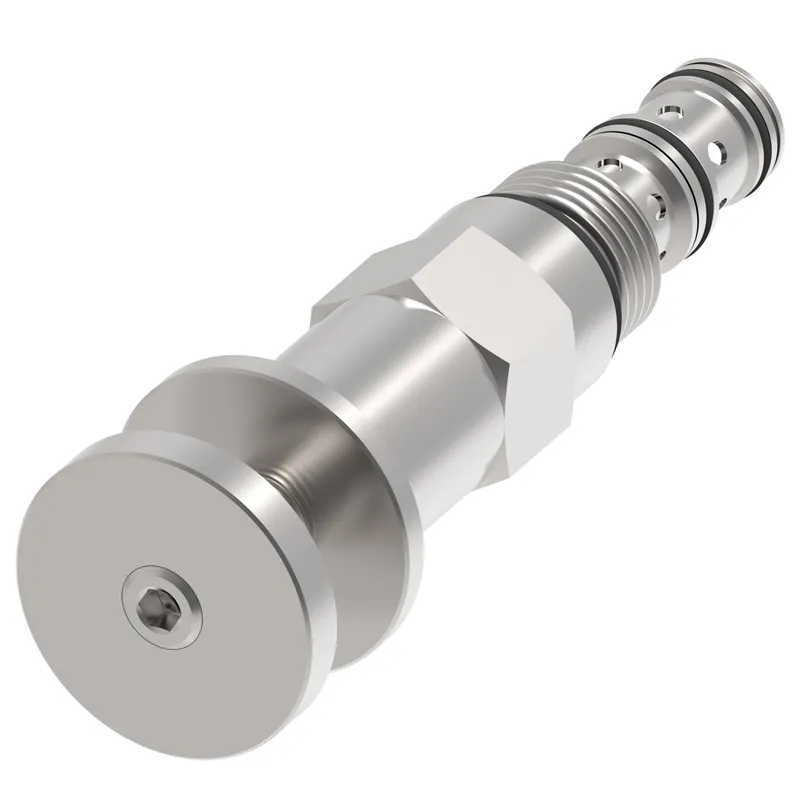

Danfoss PRV2-16-K-0-30/10, PRV2-16-K-0-30-10, manufacturer part number 02-170465. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Knob
Brand	Vickers by Danfoss
Cavity	C-16-3
Factory set pressrue BAR	69.000
Factory set pressrue PSI	1002.000
Flow rate GPM	40.00
Flow rate LPM	151.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Reducing/Relieving
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	820 cc/min
Max working pressure BAR	210.000
Max working pressure PSI	3053.000
Min working pressure BAR	34.000
Min working pressure PSI	494.000
Model Code 1	PRV2-16-K-0-30-10
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Port size	None
Port type	Cartridge Only
Product height in	1.500
Product height mm	38.100
Product length in	5.060
Product length mm	128.524
Product width in	1.500
Product width mm	38.100 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
