Danfoss 02-170442

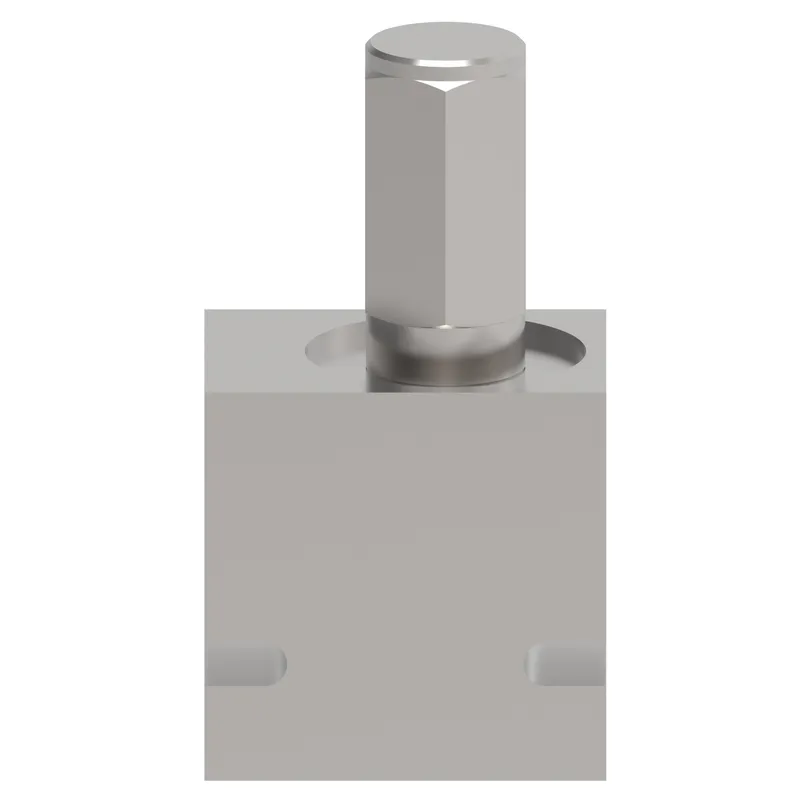

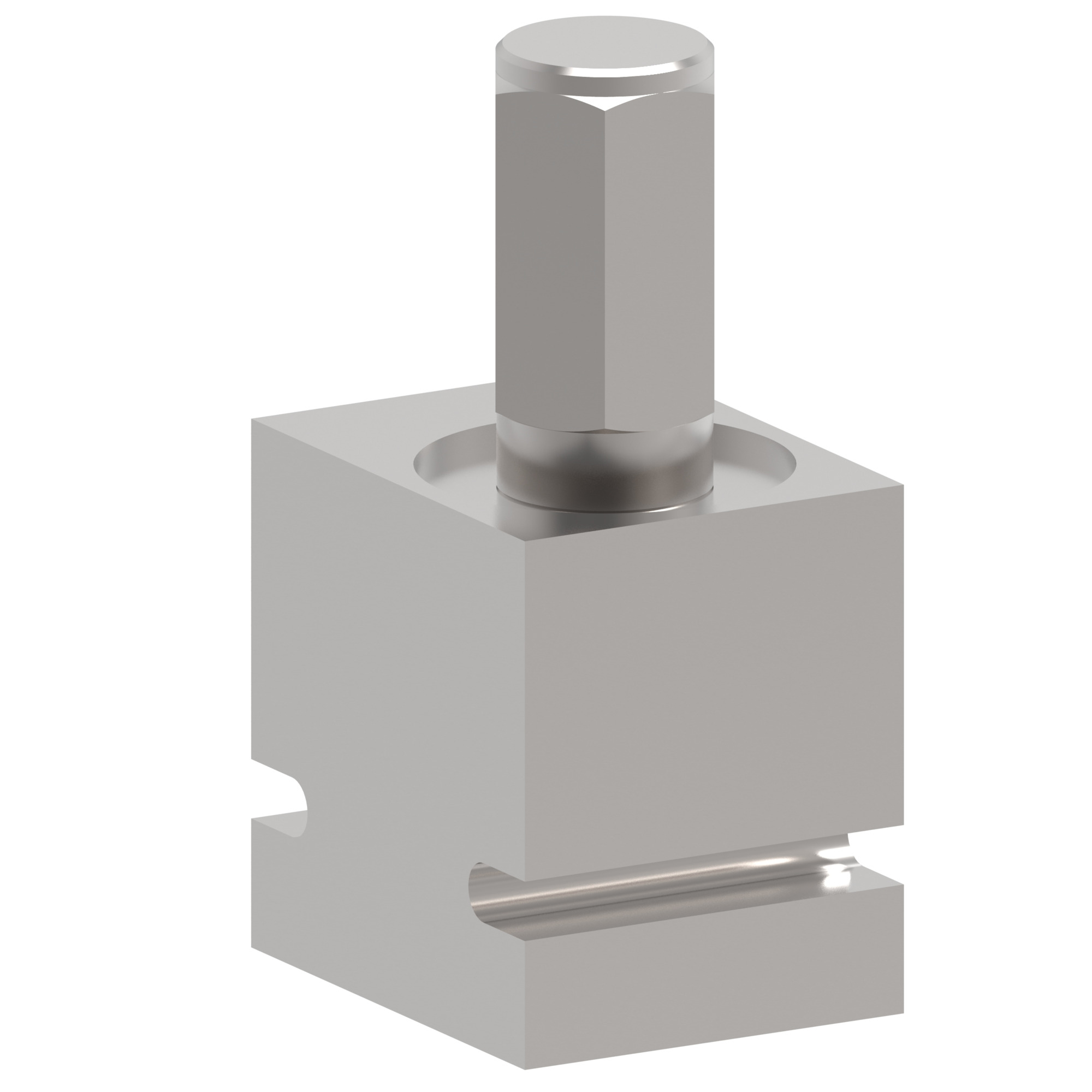

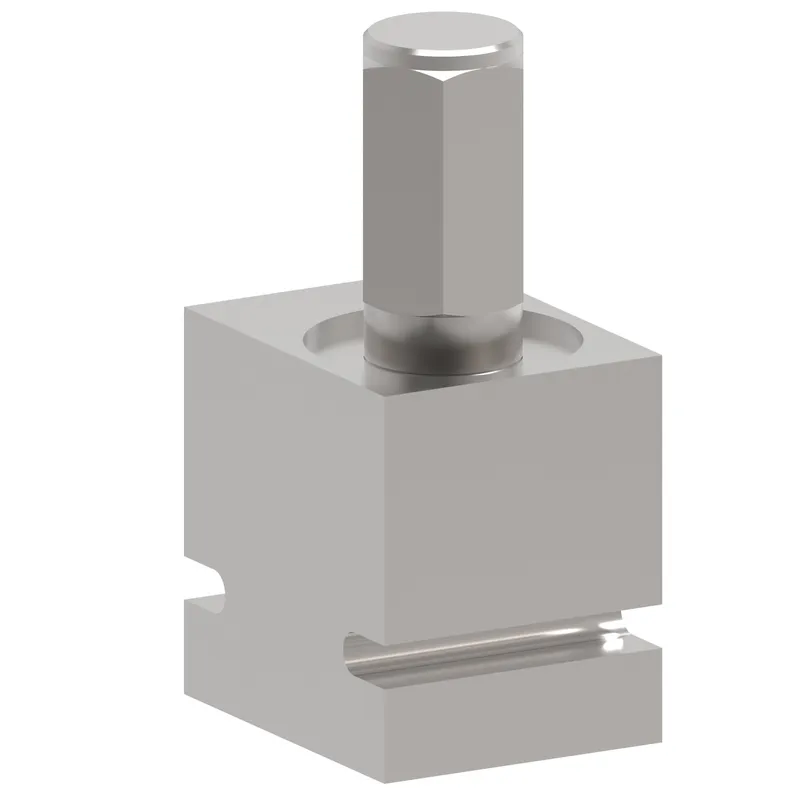

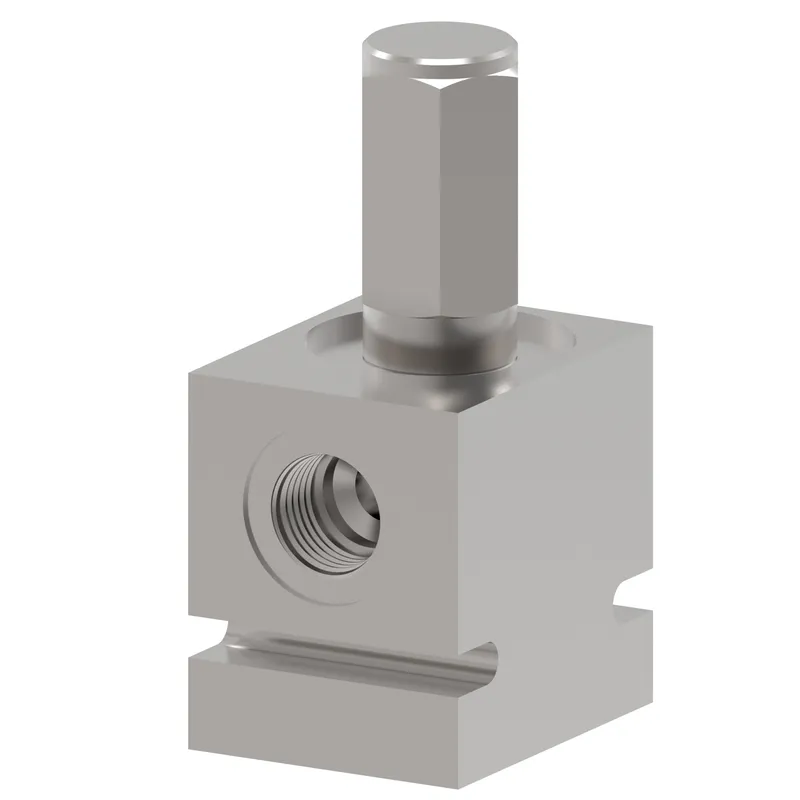

PSV1-10-F-6T-2/1, PSV1-10-F-6T-2-1

MPN: 02-170442
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-170442?

Danfoss PSV1-10-F-6T-2/1, PSV1-10-F-6T-2-1, manufacturer part number 02-170442. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Factory Set
Brand	Vickers by Danfoss
Cavity	C-10-3
Factory set pressrue BAR	7.000
Factory set pressrue PSI	100.000
Flow rate GPM	6.00
Flow rate LPM	23.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Sequence Valve
Housing	Yes
Housing material	Steel
Installation type	Screw-in Cartridge
Leakage	82 cc/min
Max working pressure BAR	14.000
Max working pressure PSI	204.000
Min working pressure BAR	4.000
Min working pressure PSI	51.000
Model Code 1	PSV1-10-F-6T-2-1
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	3/8"
Port type	SAE
Product height in	5.550
Product height mm	140.970
Product length in	2.970
Product length mm	75.438
Product width in	2.000
Product width mm	50.800 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
