Danfoss 02-166041

MRV-2435-0, MRV-2435

MPN: 02-166041
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

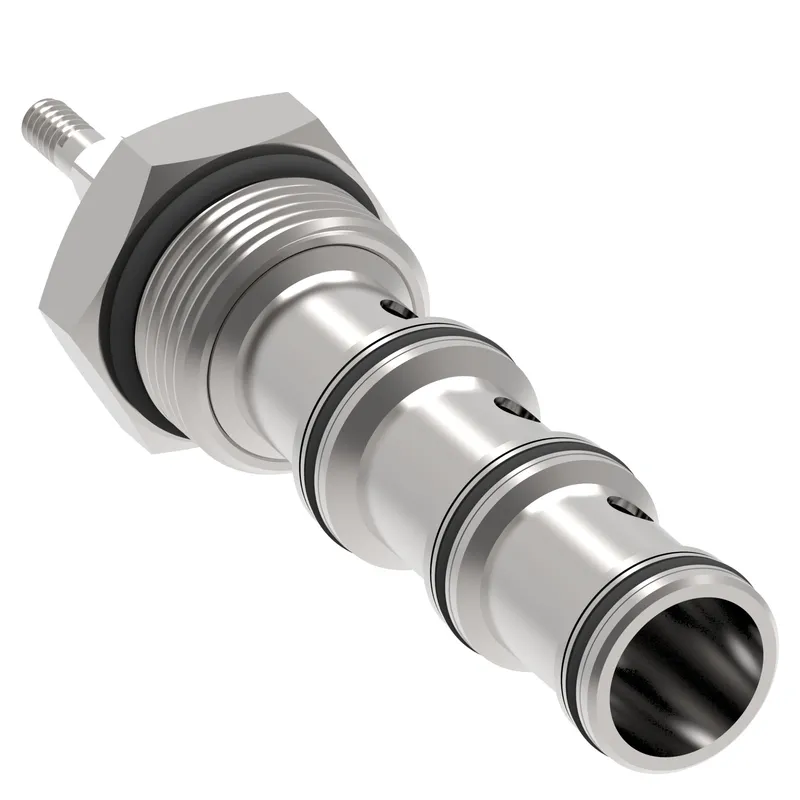

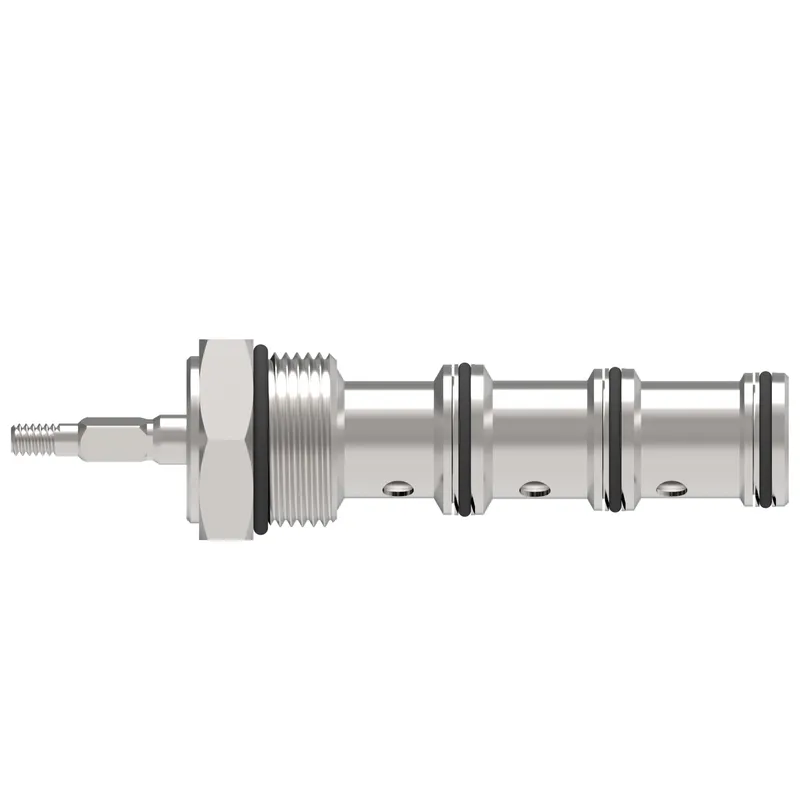

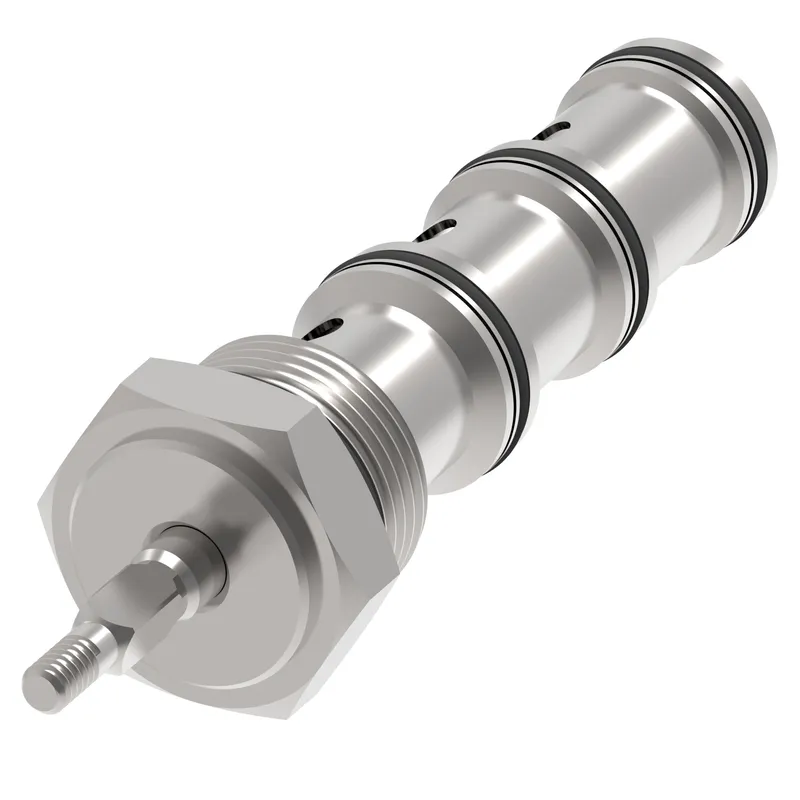

What is the Danfoss 02-166041?

Danfoss MRV-2435-0, MRV-2435, manufacturer part number 02-166041. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation option	None
Adjustment type	Stem Only
Brand	Vickers by Danfoss
Cavity	C-10-4
Detent option	No
Flow rate GPM	3.00
Flow rate LPM	11.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Manual semi-rotary valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	328 cc/min
Model Code 1	MRV-2435
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	None
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	2.450
Product height mm	62.230
Product length in	2.750
Product length mm	69.850
Product width in	1.600
Product width mm	40.640 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Style	4-Way 3-Position
Torque into aluminium cavity	47-54 Nm
Torque into steel cavity	68-75 Nm
