Danfoss 02-166023

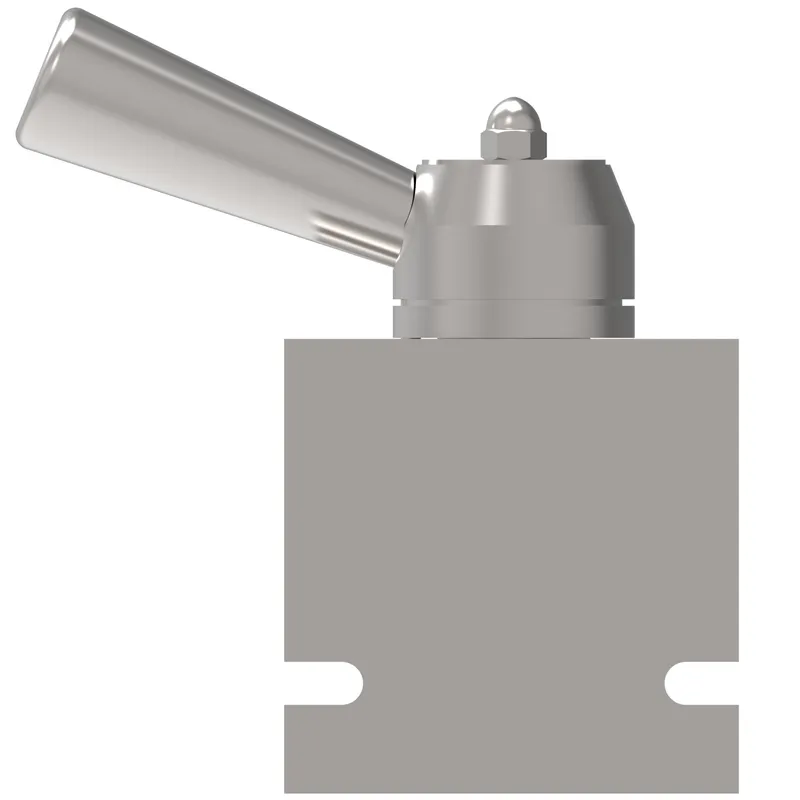

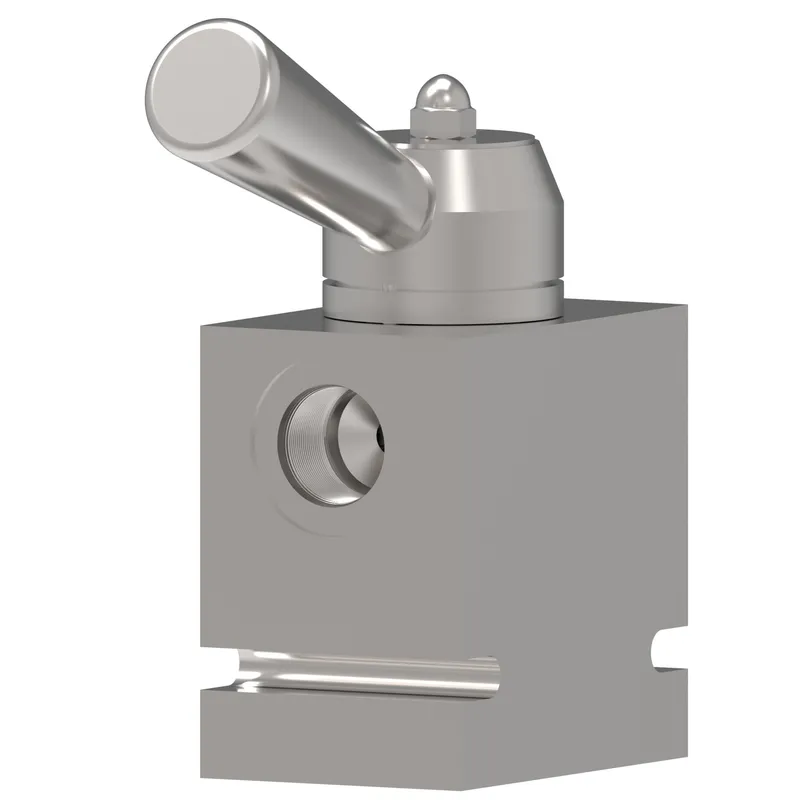

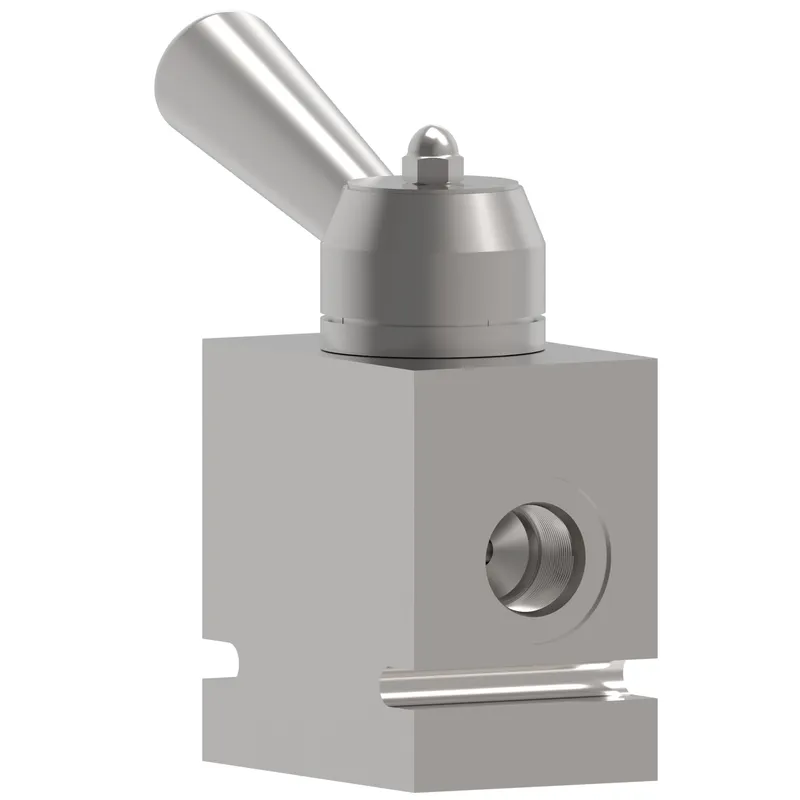

MRV2-16-L-12T-20, MRV2-16-L-12T-20

MPN: 02-166023
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-166023?

Danfoss MRV2-16-L-12T-20, MRV2-16-L-12T-20, manufacturer part number 02-166023. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Lever (Friction Lock)
Brand	Vickers by Danfoss
Cavity	C-16-2
Factory set flow rate GPM	10.000
Factory set flow rate LPM	38.00
Flow rate GPM	45.000
Flow rate LPM	170.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Manual Rotary Flow Control
Housing	Yes
Housing material	Aluminum
Installation type	Line Mounted
Leakage	655 cc/min
Maximum flow rate LPM	76.00
Model Code 1	MRV2-16-L-12T-20
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port size	3/4"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	6.500
Product height mm	165.100
Product length in	3.500
Product length mm	88.900
Product width in	2.000
Product width mm	50.800 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	108-122 Nm
Torque steel cavity	139-149 Nm
