Danfoss 02-164180

Cartridge valve

MPN: 02-164180
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-164180?

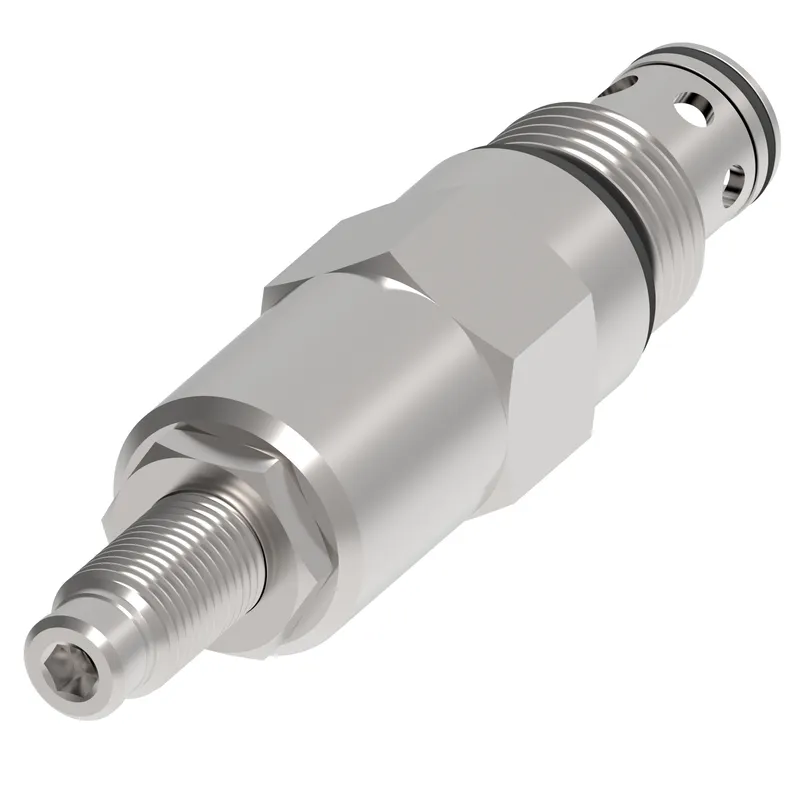

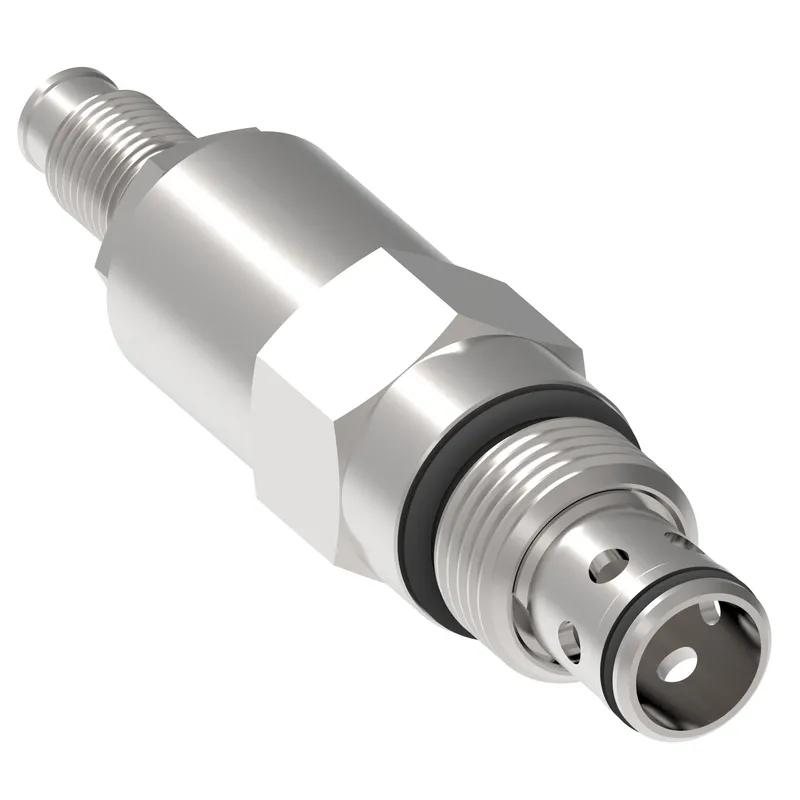

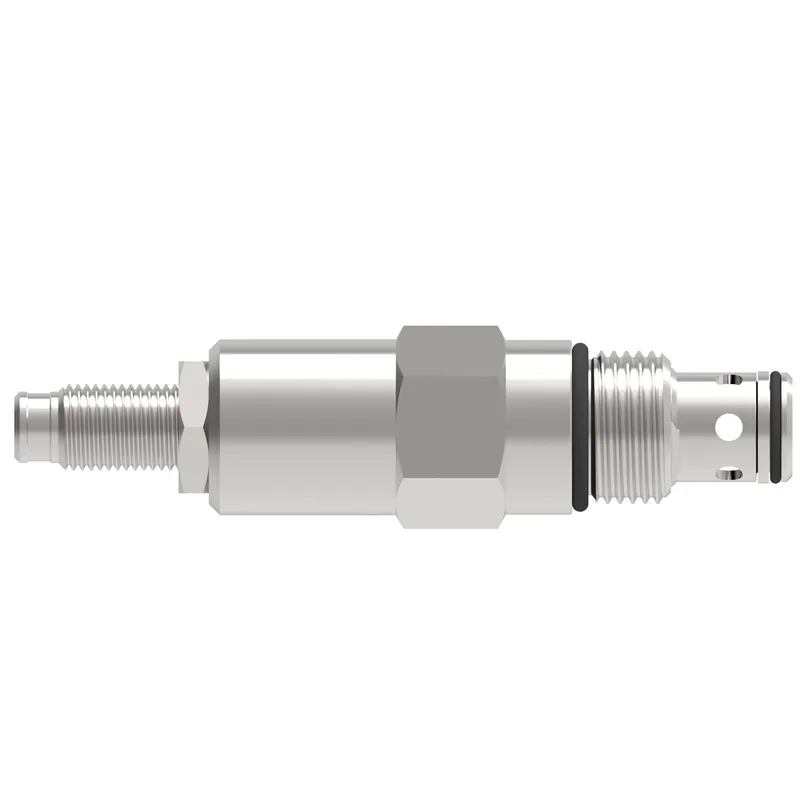

Danfoss RV5-10V-S-0-50/30, RV5-10-V-S-0-50-30, manufacturer part number 02-164180. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Screw
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set pressrue BAR	207.000
Factory set pressrue PSI	3000.000
Flow rate GPM	30.00
Flow rate LPM	114.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	114 cc/min
Max working pressure BAR	350.000
Max working pressure PSI	5000.000
Min working pressure BAR	35.000
Min working pressure PSI	500.000
Model Code 1	RV5-10-V-S-0-50-30
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Port size	None
Port type	Cartridge Only
Pressure rating BAR	350.000
Product height in	1.000
Product height mm	25.400
Product length in	4.380
Product length mm	111.252
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Viton
Special features	None
Style	Spool
Valve torque into cavity	47-54 Nm
