Danfoss 02-164178

Cartridge valve

MPN: 02-164178
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-164178?

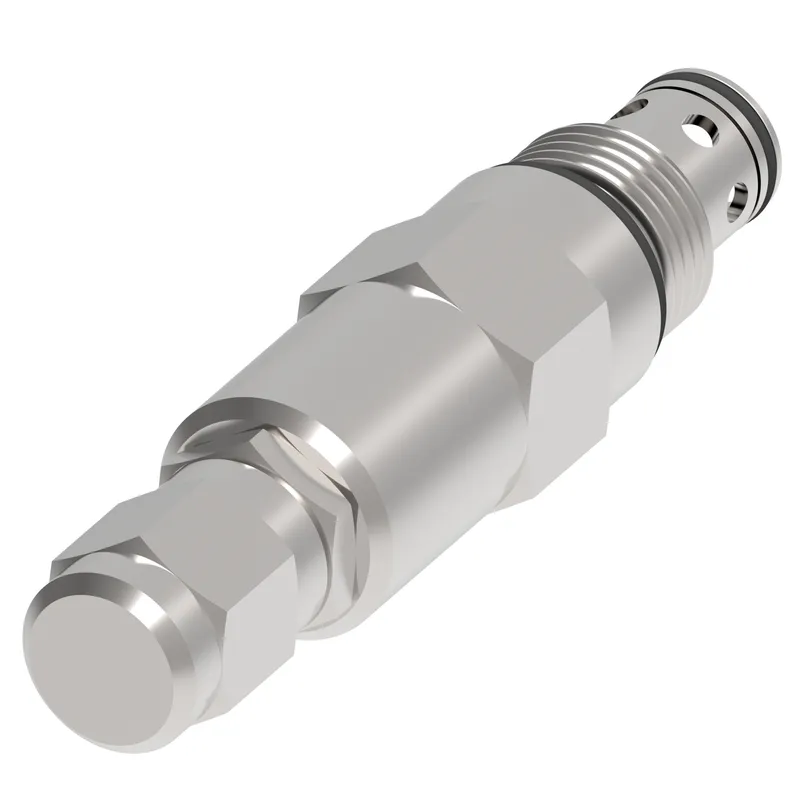

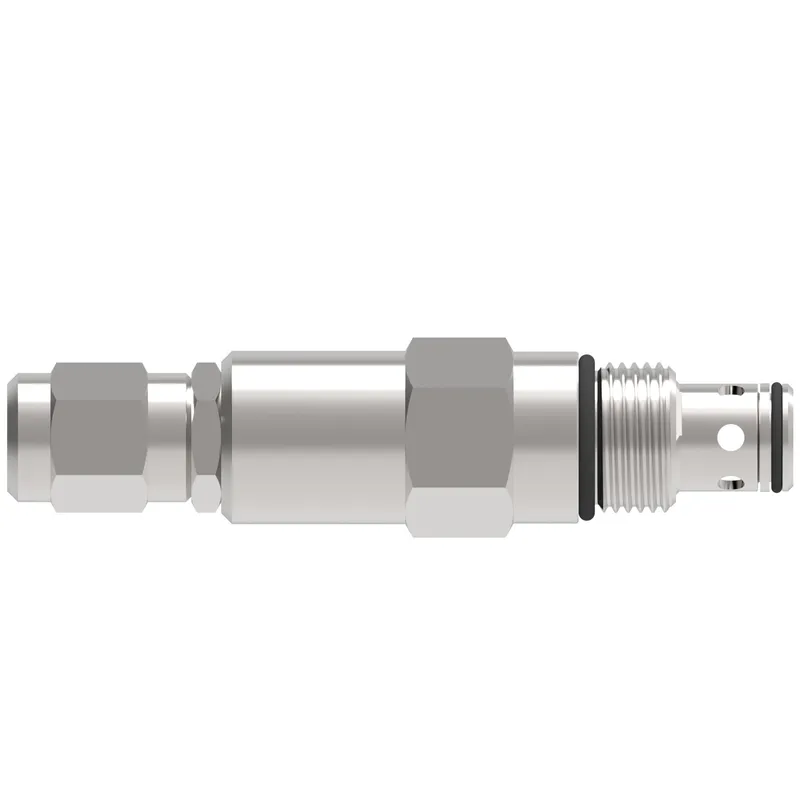

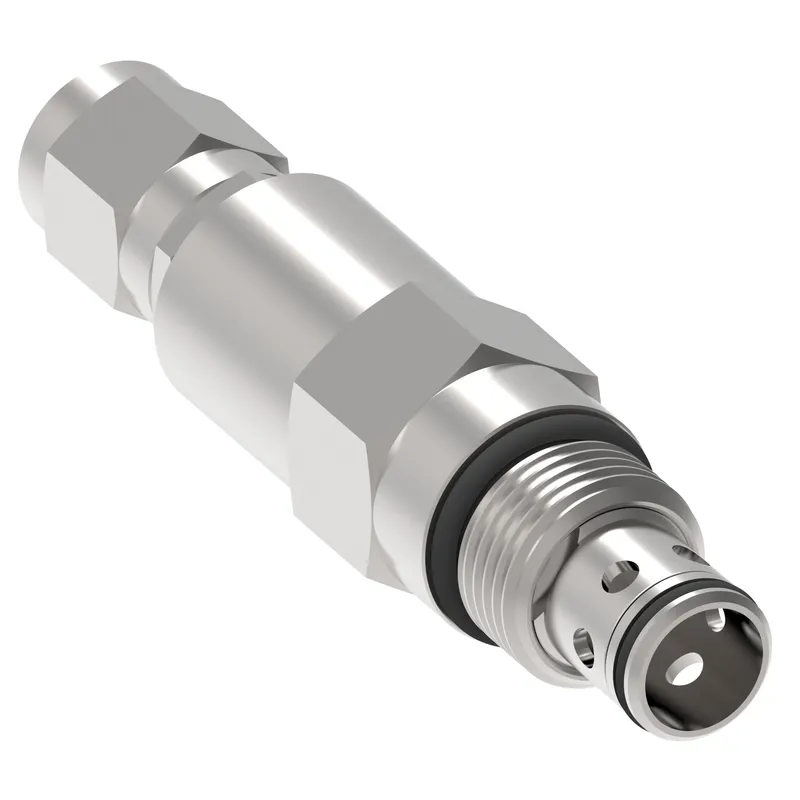

Danfoss RV5-16-C-0-30/10, RV5-16-C-0-30-10, manufacturer part number 02-164178. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Cap
Brand	Vickers by Danfoss
Cavity	C-16-2
Factory set pressrue BAR	69.000
Factory set pressrue PSI	1002.000
Flow rate GPM	79.00
Flow rate LPM	300.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Relief Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	164 cc/min
Max working pressure BAR	210.000
Max working pressure PSI	3053.000
Min working pressure BAR	34.000
Min working pressure PSI	494.000
Model Code 1	RV5-16-C-0-30-10
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Port size	None
Port type	Cartridge Only
Product height in	1.500
Product length in	4.120
Product length mm	104.648
Product width in	1.500
Product width mm	38.100 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
