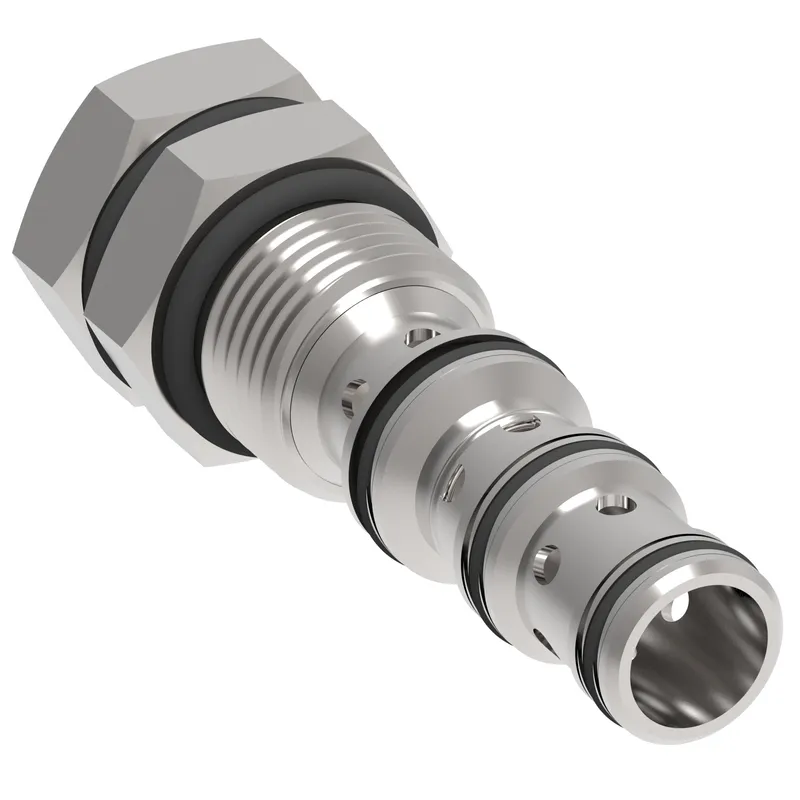

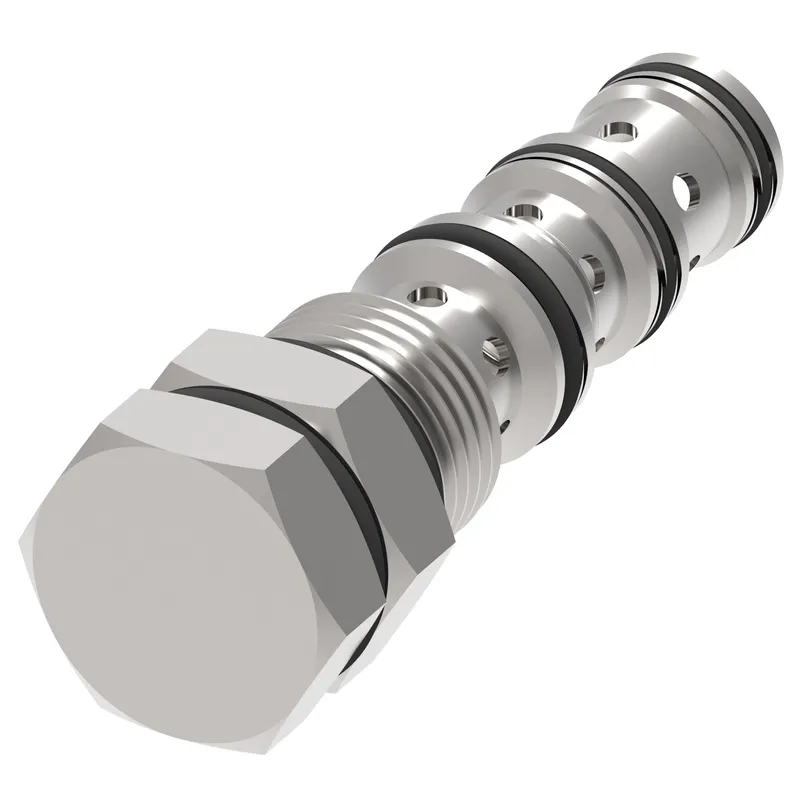

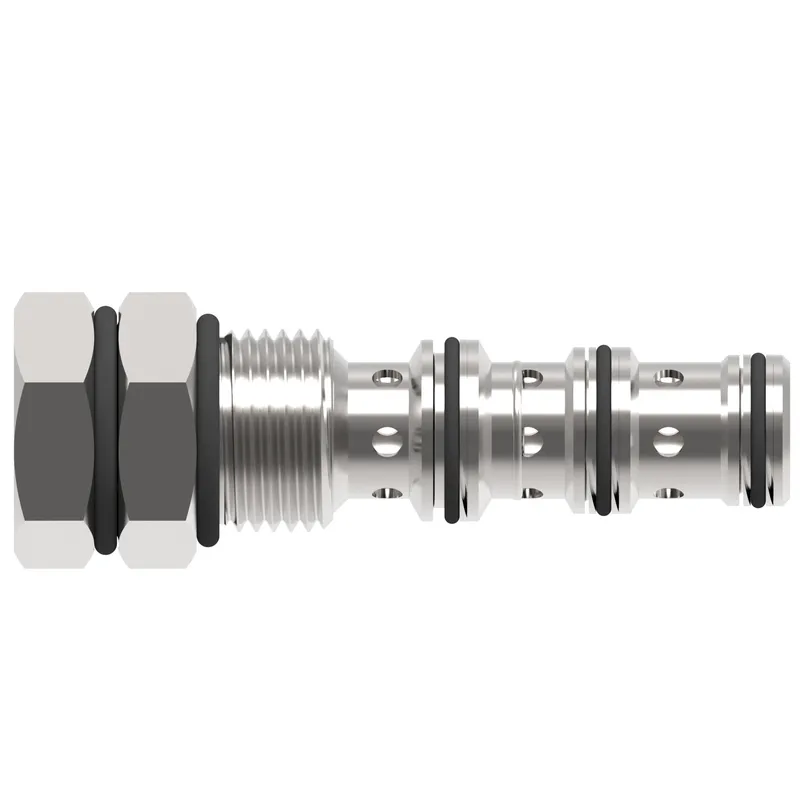

Danfoss 02-163618

PTS4-16-0-40, PTS4-16-0-40

MPN: 02-163618
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-163618?

Danfoss PTS4-16-0-40, PTS4-16-0-40, manufacturer part number 02-163618. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation option	None
Adjustment type	None
Brand	Vickers by Danfoss
Cavity	C-16-4
Detent option	No
Flow rate GPM	35.00
Flow rate LPM	132.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pilot to shift valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	210 cc/min
Model Code 1	PTS4-16-0-40
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Pilot pressure setting BAR	3.00
Port size	None
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	1.500
Product height mm	38.100
Product length in	5.120
Product length mm	130.048
Product width in	1.500
Product width mm	38.100 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Style	4-Way 2-Position
Torque into aluminium cavity	108-122 Nm
Torque into steel cavity	136-149 Nm
