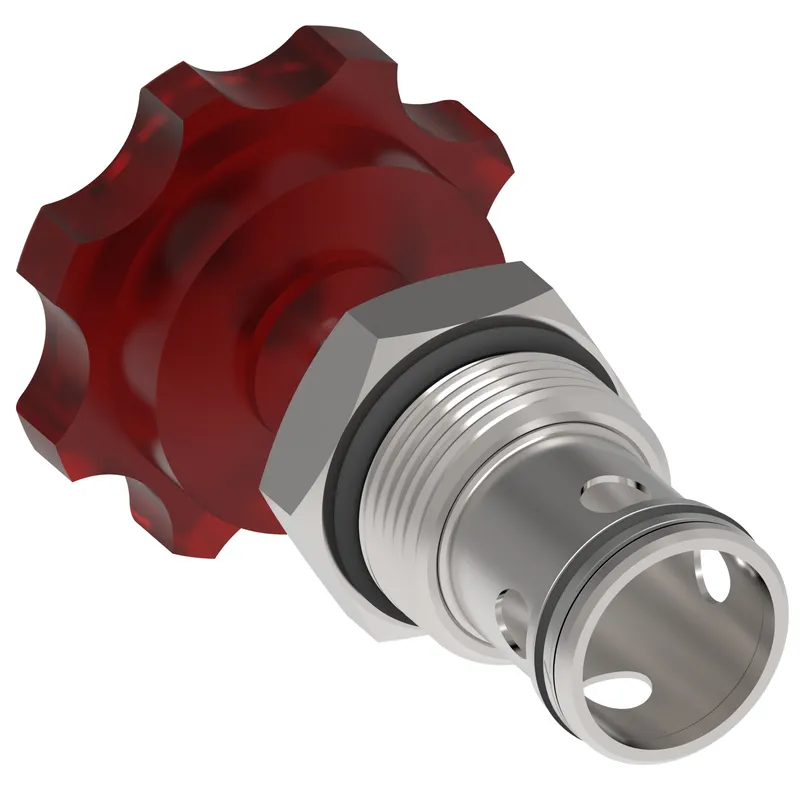

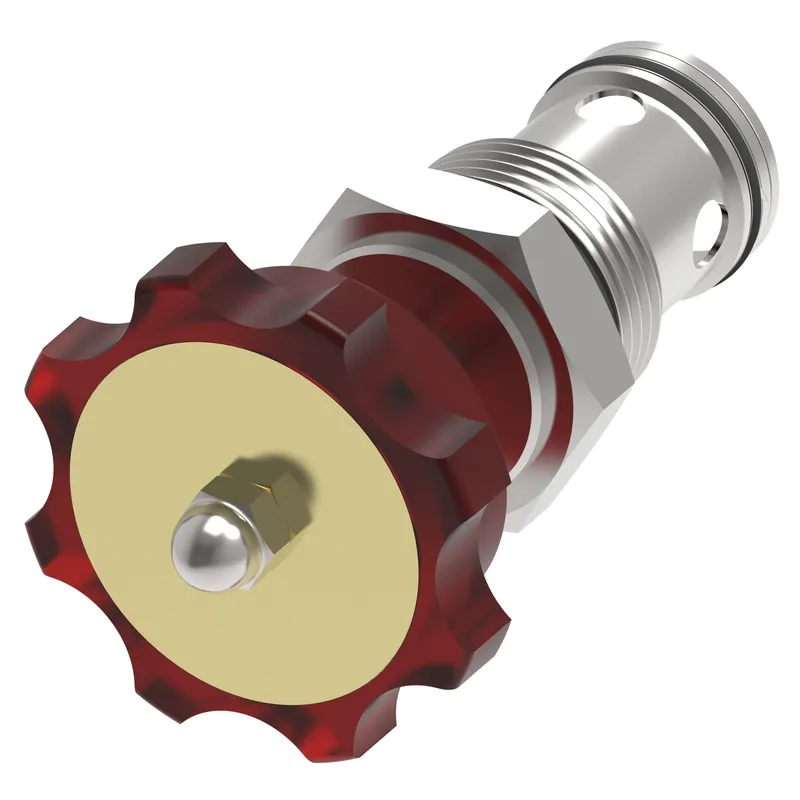

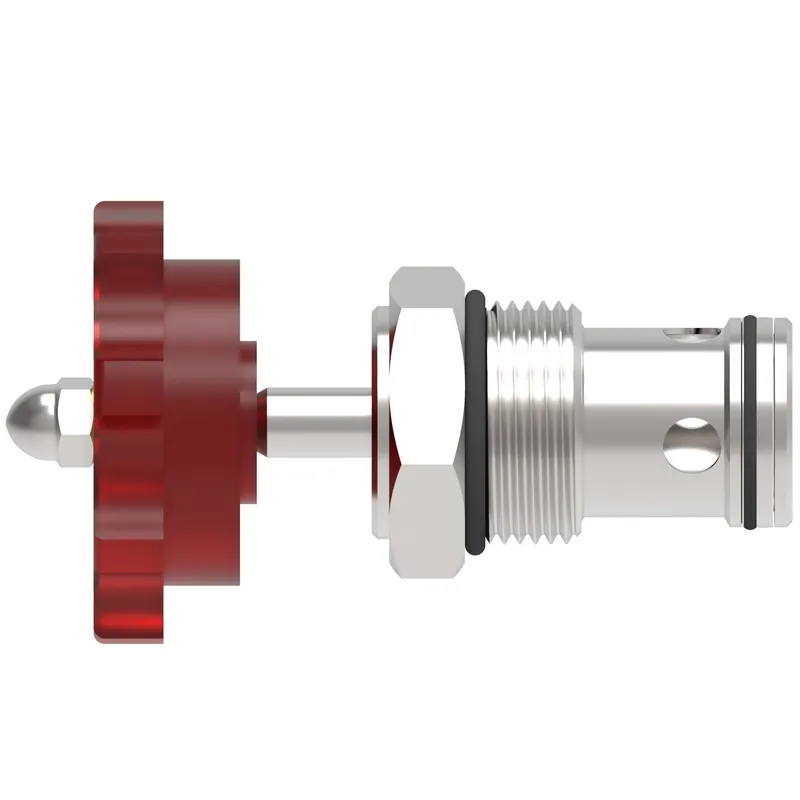

Danfoss 02-163605

Cartridge valve

MPN: 02-163605
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-163605?

Danfoss NV1-20V-K-0, NV1-20-V-K-0, manufacturer part number 02-163605. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Knob
Brand	Vickers by Danfoss
Cavity	C-20-2
Flow rate GPM	70.000
Flow rate LPM	265.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Needle Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Maximum flow rate LPM	70.00
Model Code 1	NV1-20-V-K-0
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	2.400
Product height mm	60.960
Product length in	4.690
Product length mm	119.126
Product width in	2.400
Product width mm	60.960 mm
Rec filtration level	18/16/13
Seal type	Viton
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	128-155 Nm
Torque steel cavity	163-183 Nm
