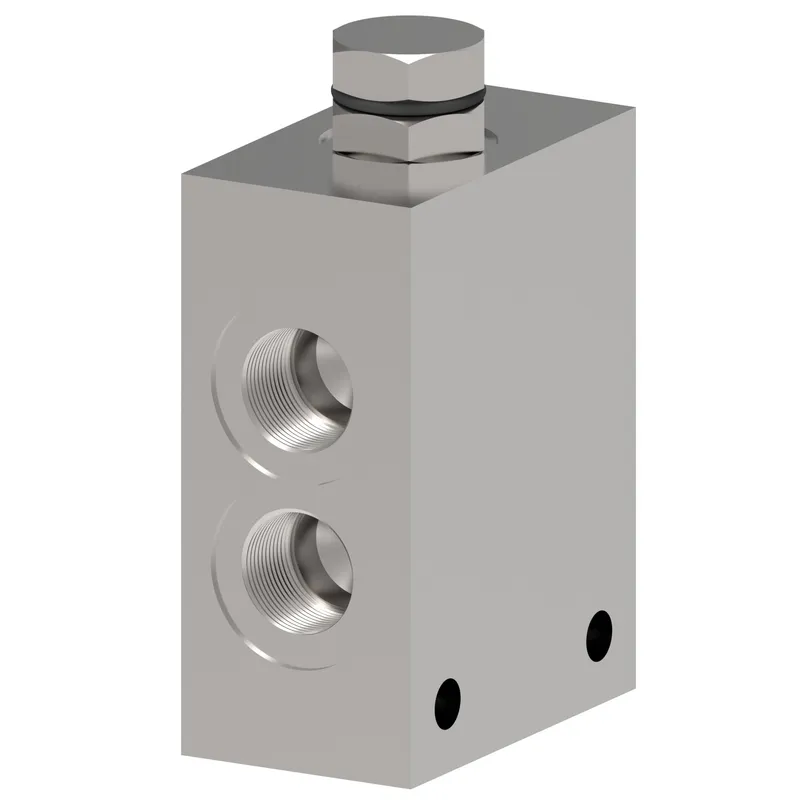

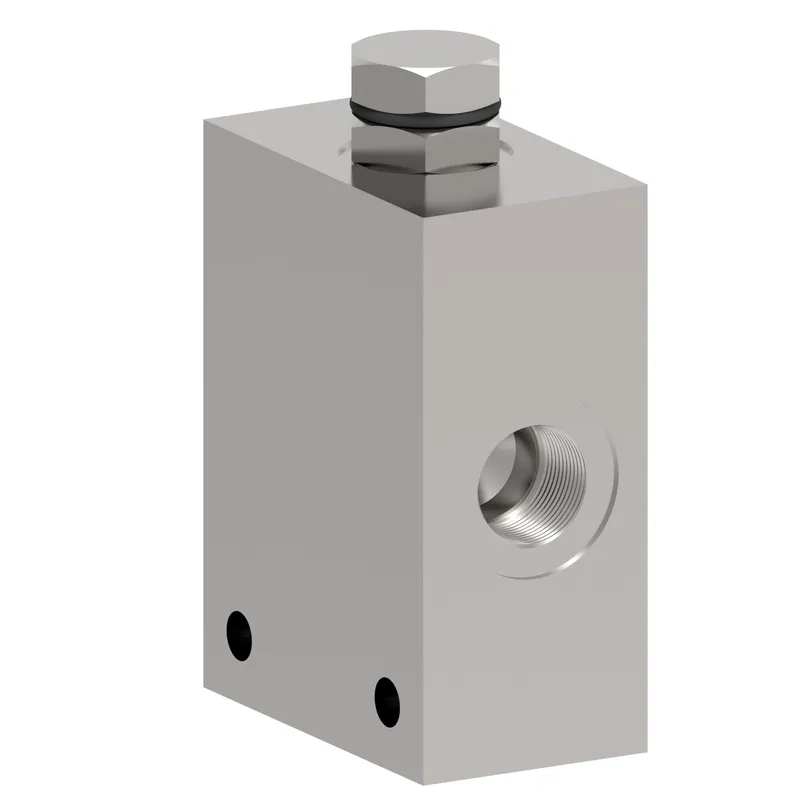

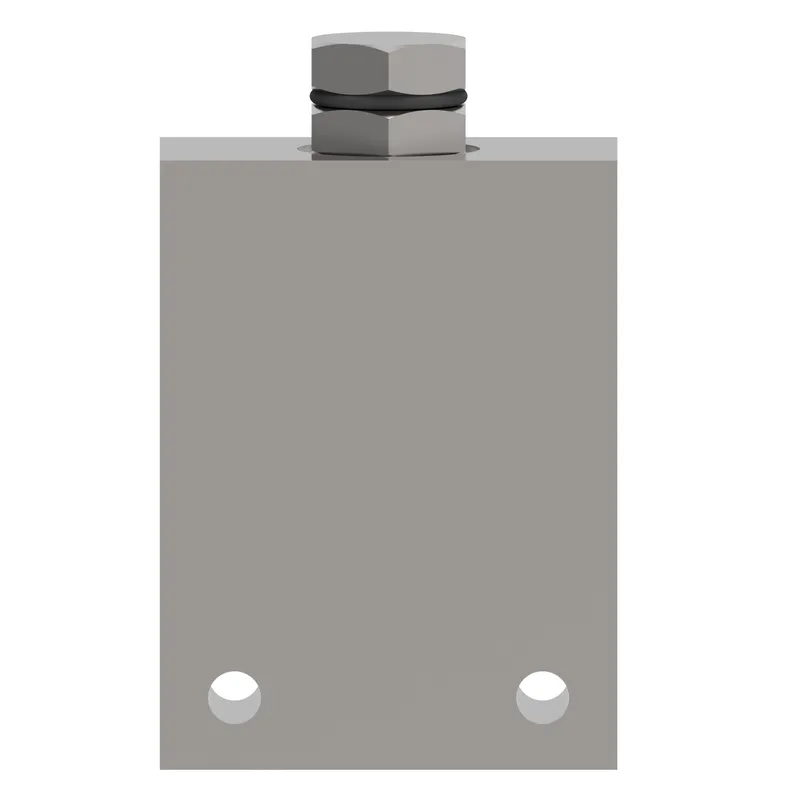

Danfoss 02-163539
PTS1-16-12H-160, PTS1-16-12H-160
- MPN
- 02-163539
- Category
- Cartridge valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-163539?
Danfoss PTS1-16-12H-160, PTS1-16-12H-160, manufacturer part number 02-163539. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation option | None |
| Adjustment type | None |
| Brand | Vickers by Danfoss |
| Cavity | C-16-4 |
| Detent option | No |
| Flow rate GPM | 35.00 |
| Flow rate LPM | 132.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pilot to shift valve |
| Housing | Yes |
| Housing material | Aluminum |
| Installation type | Screw-in Cartridge |
| Leakage | 164 cc/min |
| Model Code 1 | PTS1-16-12H-160 |
| Number of housing ports | 4 |
| Number of valve ports | 4 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Port size | 3/4" |
| Port type | SAE |
| Pressure rating BAR | 210.00 |
| Pressure rating PSI | 3000.00 |
| Product height in | 6.370 |
| Product height mm | 161.798 |
| Product length in | 4.000 |
| Product length mm | 101.600 |
| Product width in | 2.000 |
| Product width mm | 50.800 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Style | 3-Way 2-Position |
| Torque into aluminium cavity | 108-122 Nm |
| Torque into steel cavity | 136-149 Nm |
02-163539: frequently asked questions
When can 02-163539 be shipped?
02-163539 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-163539 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-163539 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-163539, subject to availability and destination.
