Danfoss 02-163503

Cartridge valve

MPN: 02-163503
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-163503?

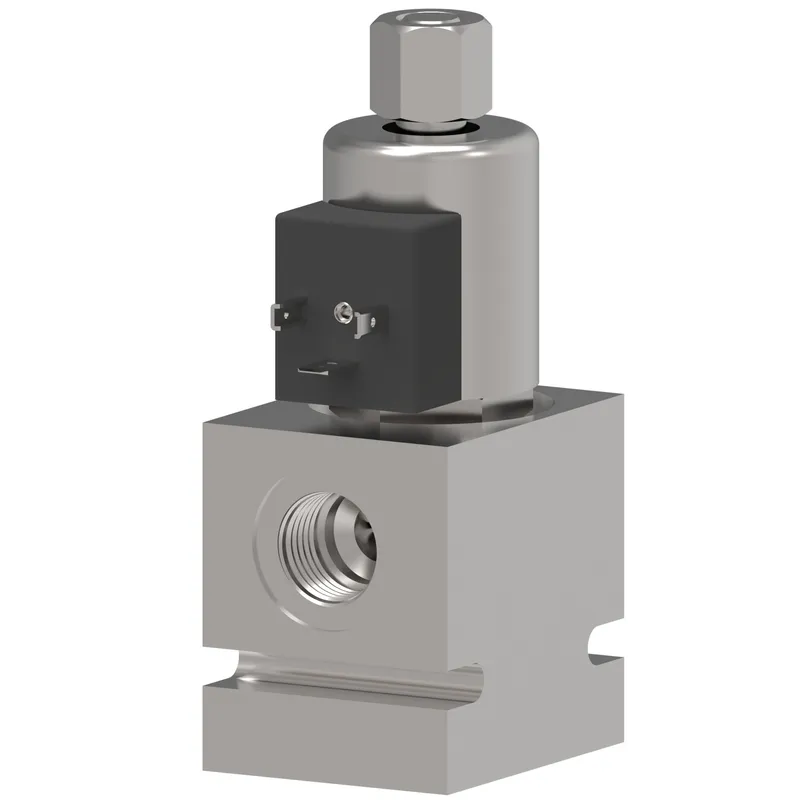

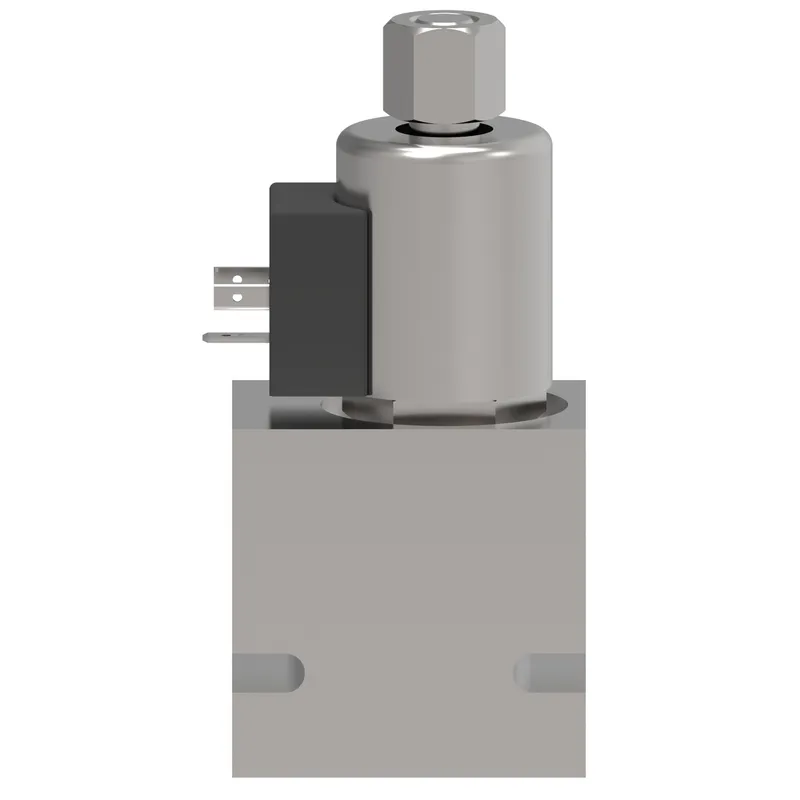

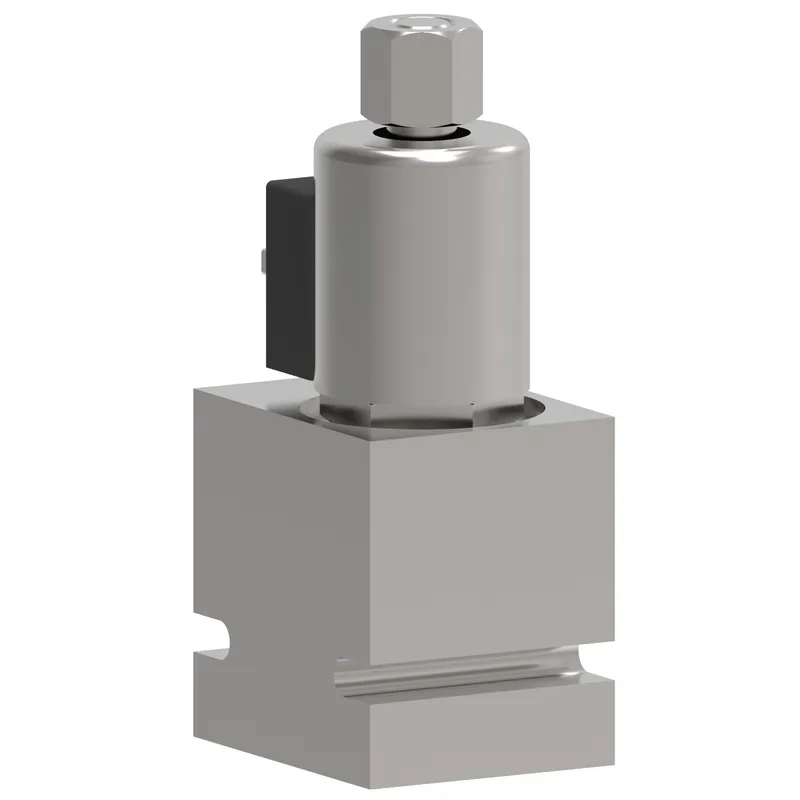

Danfoss SV3-20V-0-16H-115AG, SV3-20-V-O-16H-115A-G, manufacturer part number 02-163503. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-20-2
Coil series	J Series
Coil termination	DIN 43650
Diode	No
Flow rate GPM	60.00
Flow rate LPM	227.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Model Code 1	SV3-20-V-O-16H-115A-G
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Electrically operated
Override type	None
Port size	1"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	4.000
Product length in	7.000
Product length mm	177.800
Product width in	3.250
Product width mm	82.550 mm
Recommended filtration level	18/16/13
Seal type	Viton
Special features	None
Style	2-Way, 2-Position, Poppet, NO
Torque into aluminium cavity	128-155 Nm
Voltage	115 V
Voltage type	AC

02-163503: frequently asked questions

When can 02-163503 be shipped?

02-163503 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-163503 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-163503 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-163503, subject to availability and destination.
