Home / Danfoss (Drives) / Cartridge valves / Danfoss 02-161199
Danfoss (Drives)

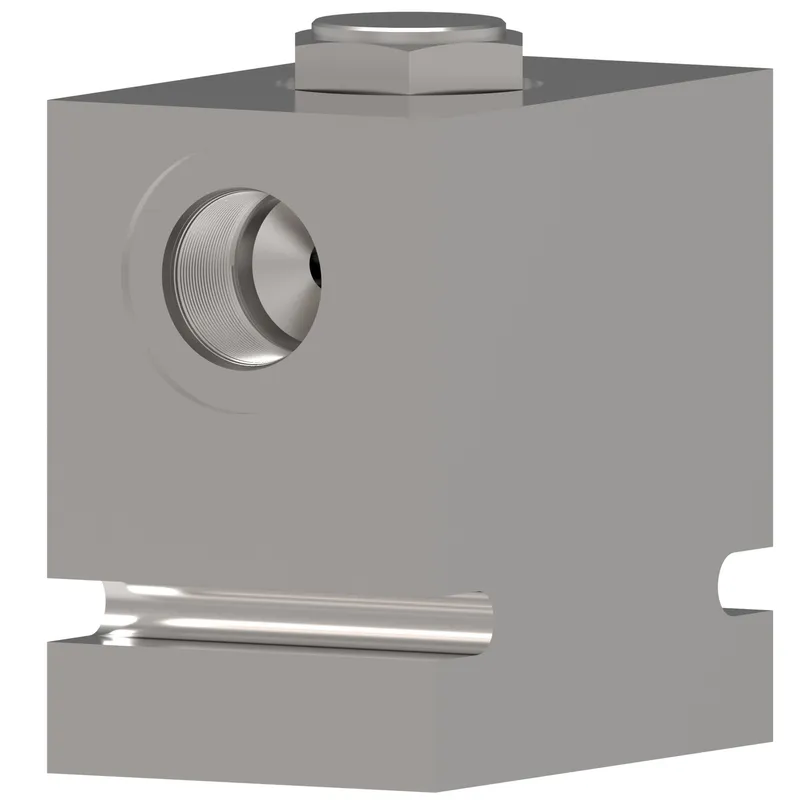

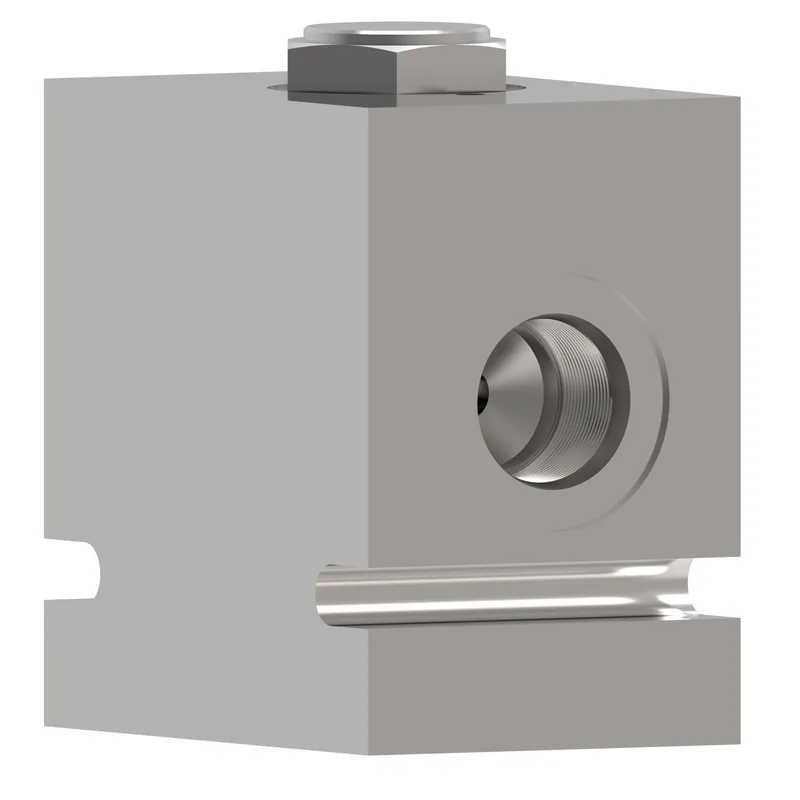

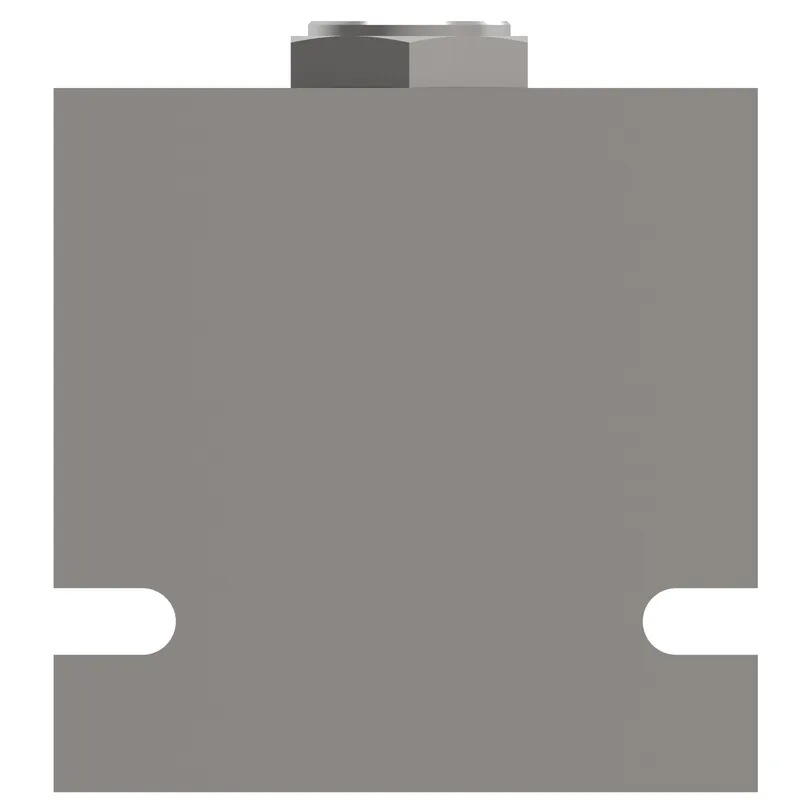

Danfoss 02-161199

SPC1-10-P-6T, SPC1-10-P-6T

MPN
02-161199
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-161199?

Danfoss SPC1-10-P-6T, SPC1-10-P-6T, manufacturer part number 02-161199. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

BrandVickers by Danfoss
CavityInline
Cracking pressure BAR4.10000000
Cracking pressure PSI54.00000000
Flow rate GPM7.90
Flow rate LPM30.000
Fluid compatibilityMIL-H-5606, SAE10, SAE20, etc
FunctionPilot Operated Check Valve
HousingYes
Housing materialAluminum
Installation typeScrew-in Cartridge
Leakage0.25 cc/min
Model Code 1SPC1-10-P-6T
Number of housing ports3
Number of valve ports3
Operating temperature-40 C to 120 C (-40 to 248 F)
OperationPilot operated
Pilot piston sealNo
Pilot ratio4:1
Port size3/8"
Port typeSAE
Pressure rating BAR350.00
Pressure rating PSI5000.00
Product height in2.500
Product height mm63.500
Product length in3.500
Product length mm88.900
Product width in1.250
Product width mm31.750 mm
Recommended filtration level18/13
Seal typeBuna-N
Special featuresNone
StylePoppet
Valve Torque into cavity25-30 Nm

02-161199: frequently asked questions

When can 02-161199 be shipped?

02-161199 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-161199 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-161199 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-161199, subject to availability and destination.
