Home / Danfoss (Drives) / Cartridge valves / Danfoss 02-161183
Danfoss (Drives)

Danfoss 02-161183

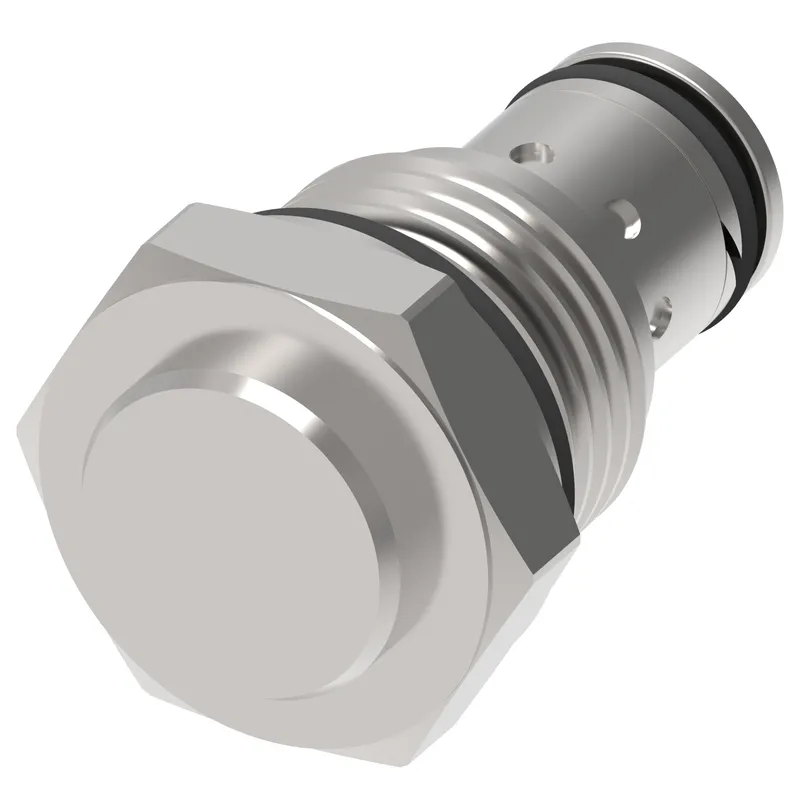

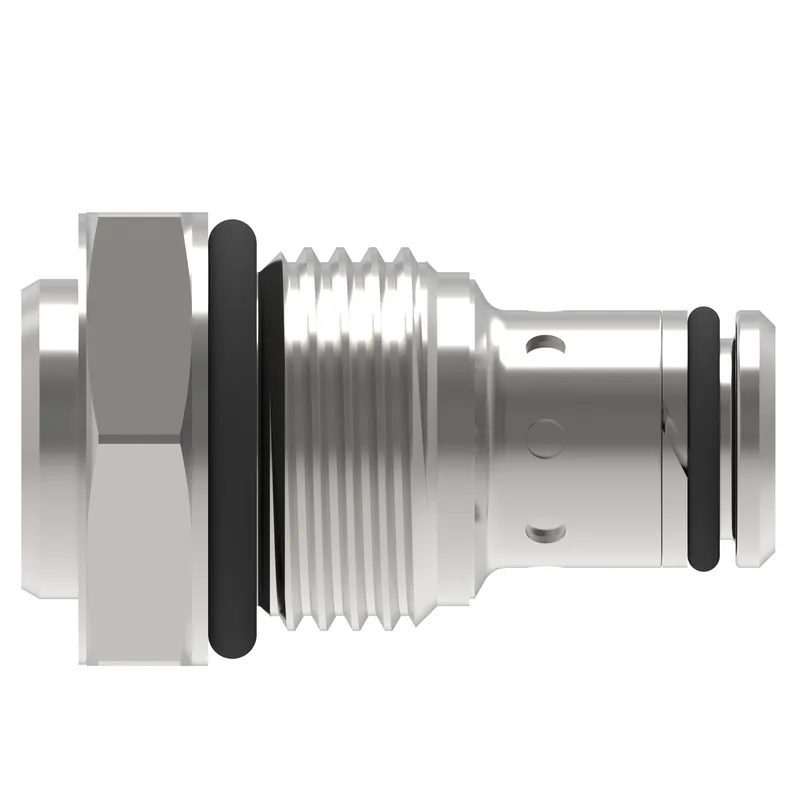

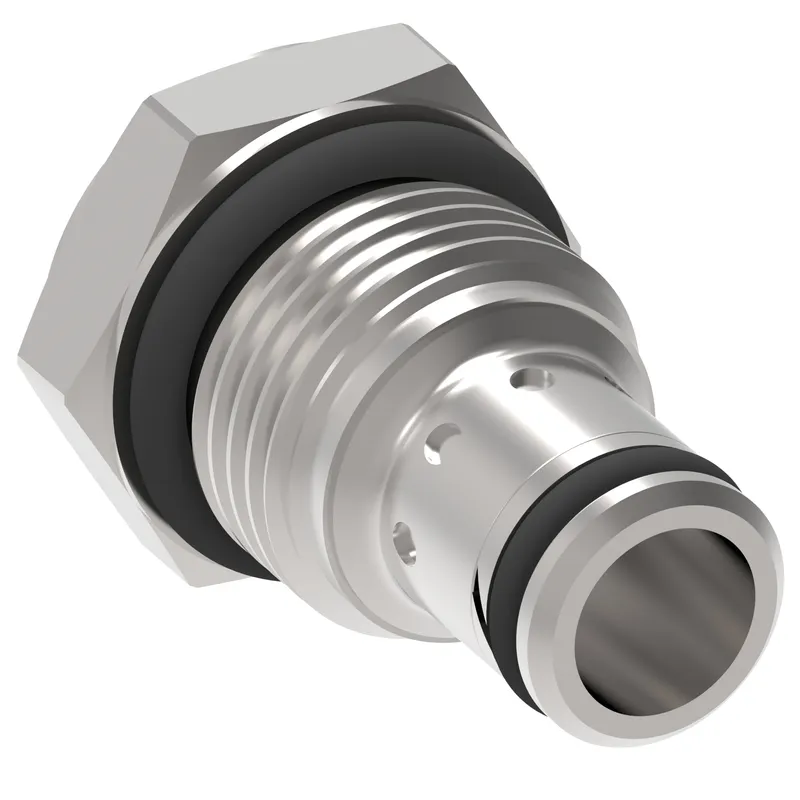

CV1-10V-P-0-65 CHECK CART POPPET TYPE, CV1-10-V-P-0-65

MPN
02-161183
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-161183?

Danfoss CV1-10V-P-0-65 CHECK CART POPPET TYPE, CV1-10-V-P-0-65, manufacturer part number 02-161183. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

BrandVickers by Danfoss
CavityC-10-2
Cracking pressure BAR0.20000000
Cracking pressure PSI2.00000000
Flow rate GPM30.00
Flow rate LPM114.000
Fluid compatibilityMIL-H-5606, SAE10, SAE20, etc
FunctionCheck Valve
HousingNo
Installation typeScrew-in Cartridge
Leakage0.3 cc/min
Model Code 1CV1-10-V-P-0-65
Number of housing ports2
Number of valve ports2
Operating temperature-40 C to 120 C (-40 to 248 F)
OperationDirect acting
Pilot piston sealNo
Port typeCartridge Only
Pressure rating BAR350.00
Pressure rating PSI5000.00
Product height in1.000
Product height mm25.400
Product length in1.860
Product length mm47.244
Product width in1.000
Product width mm25.400 mm
Recommended filtration level18/13
Seal typeViton
Special featuresNone
StylePoppet

02-161183: frequently asked questions

When can 02-161183 be shipped?

02-161183 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-161183 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-161183 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-161183, subject to availability and destination.
