Danfoss 02-149410

DG5S4 02 2A T M U B5 20, DG5S4022ATMUB520

MPN: 02-149410
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

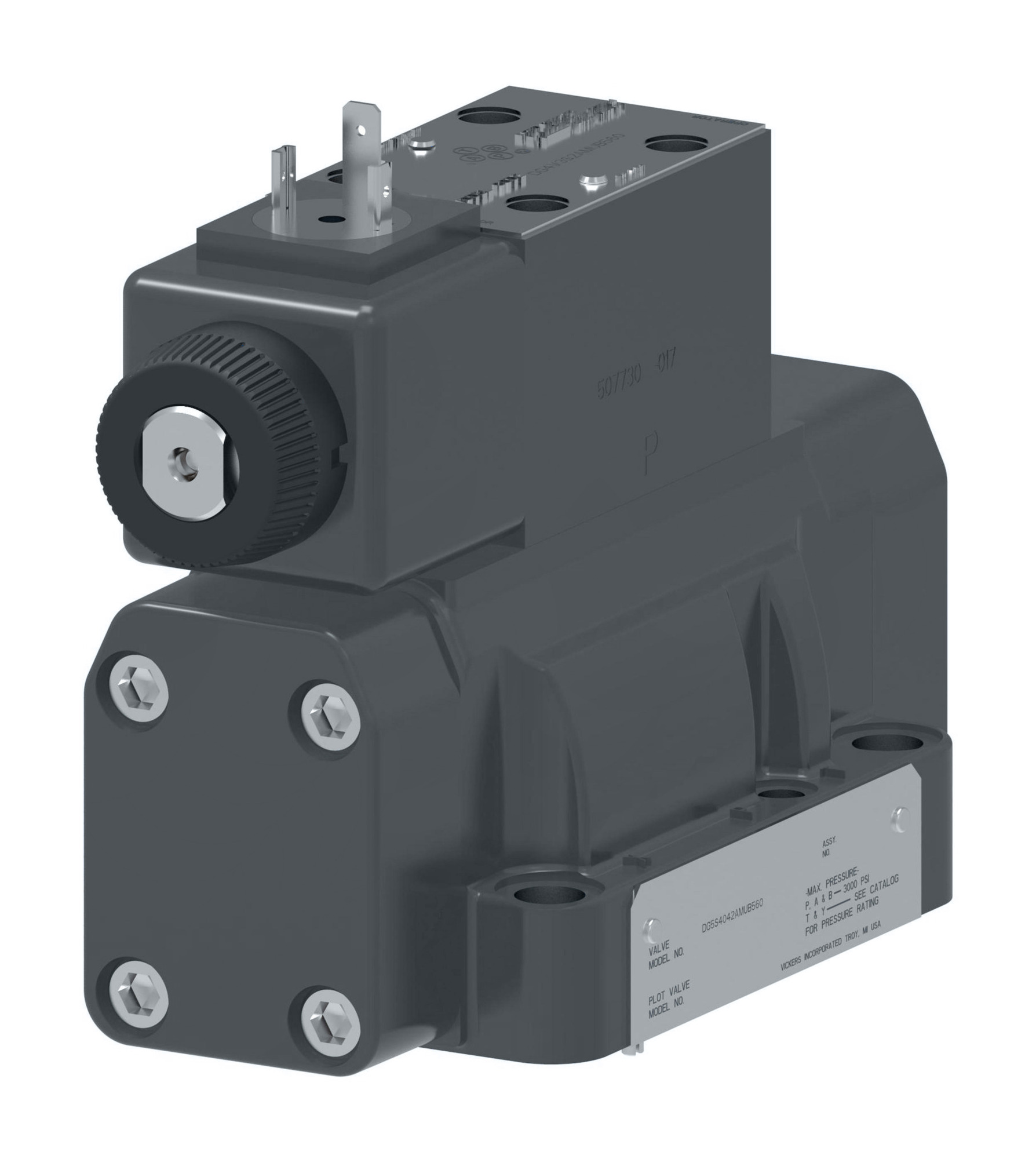

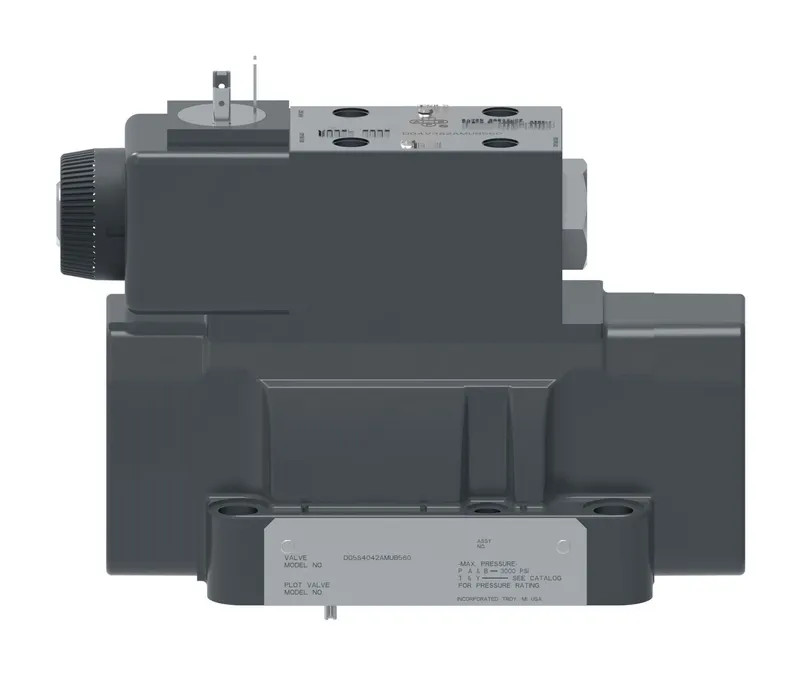

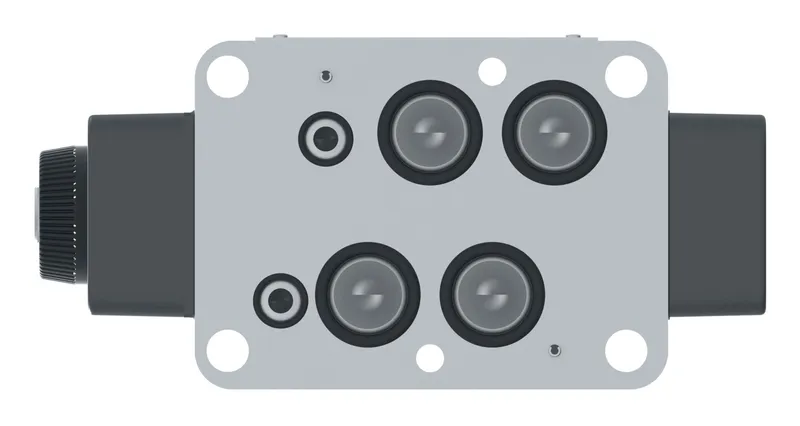

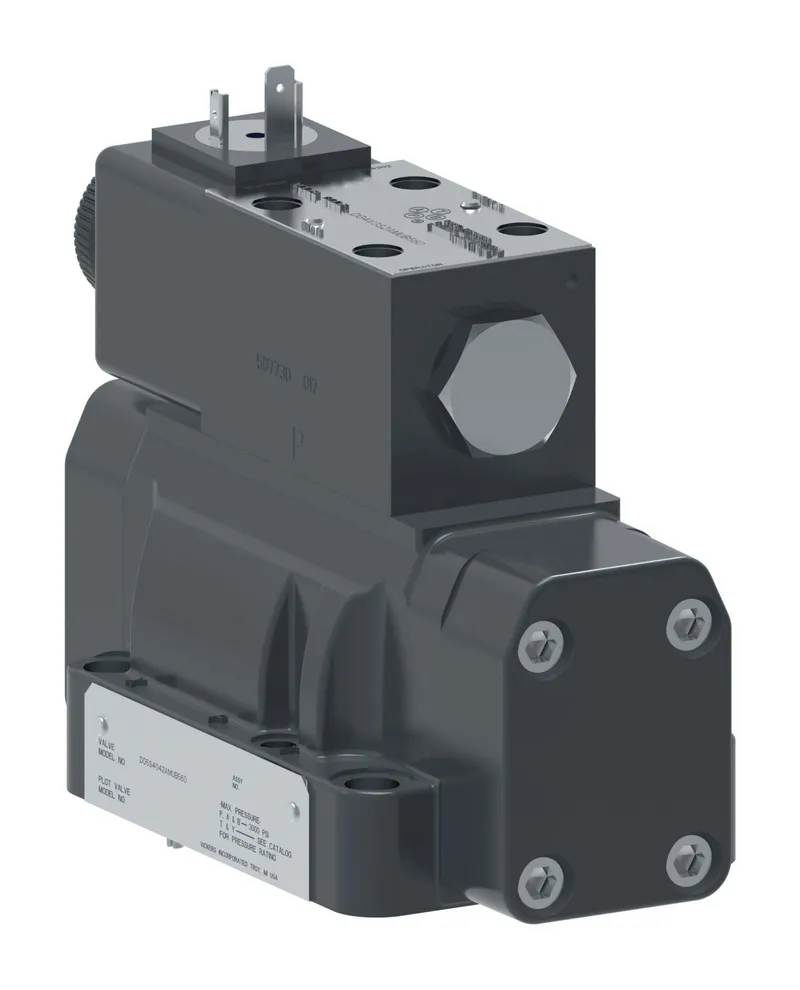

What is the Danfoss 02-149410?

Danfoss DG5S4 02 2A T M U B5 20, DG5S4022ATMUB520, manufacturer part number 02-149410. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	20 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Ext pilot pressure	Internal
Flow rate upto GPM	115.0
Flow rate upto LPM	30.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-05
Manual override	Plain
Model Code 1	DG5S4022ATMUB520
Pressure rating BAR	210
Pressure rating PSI	3000
Product height in	6.170
Product height mm	156.718
Product length in	7.870
Product length mm	199.898
Product width in	2.630
Product width mm	66.802
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Spool Type	Spool 2
Spring Arrangement	Spring offset
Stage	Two stage
Tank port rating BAR	100.0
Tank port rating PSI	1450
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve

02-149410: frequently asked questions

When can 02-149410 be shipped?

02-149410 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-149410 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-149410 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-149410, subject to availability and destination.
