Danfoss 02-149361

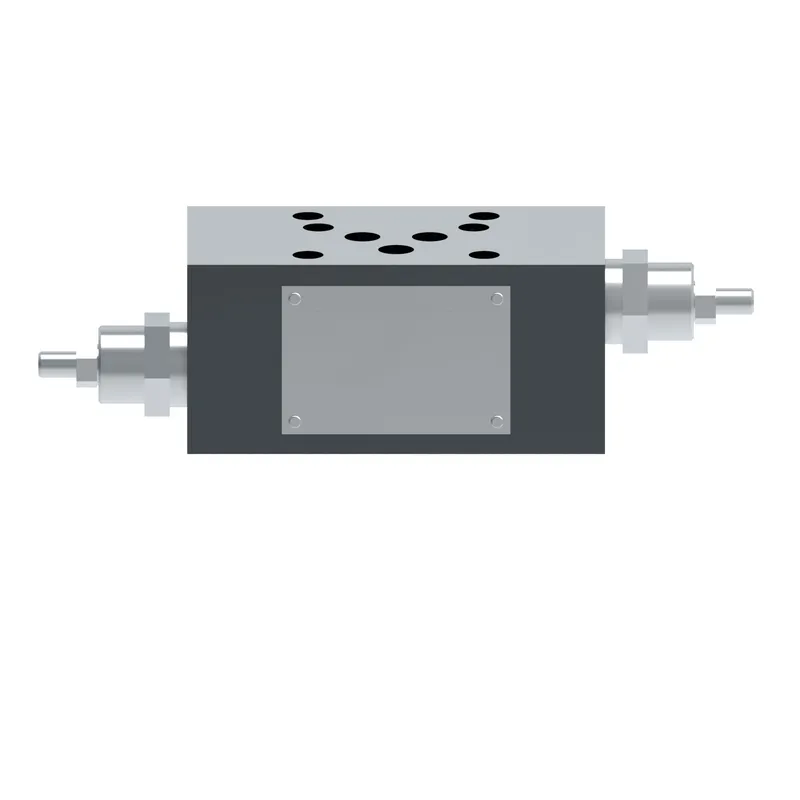

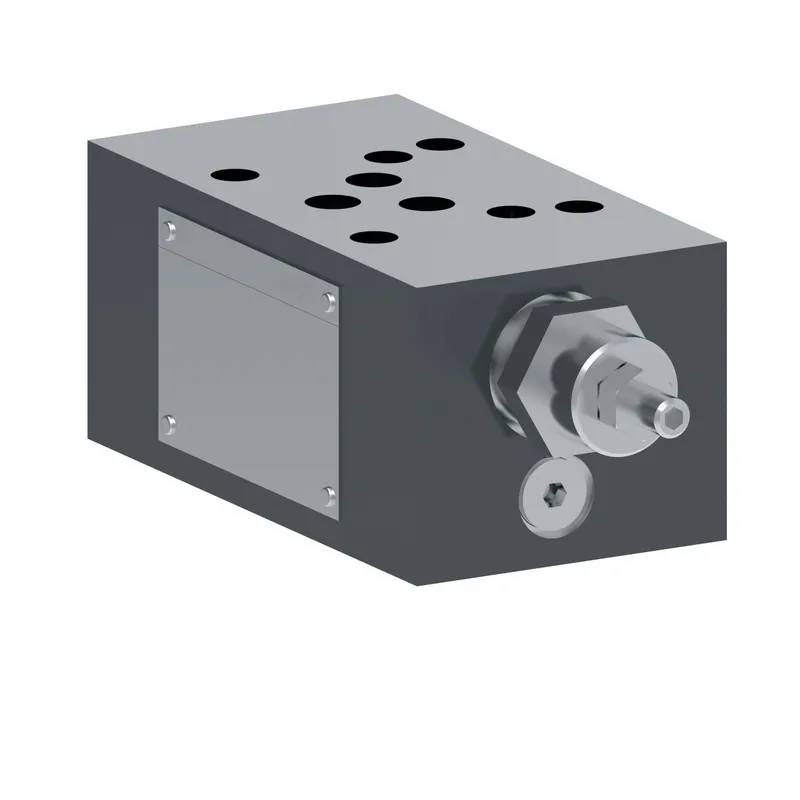

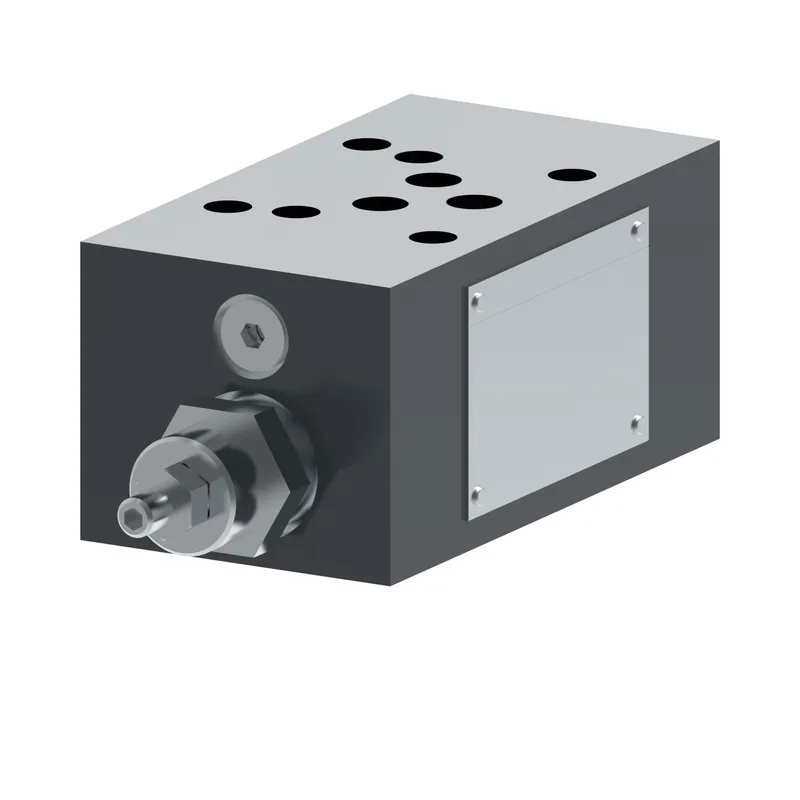

DGMC2 5 AB BW BA BW S 30, DGMC25ABBWBABWS30

MPN: 02-149361
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-149361?

Danfoss DGMC2 5 AB BW BA BW S 30, DGMC25ABBWBABWS30, manufacturer part number 02-149361. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Screw and locknut
Brand	Vickers by Danfoss
Design Series	30 Series
External drain	No
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Petroleum oils
Function 1 pressure adjustment	4-100 bar (60-1450 psi)
Function 2 pressure adjustment	4-100 bar (60-1450 psi)
Gauge Port Thread Type	SAE-4 o-ring boss port
Interface	ISO4401-05
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMC25ABBWBABWS30
P port acted upon	B cylinder port
Performance	Standard
Port drained into	B cylinder port
Port drained into dual	A cylinder port
Port operated upon	A cylinder port
Pressure adjustment range	4-100 BAR (60-1450 PSI)
Product height in	1.970
Product height mm	50.038
Product length in	8.460
Product length mm	214.884
Product width in	2.820
Product width mm	71.628
Remote control port	No
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Dual relief function valve
Working temp max C	80
Working temp max F	176
Working temp min C	0
Working temp min F	32
