Danfoss 02-137768

DG4V 3 2AL M FPA3WL B6 6 0, DG4V32ALMFPA3WLB660

MPN: 02-137768
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

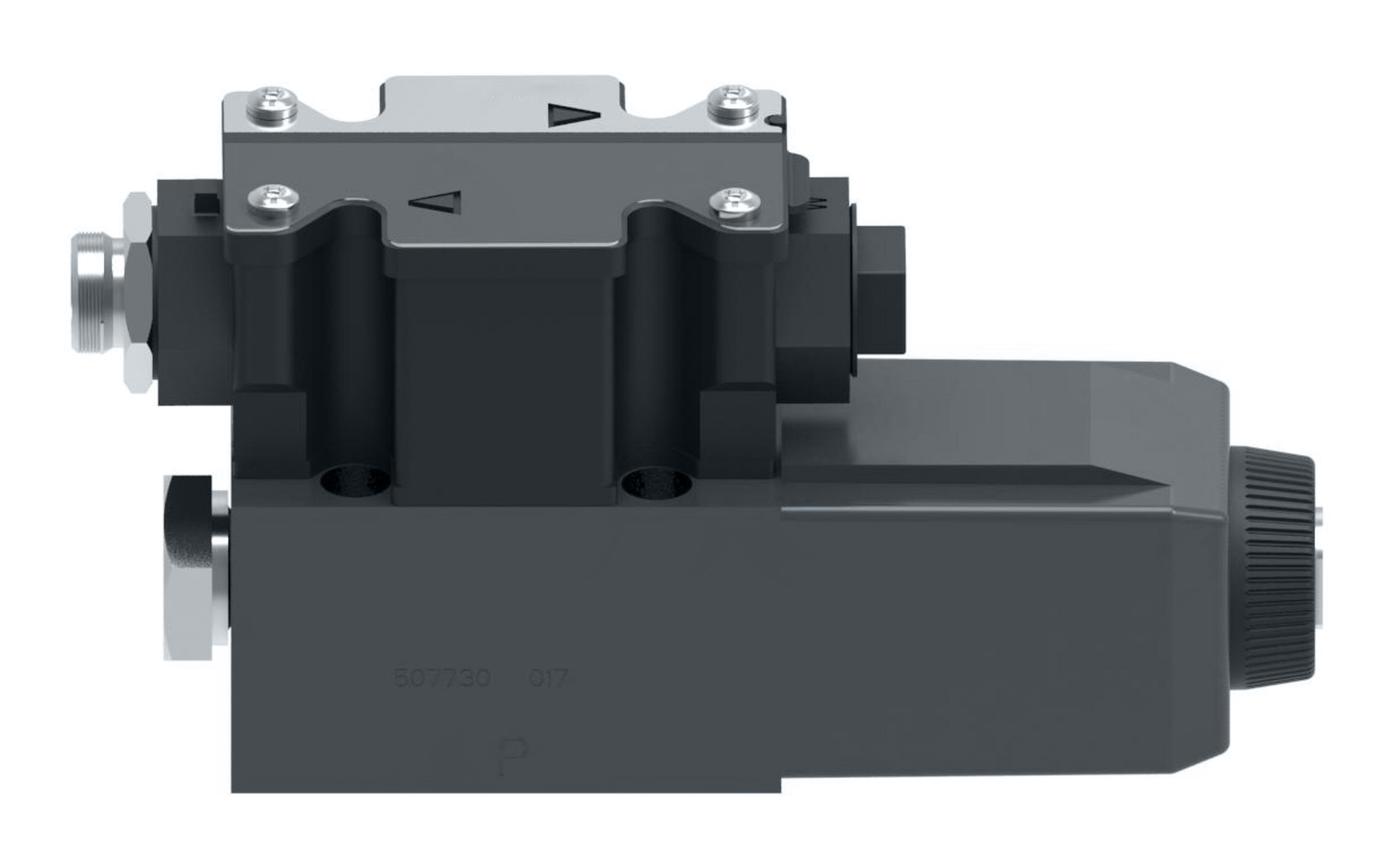

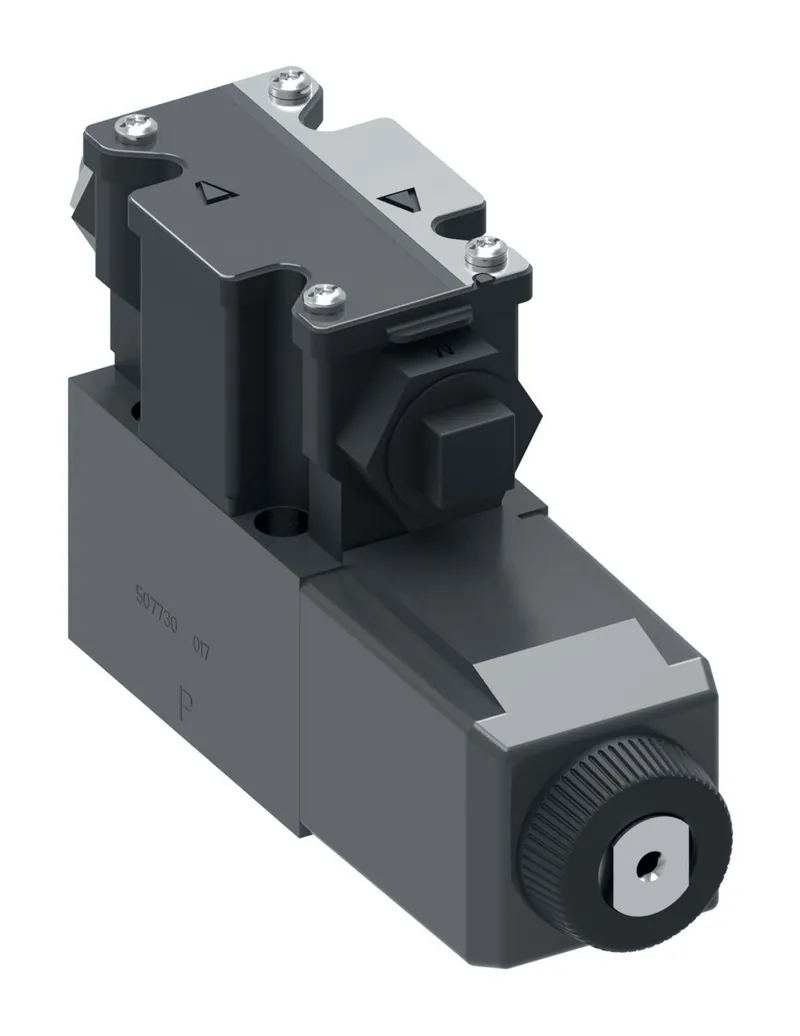

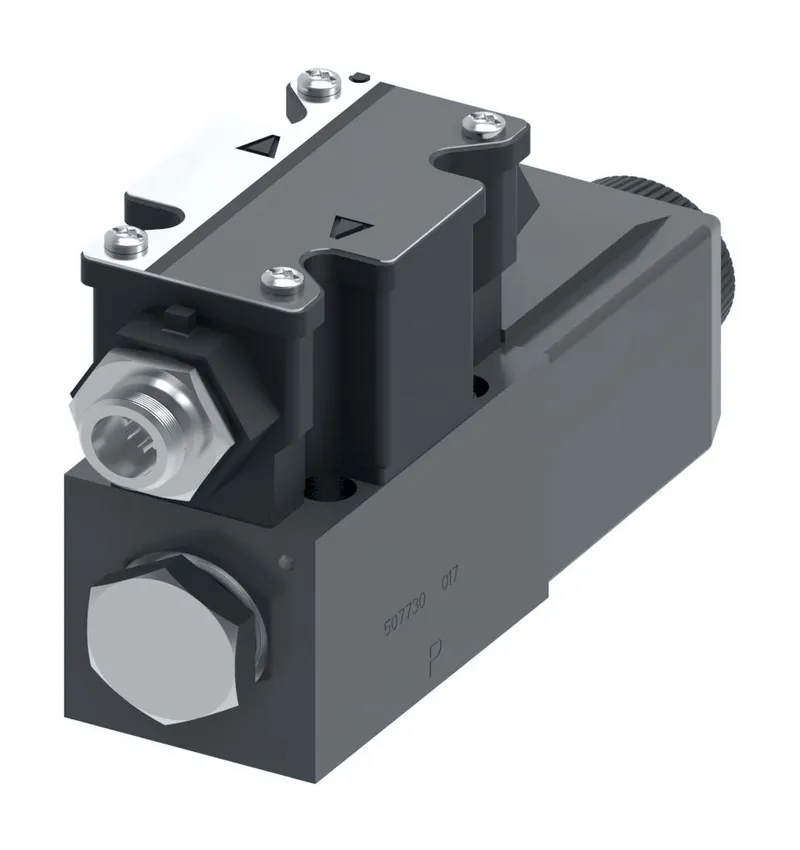

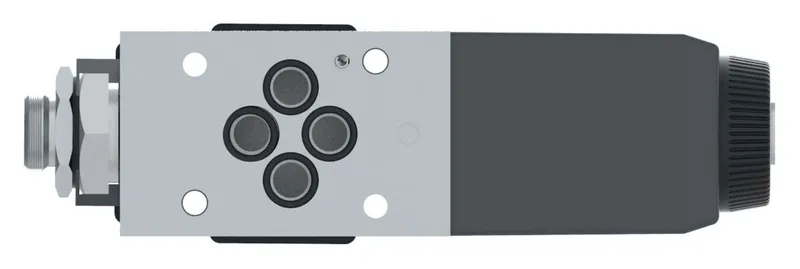

What is the Danfoss 02-137768?

Danfoss DG4V 3 2AL M FPA3WL B6 6 0, DG4V32ALMFPA3WLB660, manufacturer part number 02-137768. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	60 Series
Electrical connection	3-Pin connector
Energ Time	15-23 ms
Flow rate upto GPM	21.0
Flow rate upto LPM	80.0
Fluid cleanliness	19/17/14 micron
Fluid compatibility	Petroleum Oils
Indicator Light	Yes
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V32ALMFPA3WLB660
Performance	High performance
Power Consumption	61VA 50HZ - 58VA 60HZ
Pressure ratiing PSI	5000.00
Pressure rating BAR	350.00
Seal type	Viton
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset end to end LH
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210.0
Tank port rating PSI	3000
Valve mount type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
