Danfoss 02-109879

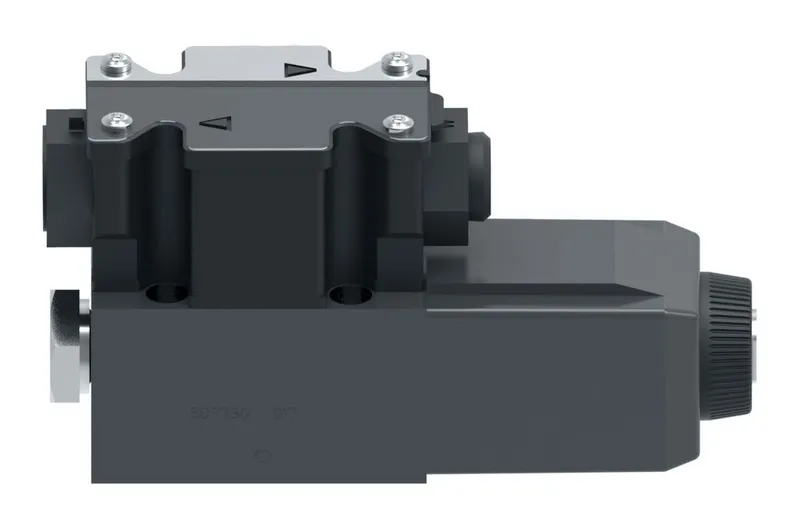

DG4V 3S 0BL M FW B5 60 P 10, DG4V3S0BLMFWB560P10

MPN: 02-109879
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-109879?

Danfoss DG4V 3S 0BL M FW B5 60 P 10, DG4V3S0BLMFWB560P10, manufacturer part number 02-109879. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	60 Series
Electrical connection	Flying lead 1/2" NPT housing
Energ Time	18-32 ms
Flow rate upto GPM	10.5
Flow rate upto LPM	40.0
Fluid cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator light	No
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V3S0BLMFWB560P10
Orifice port P mm	1.0
Performance	Standard performance
Power Consumption	49VA 50HZ - 48VA 60HZ
Pressure rating Bar	350
Pressure rating PSI	5000
Product height in	3.570
Product length in	5.750
Product length mm	146.050
Product width in	1.800
Product width mm	45.720 mm
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 0
Spring arrangement	Spring offset end to centre LH
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	100
Tank port rating PSI	1450
Valve mount type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-109879: frequently asked questions

When can 02-109879 be shipped?

02-109879 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-109879 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-109879 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-109879, subject to availability and destination.
