Danfoss 02-109850

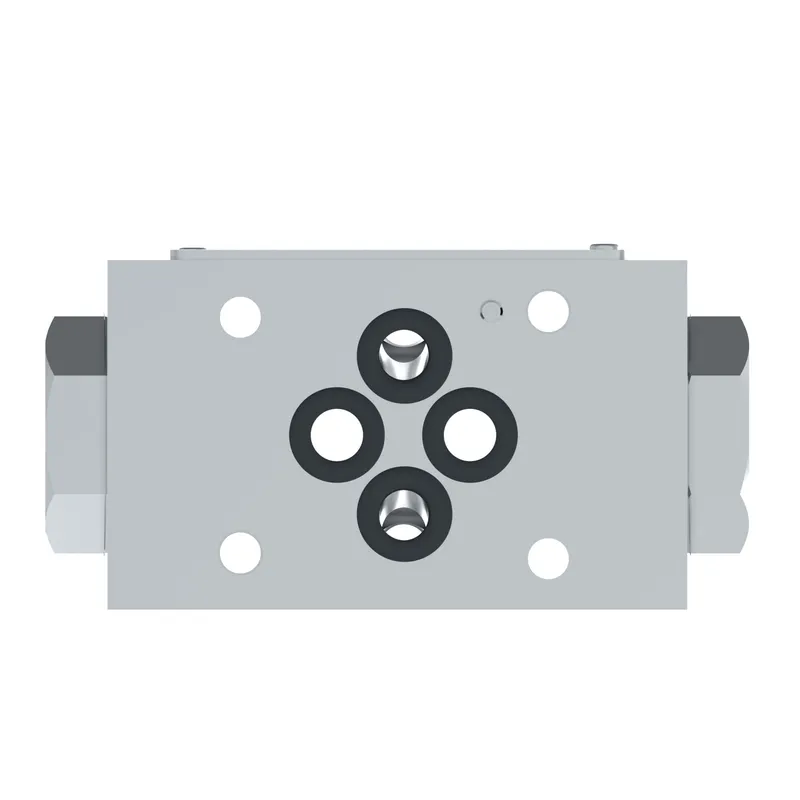

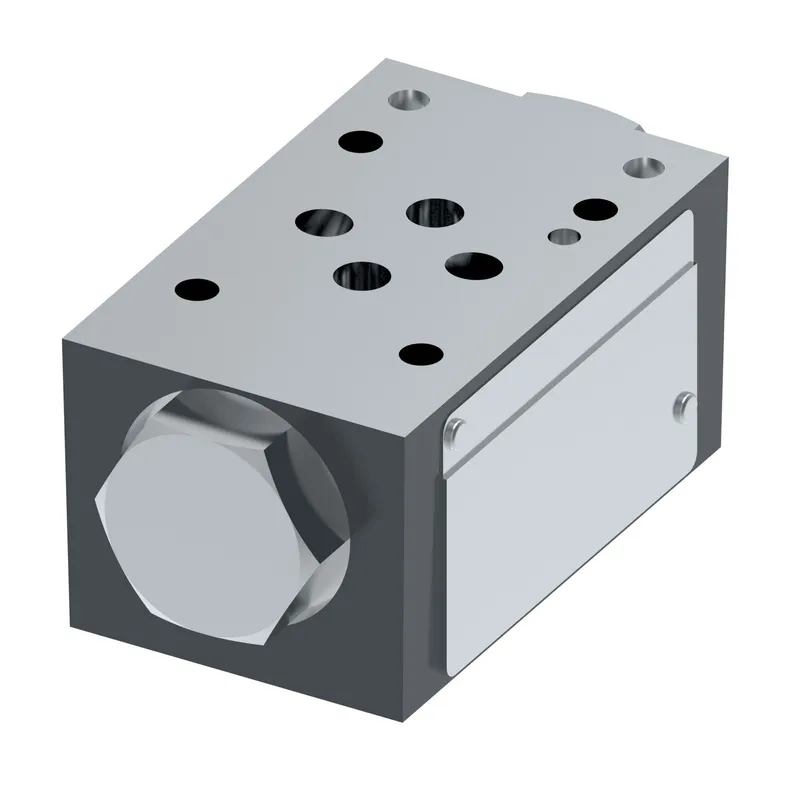

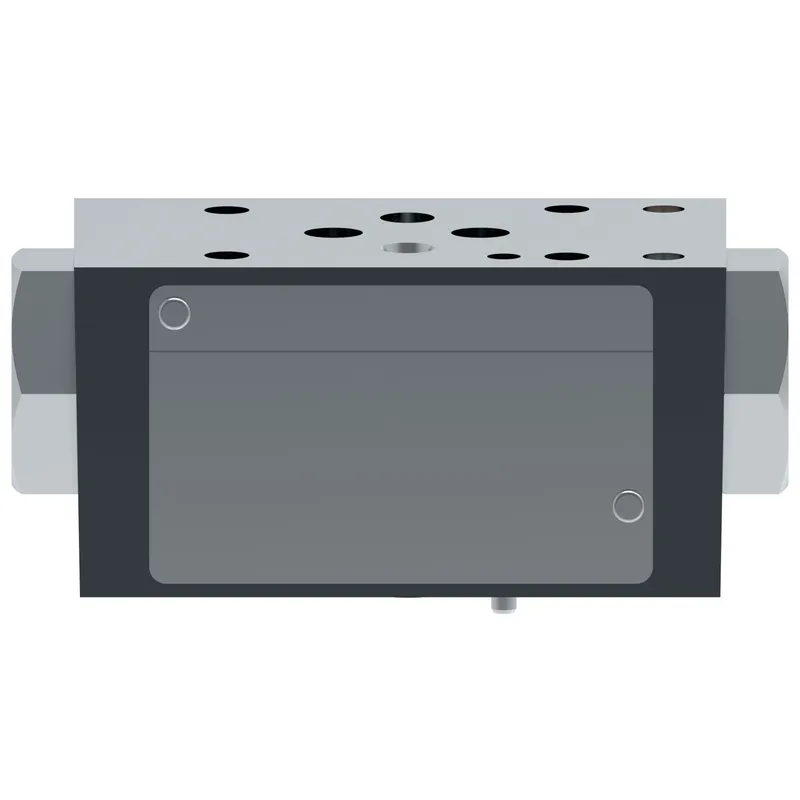

DGMPC 3 DABK 41, DGMPC3DABK41

MPN: 02-109850
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-109850?

Danfoss DGMPC 3 DABK 41, DGMPC3DABK41, manufacturer part number 02-109850. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Pressure operated
Brand	Vickers by Danfoss
Cracking pressure bar	1.00
Cracking pressure psi	15
Decopression feature	10:1 decompression ratio
Design Series	41 Series
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Function	Check in line A, pilot operated from line B
Interface	ISO4401-03
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMPC3DABK41
Performance	Standard
Product height in	1.570
Product height mm	39.878
Product length in	3.820
Product length mm	97.028
Product width in	1.000
Product width mm	25.400 mm
Seal type	Viton
Special features	None
Valve mount type	Subplate/manifold mounted
Valve type	PO check valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
