What is the B&R X67BC7321?

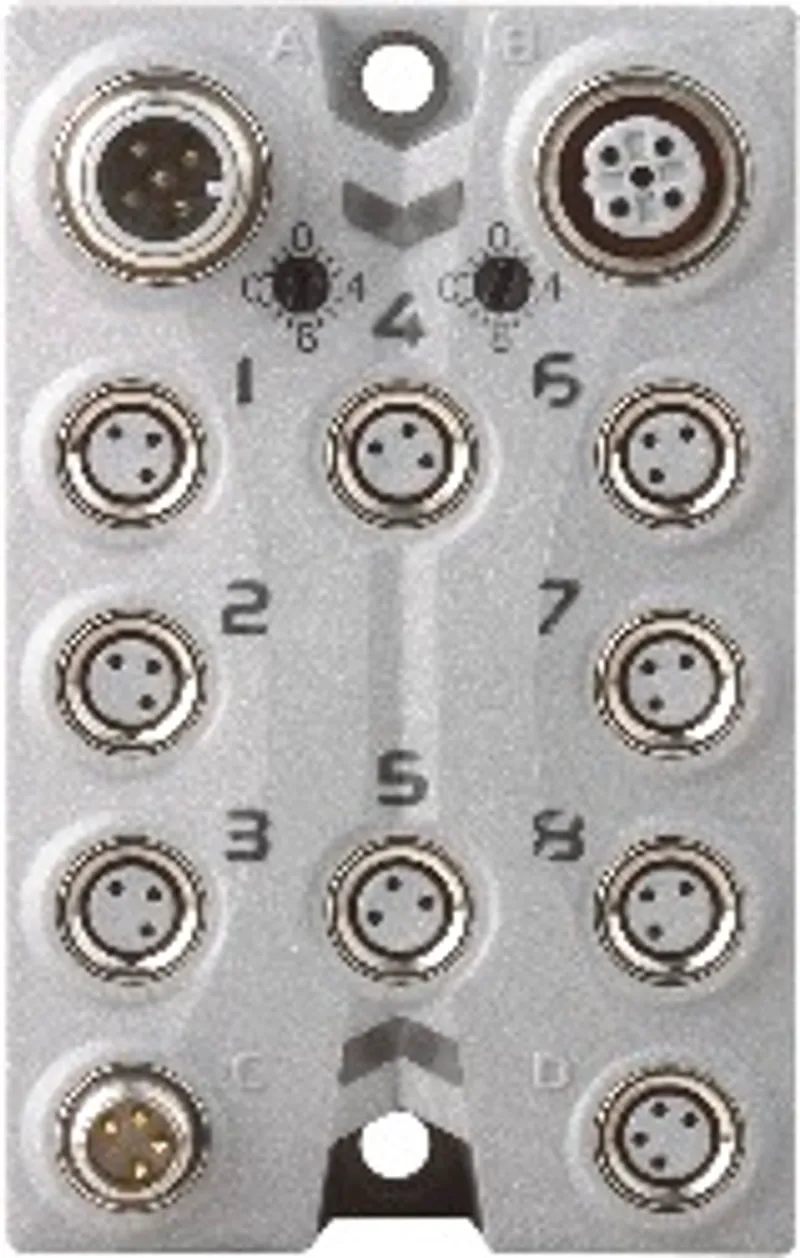

X67 CAN I/O bus controller, X2X Link power supply 3 W, 8 digital channels configurable as inputs or outputs, 24 VDC, 0.5 A, configurable input filter, 2 event counters 50 kHz, LED status indicators
Specifications
General Information
| C-UL-US Listed | In preparation |
| B&R ID Code | $142E |
| Module Type | B&R X67 bus controller |
| Protection | IP67 |
| Mounting Orientation | Any |
| Power Consumption of Bus Connection | Max. 2.1 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +85 °C |
| Number of Inputs/Outputs | 8, can be set using software |
| Electrical Isolation – Input - Bus | Yes |
| Electrical Isolation – Input - Input | No |
| Electrical Isolation – Input - Output | No |
| Isolation Voltage between Input and Bus | 500 Veff |
| Rated Voltage – Minimum | +18 VDC |
| Rated Voltage – Nominal | +24 VDC |
| Rated Voltage – Maximum | +30 VDC |
| Integrated Protection | Reverse polarity protection |
| Power Consumption – Internal | Max. 5.1 W including X2X Link supply |
| Power Consumption – Sensor Supply | Max. 12 W |
| Voltage | Module supply minus voltage drop for short circuit protection |
| Voltage Drop for Short Circuit Protection at 500 mA | Max. 2 VDC |
| Total Current | Max. 500 mA |
| Short Circuit Protection | Yes |
| Type | CAN |
| Controller | Controller SJA 1000 |
| Processor | 16 Bit RISC Processor |
| Memory | 128 KByte |
| Design | M12 circular plugs (plug on the module) |
| Electrical Isolation – CAN - X2X Link | No |
| Electrical Isolation – CAN I/O | Yes |
| Maximum Distance | 1,000 m |
| Maximum Baud Rate | 1 MBit/s |
| Network Capable | Yes |
| Bus Termination Resistor | Can be optionally screwed onto the T-connector |
Input Characteristics
| Number of Inputs | Max. 8 |
| Design | IEC1131 - Type 1 |
| Wiring | Sink |
| Status Display | Input status per channel Supply voltage, bus function, I/O function |
| Input Current at 24 VDC Rated Voltage | Approx. 4 mA |
| Voltage – LOW Range | < 5 VDC |
| Voltage – HIGH Range | > 15 VDC |
| Input Filter Hardware – Channel 1 -4 | < 10 µs |
| Input Filter Hardware – Channel 5 -8 | < 70 µs |
Output Characteristics
| Number of Outputs | Max. 8 |
| Design | FET positive switching |
| Status Display | Per output B&R X67 Modules |
| Diagnosis Status | Output monitoring with 10 ms delay |
| Continuous Current per – Output | Max. 0.5 A |
| Continuous Current per – Module | Max. 4 A |
| Leakage Current when Switched Off | 5 µA |
| Residual Voltage | <0.3 V @ 0.5 A |
| Short Circuit - Peak Current | <12 A |
| Switching On after Overload Cutoff | Approx. 10 ms (depends on the module temperature) |
| Protection | Thermal cutoff Integrated protection for switching inductances Reverse polarity protection |
| Switching Delay – Log. 0 - Log. 1 | < 400 µs |
| Switching Delay – Log. 1 - Log. 0 | < 400 µs |
| Switching Frequency – Resistive Load | Max. 100 Hz |
| Braking Voltage when Switching Off | 50 VDC |
| Counter 1 | Input 1 |
| Counter 2 | Input 3 |
| Signal Form | Square wave pulse |
| Input Frequency | Max. 50 kHz |
| Count Frequency | Max. 50 kHz |
| Counter Size | 16-bit |
| Gate Measurement on Channel 1 | Input 2 |
| Gate Measurement on Channel 2 | Input 4 |
| Signal Form | Square wave pulse |
| Evaluation | Positive edge - Negative edge |
| Pulse Length | ≥20 µs |
| Length of Pauses Between Pulses | ≥100 µs |
| Internal Counter Frequency | 48 MHz, 3 MHz, 187.5 kHz |
| Counter Size | 16-bit |
Mechanical Characteristics
| Dimensions – Width | 53 mm |
| Dimensions – Height | 85 mm |
| Dimensions – Depth | 42 mm |
| Weight | Approx. 180 g |
