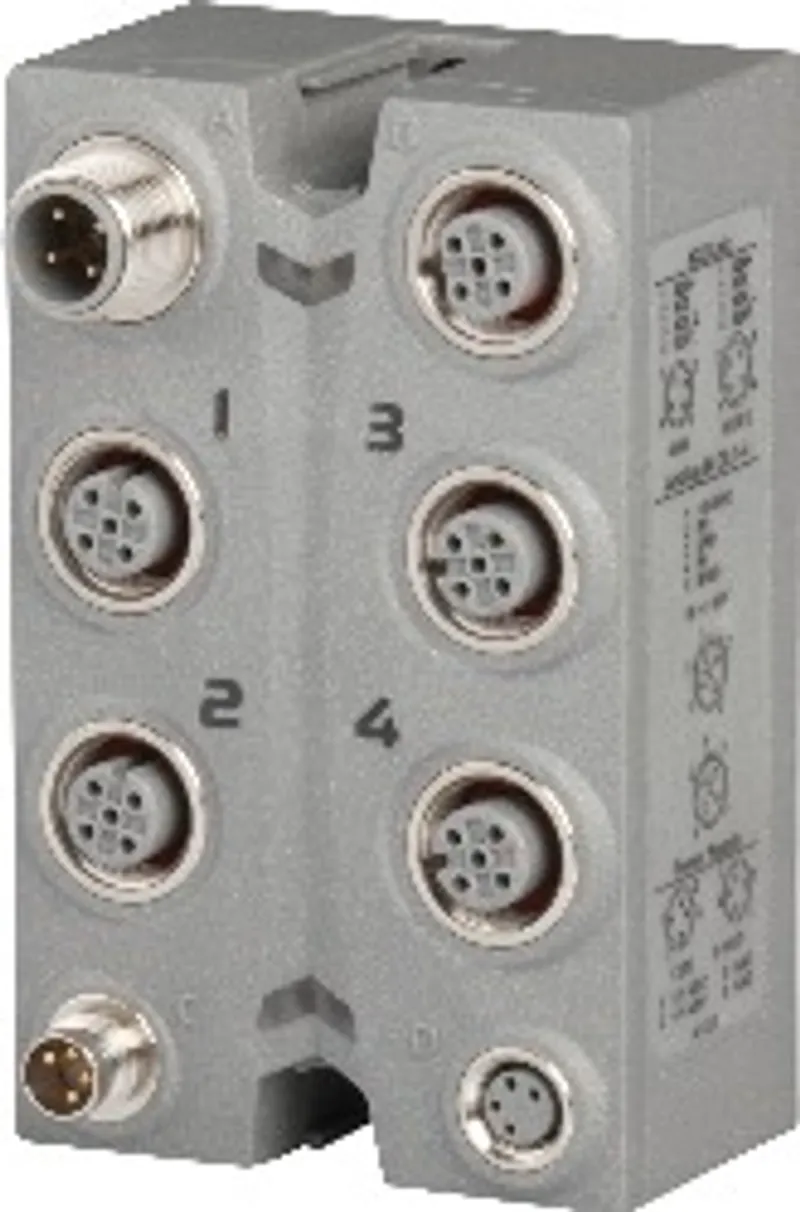

B&R X67AI1323

I/O module, 4 analog inputs 0 to 20 mA or 4 to 20 mA

MPN: X67AI1323
Category: Analog input modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R X67AI1323?

4 analog inputs 0 to 20 mA or 4 to 20 mA

Limit detection

Configurable digital input filters

Very short cycle times

Optimal shield grounding on all channels

The module is equipped with 4 inputs with 12-bit digital converter resolution. The range of the input signal is either 0 to 20 mA or 4 to 20 mA.

Specifications

Short description

I/O module

4 analog inputs 0 to 20 mA or 4 to 20 mA

General information

Diagnostics – Inputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Inputs	4x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	3 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x16F2
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Power consumption – Sensor power supply	Max. 12 W (note: The power consumption of the sensors connected to the module is not permitted to exceed 12 W.)
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Analog inputs

Output format – Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Output of digital value during overload – Undershoot	0x0000
Output of digital value during overload – Overshoot	0x7FFF
Max. error – Gain	0.1% (note: Based on the current measured value.)
Max. error – Offset	0.05% (note: Based on the entire measurement range.)
Common-mode rejection – DC	>50 dB
Common-mode rejection – 50 Hz	>50 dB
Input filter – Cutoff frequency	1 kHz
Input filter – Slope	40 dB
Input	0 to 20 mA or 4 to 20 mA
Input type	Differential input
Digital converter resolution	12-bit
Conversion time	400 µs for all inputs
Output format	INT
Load	<300 Ω
Input protection	Protection against wiring with supply voltage
Permissible input signal	Max. ±30 mA
Conversion procedure	Successive approximation
Max. gain drift	0.013 %/°C (note: Based on the current measured value.)
Max. offset drift	0.02 %/°C (note: Based on the entire measurement range.)
Common-mode range	±11 V
Crosstalk between channels	<-70 dB
Nonlinearity	<0.1% (note: Based on the entire measurement range.)
Insulation voltage between input and bus	500 V eff
Voltage drop at 20 mA	Typically 4.5 V

Sensor power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	190 g
