What is the B&R X67AI1223?

4 analog inputs ±10 V

Open/Short circuit detection

Configurable digital input filters

Very short cycle times

Optimal shield grounding on all channels

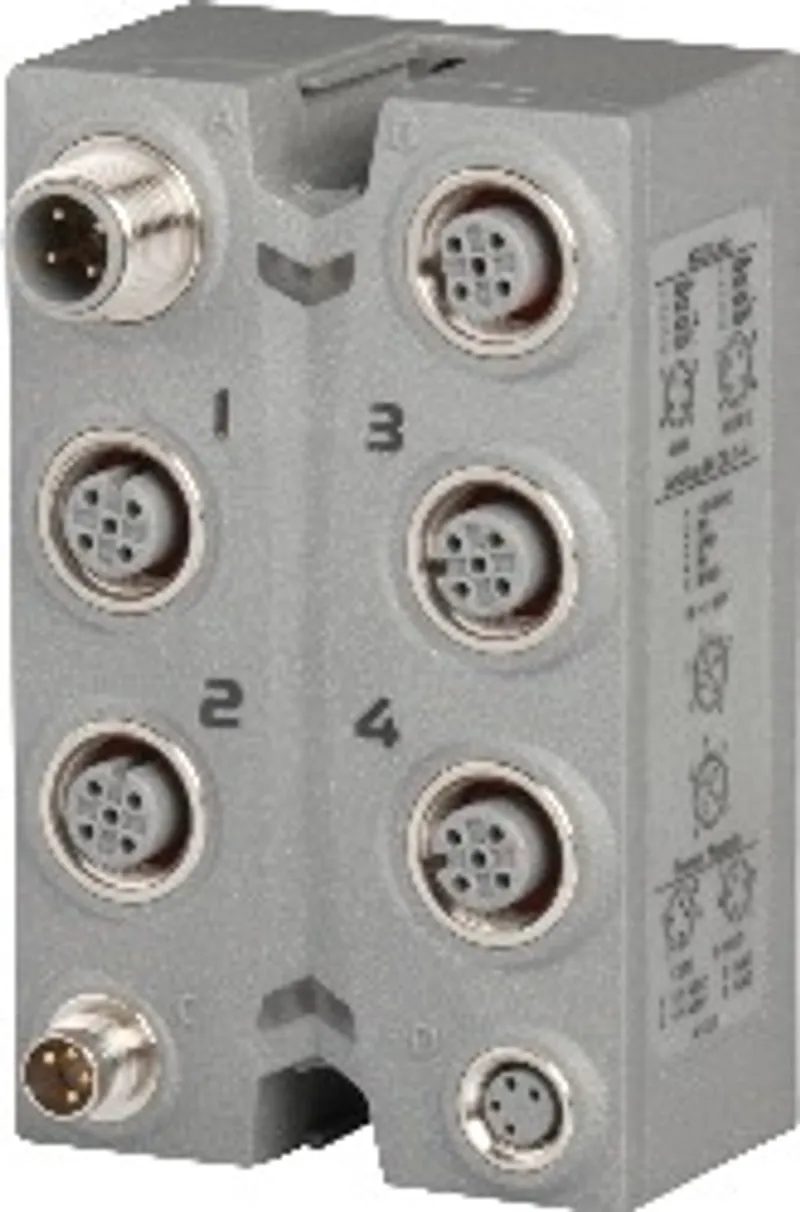

The module is equipped with 4 inputs with 12-bit digital converter resolution. The range of the input signal is ±10 V.

Specifications

Short description

I/O module

4 analog inputs ±10 V

General information

Diagnostics – Inputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Inputs	4x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	3 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x16F1
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Power consumption – Sensor power supply	Max. 12 W (note: The power consumption of the sensors connected to the module is not permitted to exceed 12 W.)
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Analog inputs

Output format – Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0010 = 4.882 mV
Output of digital value during overload – Undershoot	0x8001
Output of digital value during overload – Overshoot	0x7FFF
Max. error – Gain	0.1% (note: Based on the current measured value.)
Max. error – Offset	0.05% (note: Based on the entire measurement range.)
Common-mode rejection – DC	>50 dB
Common-mode rejection – 50 Hz	>50 dB
Input filter – Cutoff frequency	1 kHz
Input filter – Slope	40 dB
Input	±10 V
Input type	Differential input
Digital converter resolution	12-bit
Conversion time	400 µs for all inputs
Output format	INT
Input impedance in signal range	20 MΩ
Input protection	Protection against wiring with supply voltage
Permissible input signal	Max. ±30 V
Conversion procedure	Successive approximation
Max. gain drift	0.011%/°C (note: Based on the current measured value.)
Max. offset drift	0.009%/°C (note: Based on the entire measurement range.)
Common-mode range	±11 V
Crosstalk between channels	<-70 dB
Nonlinearity	<0.1% (note: Based on the entire measurement range.)
Insulation voltage between input and bus	500 V eff

Sensor power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	200 g
