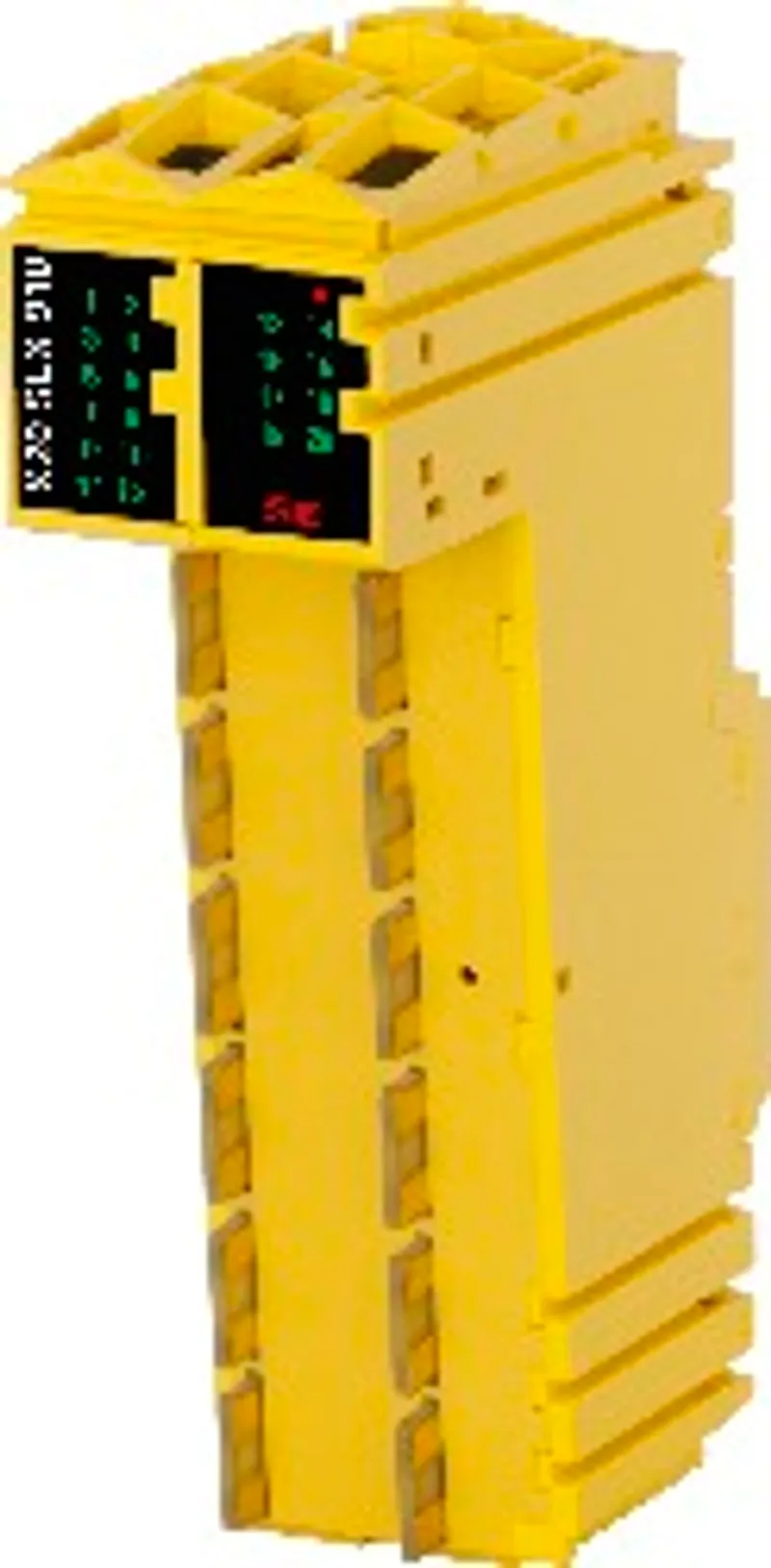

B&R X20SLX910
I/O module, 20 safe type A digital inputs, 4 pulse outputs
- MPN
- X20SLX910
- Category
- Intelligent programmable modules
€365.70excl. VAT & shipping
In stock — 2 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20SLX910?
openSAFETY manager for up to 10 SafeNODEs
Flexibly programmable using Automation Studio / SafeDESIGNER
Innovative management of safe machine options (SafeOPTION)
Parameter and configuration management
20 safe digital inputs
4 pulse outputs
Sink circuit
Software input filter configurable for each channel
The module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER. The module can be used in safety-related applications up to PL e or SIL 3.
In addition, the module coordinates the safety-related communication of all modules involved in the application. In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary. This guarantees a consistent and correct module configuration in the network from a safety standpoint in all scenarios involving module replacement and service. These services are performed in conjunction with Automation Runtime on the standard CPU.
In addition, SafeLOGIC-X products have the same I/O properties as the associated SafeIO products (X20SIx1x0).
Specifications
Short description
| I/O module | 20 safe type A digital inputs, 4 pulse outputs, 24 VDC, SafeLOGIC-X technology |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Inputs | Yes, using LED status indicator and software |
| Power consumption – Bus | 0.4 W |
| Power consumption – Internal I/O | 1.6 W |
| Electrical isolation – Channel - Bus | Yes |
| Electrical isolation – Channel - Channel | No |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – Functional safety | cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013 |
| Certifications – Functional safety | IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3 |
| Certifications – Functional safety | EN 50156-1 |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0xC5B1 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual."> | 0.6 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section) |
Safety characteristics
| Note | See section "Safety characteristics". |
Limit values for SafeDESIGNER application
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – FB instances | 256 (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Marker memory | 5120 bytes (0x1400) (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Stack memory | 2048 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for safe input data | 128 bytes, 68 bytes of which are usable for modules (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for safe output data | 64 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for standard input data | 64 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for standard output data | 64 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Marker count | 256 (note: For a parameter description, see section) |
| Additional SafeDESIGNER limit values – Max. number of function block types | 64 |
| Additional SafeDESIGNER limit values – Max. number of force variables | 8 |
| Additional SafeDESIGNER limit values – Max. number of variable with variable status | 128 |
I/O power supply
| Nominal voltage | 24 VDC |
| Voltage range | 24 VDC -15% / +20% |
| Integrated protective function | Reverse polarity protection |
Safe digital inputs
| Input filter – Hardware | ≤150 µs |
| Input filter – Software | Configurable between 0 and 500 ms |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Quantity | 20 |
| Variant | Type A |
| Nominal voltage | 24 VDC |
| Input characteristics per EN 61131-2 | Type 1 |
| Input circuit | Sink |
| Input voltage | 24 VDC -15% / +20% |
| Input current at 24 VDC | Min. 2 mA to max. 3.28 mA (note: The input current specifications refer to the switched-on state of the input.) |
| Input resistance | Min. 7.33 kΩ |
| Error detection time | 200 ms |
| Insulation voltage between channel and bus | 500 V eff |
| Line length between signal source (pulse output or external signal) and input | Max. 60 m with unshielded line; Max. 400 m with shielded line |
Pulse outputs
| Quantity | 4 |
| Variant | Push-Pull |
| Nominal output current | 50 mA |
| Output protection | Shutdown of individual channels in the event of overload or short circuit (note: The protective function is provided for max. 30 minutes for a continuous short circuit.) |
| Peak short-circuit current | 25 A for 15 µs |
| Short-circuit current | 100 mA eff |
| Leakage current when the output is switched off | 0.1 mA |
| R DS(on) | 60 Ω |
| Switching voltage | I/O power supply minus voltage drop due to R DS(on) |
| Total nominal current | 200 mA |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level | 0 to 2000 m, no limitation |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | 0 to 60°C |
| Temperature – Vertical mounting orientation | 0 to 50°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 2x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately. |
| Pitch | 25 +0.2 mm |
Accessories
Required accessories (order separately)
| X20BM36 | Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic… |
| X20BM33 | Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal… |
| X20TB52 | Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
