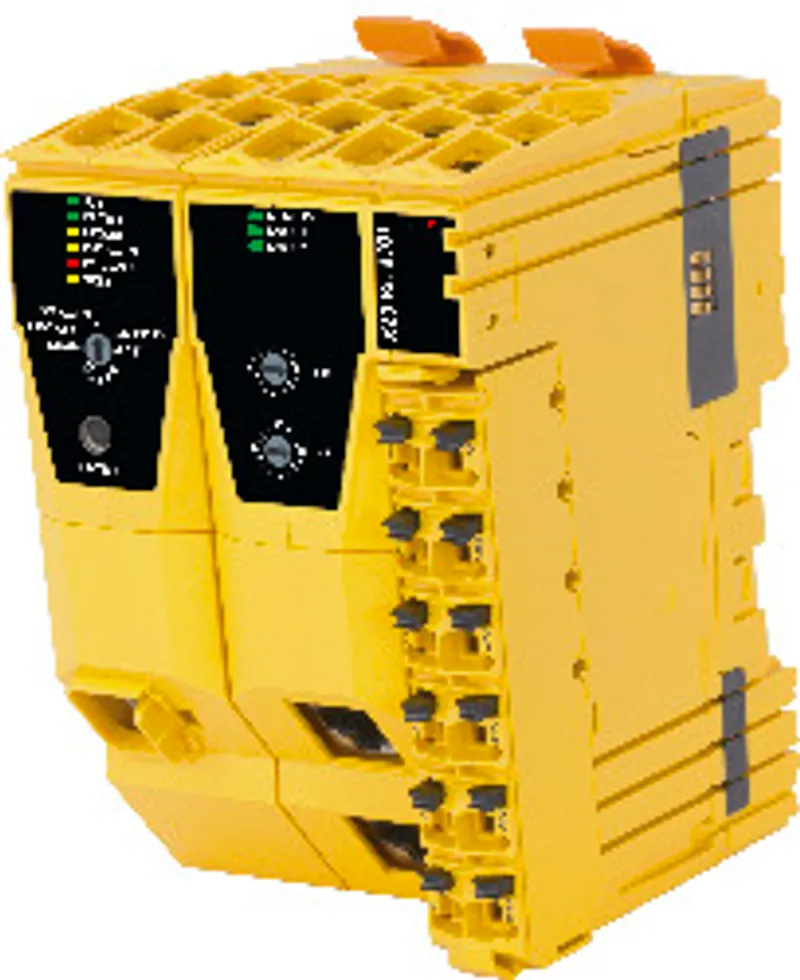

What is the B&R X20SL8101?
openSAFETY manager for up to 280 SafeNODEs
Flexibly programmable using Automation Studio / SafeDESIGNER
Innovative management of safe machine options (SafeOPTION)
Parameter and configuration management
The module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER. The module can be used in safety-related applications up to PL e or SIL 3.
In addition, the module coordinates the safety-related communication of all modules involved in the application. In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary. This guarantees a consistent and correct module configuration in the network from a safety standpoint in all scenarios involving module replacement and service. These services are performed by the SafeLOGIC controller.
Specifications
Short description
| Interfaces | POWERLINK |
| System module | CPU |
General information
| Diagnostics – CPU function | Yes, using LED status indicator |
| Diagnostics – POWERLINK | Yes, using LED status indicator |
| Diagnostics – SafeKEY | Yes, using LED status indicator |
| Support – Dynamic node allocation (DNA) | Yes |
| Blackout mode – Scope | Network segment |
| Blackout mode – Function | Programmable |
| Blackout mode – Standalone mode | Yes |
| Power consumption – Internal I/O | 0.6 WMechanical and electrical configuration" in the X20 system user's manual."> (note: The specified values are maximum values. For examples of the exact calculation, see section) |
| Electrical isolation – Fieldbus - X2X Link | Yes |
| Electrical isolation – Fieldbus - I/O | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – Functional safety | cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013 |
| Certifications – Functional safety | IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3 |
| Certifications – Functional safety | EN 50156-1 |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| B&R ID code | 0xE649 |
| Cooling | Fanless |
| Status indicators | CPU function, POWERLINK, SafeKEY |
| Power consumption | 5.3 W |
| Power consumption for X2X Link power supply | 1.42 WMechanical and electrical configuration" in the X20 system user's manual."> (note: The specified values are maximum values. For examples of the exact calculation, see section) |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Safety characteristics
| Note | See section "Safety characteristics". |
Limit values for SafeDESIGNER application
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – FB instances | 4096 (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Marker memory | 262,144 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Stack memory | 32,768 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for safe input data | 6144 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for safe output data | 2048 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for standard input data | 1024 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for standard output data | 1024 bytes (note: For a parameter description, see section) |
| Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Marker count | 16,382 (note: For a parameter description, see section) |
| Additional SafeDESIGNER limit values – Max. number of function block types | 512 |
| Additional SafeDESIGNER limit values – Max. number of force variables | 64 |
| Additional SafeDESIGNER limit values – Max. number of variable with variable status | 1023 |
Input SL / BC / X2X Link power supply
| Input voltage | 24 VDC -15% / +20% |
| Input current | Max. 0.9 A |
| Fuse | Integrated, cannot be replaced |
| Reverse polarity protection | Yes |
Output SL / BC / X2X Link power supply
| Nominal output power | 7 W |
| Parallel connection | Yes (note: In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to make sure that all power supply units operated in parallel are switched on and off at the same time.) |
| Redundant operation | Yes |
| Overload characteristics | Short-circuit proof, temporary overload |
Input I/O power supply
| Input voltage | 24 VDC -15% / +20% |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
| Reverse polarity protection | No |
Output I/O power supply
| Nominal output voltage | 24 VDC |
| Behavior on short circuit | Required line fuse |
| Permissible contact load | 10 A |
Interfaces
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Min. cycle time – Fieldbus | 200 µs (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.) |
| Min. cycle time – X2X Link | 200 µs (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.) |
| Fieldbus | POWERLINK controlled node |
| Variant | 2x shielded RJ45 port (hub) |
| Line length | Max. 100 m between 2 nodes (segment length) |
| Transfer rate | 100 Mbit/s |
| Synchronization between bus systems possible | Yes |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level | 0 to 2000 m, no limitation |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | 0 to 60°C |
| Temperature – Vertical mounting orientation | 0 to 45°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 62.5 +0.2 mm |
| Dimensions – Height | 99 mm |
| Dimensions – Depth | 75 mm |
| Note | Order SafeKEY and SafeLOGIC range of functions using the X20MK configurator.; X20 end cover plate (right) included in delivery; 12-pin X20 terminal block, safety-keyed, included in delivery; SafeKEY cover included in delivery |
| Weight | 190 g |
Accessories
Required accessories (order separately)
| X20MK0223 | Accessories — X20 SafeKEY, 8 MB, for the X20SL81xx series, exclusively for mapp Safety, range of license functions determined via a package-based licensi… |
