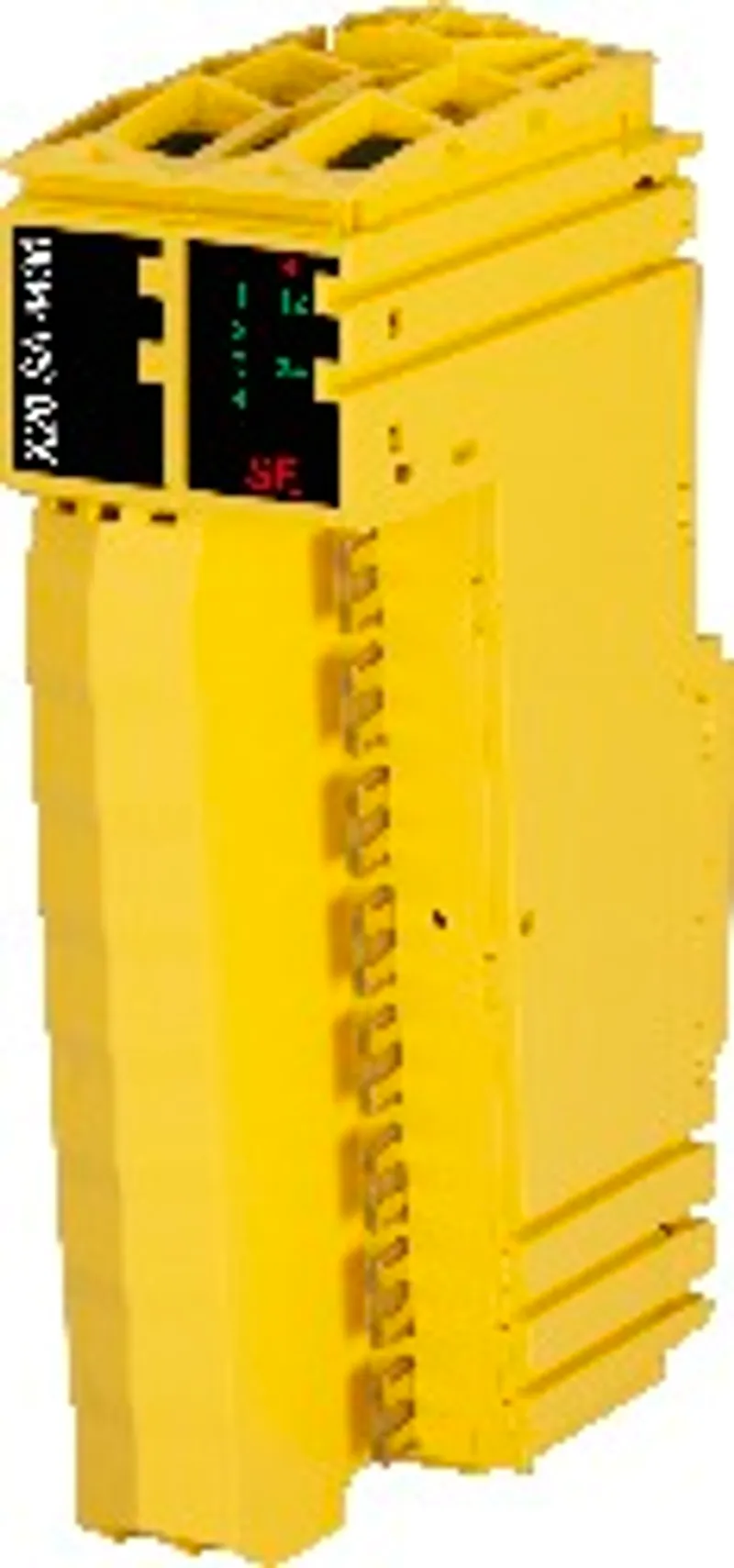

B&R X20SA4430

I/O module, 2x 2 safe type A analog inputs, 0.5 to 25 mA

MPN: X20SA4430
Category: Analog input modules

€952.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20SA4430?

2 safe analog input pairs for current measurement 0.5 to 25 mA

24-bit digital converter resolution

Channels individually galvanically isolated

Sensor power supplies galvanically isolated

Input filter configurable

The module is equipped with 2 safe analog input pairs for current measurement. Each input pair has its own sensor power supply. The channels with their respective sensor supplies are electrically isolated from each other. It can be used to capture current signals in the range from 0.5 to 25 mA.

The safe analog input module is suitable for safely acquiring current signals for safety-related applications up to PL e or SIL 3.

This module is designed for X20 16-pin terminal blocks.

Specifications

Short description

I/O module

2x 2 safe type A analog inputs, 0.5 to 25 mA, channels individually galvanically isolated

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.25 W
Power consumption – Internal I/O	1.7 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	Yes
Electrical isolation – Channel pair - Channel pair	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xB8B5
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual.">	0.36 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%

Safe analog inputs

Permissible input signal – Voltage	Max. 30.5 V
Max. error at 25°C – 0.5 to <4 mA	<0.3% (note: Based on the current measured value)
Max. error at 25°C – 4 to 25 mA	<0.08% (note: Based on the current measured value)
Max. error at 25°C – 0.5 to <4 mA	<2 µA
Max. error at 25°C – 4 to 25 mA	<6.3 µA
Max. gain drift – 0.5 to <4 mA	<1.225 µA/°C
Max. gain drift – 4 to 25 mA	<1.225 µA/°C
Max. offset drift – 0.5 to <4 mA	<0.735 µA/°C
Max. offset drift – 4 to 25 mA	<0.735 µA/°C
Common-mode rejection – DC	>70 dB
Common-mode rejection – 50 Hz	>70 dB
Input filter – Hardware	First-order low-pass filter / cutoff frequency 500 Hz
Input filter – Software	Sinc 3 filter
Test voltage – Channel - Bus	500 VDC
Test voltage – Channel pair - Channel pair	500 VDC
Test voltage – Channel - Ground	500 VDC
Safety-related accuracy per channel – Cat. 3	0.184 mA
Safety-related accuracy per channel – Cat. 4	0.49 mA
Quantity	2 safe input channel pairs
Variant	Type A
Input type	Differential input
Digital converter resolution	24-bit
Conversion time	See chapter "I/O update time".
Output format	SAFEINT
Load	Up to hardware revision D3: 230 to 420 Ω, hardware revision E0 or later: 185 to 245 Ω
Input protection	Protection against external supply voltages and overcurrent
Open-circuit detection	Yes, using software
Conversion procedure	Sigma-delta
Common-mode range	Between the inputs ±50 V
Nonlinearity	<0.003%
Measurement range	0.5 to 25 mA
Resolution	1 µA/LSB
Overload detection	Yes, using software
Filter time	Configurable between 1 and 66.7 ms

Sensor power supply

Electrical isolation – Sensor power supply - Channel	No
Electrical isolation – Sensor power supply - Sensor power supply	Yes
Nominal voltage	29 VDC ±5% (note: When operating at ambient temperatures up to 40°C, a maximum I/O supply voltage ≤ 30 V is maintained.)
Nominal output current	Max. 60 mA
Short-circuit proof	Yes, continuous
R DS(on)	50 Ω
Behavior on short circuit	Voltage cutoff

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 40°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM36	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic…
X20BM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB5F	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a screwdriver; Labeling option for each terminal connection; Plain tex…
