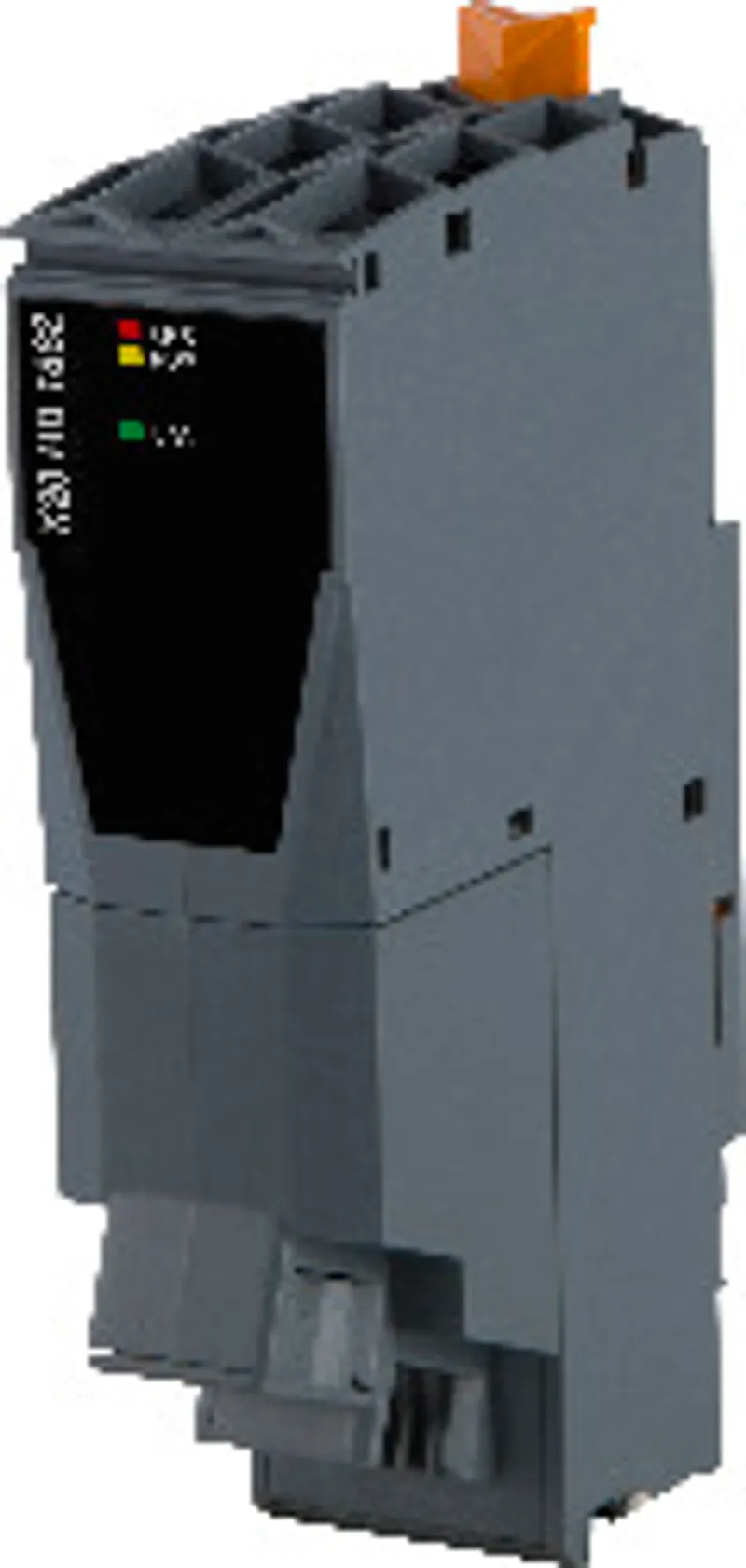

B&R X20HB1882

Hub, 1 Fast Ethernet interface for single-mode fiber optic…

MPN: X20HB1882
Category: System modules for the X20 hub system

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R X20HB1882?

Hub expansion module

1-port hub, 100BASE-FX

Single-mode glass fiber cables

Range up to 50 km

Hot-swappable

The POWERLINK bus controllers X20BC8083, X20BC8084 (starting with revision D0 ) and the standalone hub X20HB8880 are equipped with a modular hub extension. 1 or 2 additional slots are available depending on the bus base. The X20HB1882 hub expansion module can be operated in these slots. Please note that the hardware revision of the X20BC8083 and X20HB8880 must be ≥F0 .

The hub expansion module is designed as a 1-port hub. The Ethernet connection is made using 9/125 µm single-mode glass fiber cables with a duplex LC connector. The module state and network status are indicated using LEDs.

Specifications

Short description

Hub	1 Fast Ethernet interface for single-mode fiber optic cables for hub expansion

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Bus function	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Status indicators	Module status, bus function
Power consumption	1.65 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	100BASE-FX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	No
Transfer – Auto-MDI/MDIX	No
Line length – Half-duplex	Max. 175 m between 2 stations (segment length)
Line length – POWERLINK	Max. 50 km between 2 stations (segment length)
Type	Hub expansion module
Variant	1x female duplex LC
Transfer rate	100 Mbit/s
Hub propagation delay	0.96 to 1 µs
Wave length	Typ. 1300 nm Rx range: 1270 to 1380 nm Tx range: 1270 to 1380 nm
Cable fiber type	Single-mode fiber with 9/125 µm core diameter ; On both sides: Male duplex LC connector
Optical power budget	30 dB

Electrical properties

Electrical isolation

Power supply isolated from Ethernet

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 55°C
Temperature – Vertical mounting orientation	-25 to 45°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Slot	Hub expansion for X20BC8083, X20BC8084 and X20HB8880 (note: The hardware revision of X20BC8083 and X20HB8880 must be F0 or later, and the hardware revision of X20BC8084 must be D0 or later.)
