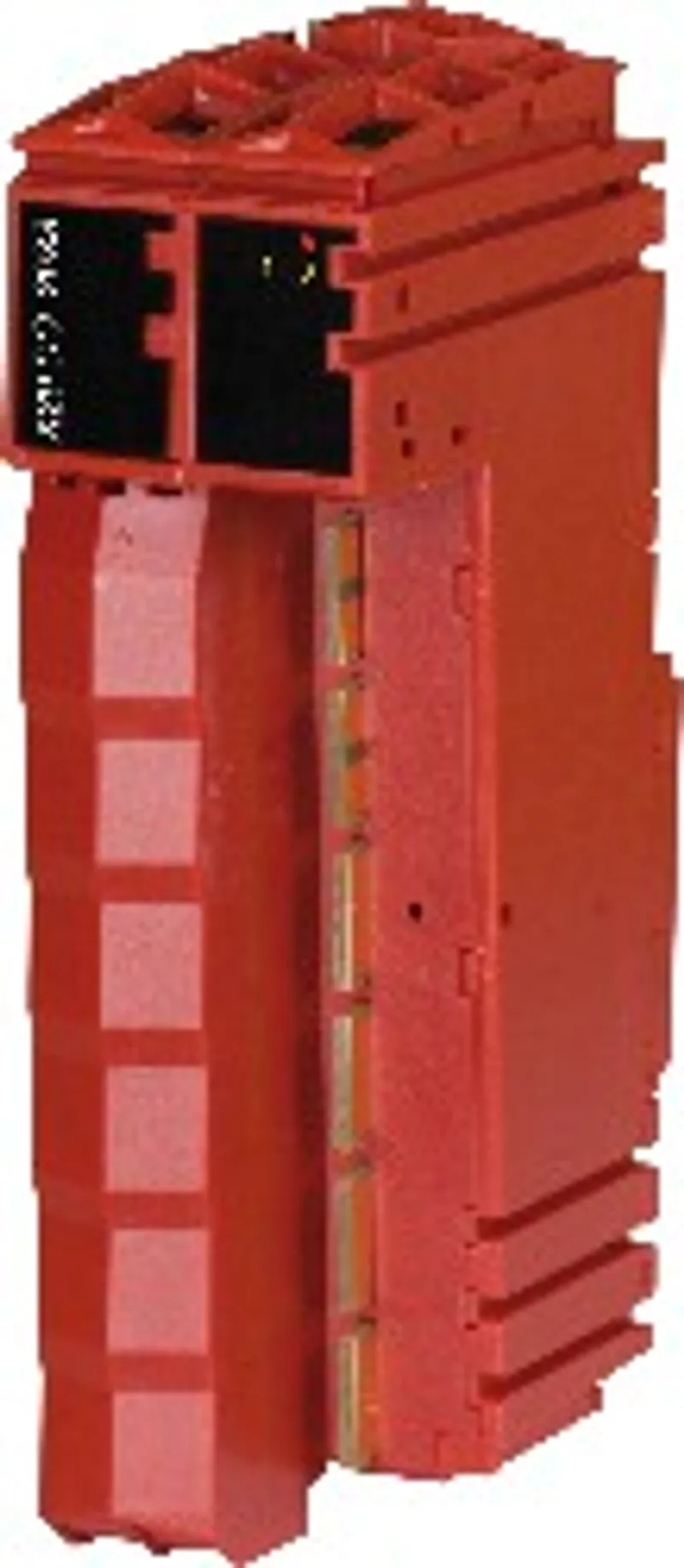

B&R X20DO2633
I/O module, 2 digital outputs 48 to 240 VAC for 3-wire…
- MPN
- X20DO2633
- Category
- Digital outputs
€369.94excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20DO2633?
2 digital outputs
Outputs with integrated snubber circuit
Outputs with 48 to 240 VAC
L switching
Zero-crossing detection
Phase-angle control
Open-circuit detection for each channel
Negative half-waves can be switched off
50 Hz or 60 Hz
3-wire connections
240 V coding
OSP mode
Frequency mode
The module is a digital output module with phase-angle control that is equipped with 2 Triac outputs using 3-line connections. The supply (L and N) is fed directly to the module.
Specifications
Short description
| I/O module | 2 digital outputs 48 to 240 VAC for 3-wire connections |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Outputs | Yes, using LED status indicator and software |
| Power consumption – Bus | 0.6 W |
| Power consumption – Internal I/O | - |
| Power consumption – External I/O | - |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| B&R ID code | 0xAC39 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual."> | +6 (note: Number of outputs x Residual voltage (on-state voltage) x Nominal output current. For a calculation example, see section) |
Digital outputs
| Maximum current – Output current | 2.5 A |
| Maximum current – Summation current | 5 A |
| Phase-angle control – Area | 5 to 95% |
| Phase-angle control – Resolution | 1% |
| Phase-angle control – Accuracy (60 to 240 VAC) | <100 μs |
| Insulation voltages – Channel - Bus | Tested with 2300 VAC (Rev. <E0 1500 VAC) |
| Insulation voltages – Channel - Internal I/O | Tested with 2300 VAC (Rev. <E0 2000 VAC) |
| Insulation voltages – Channel - Ground | Tested with 2300 VAC (Rev. <E0 1500 VAC) |
| Protective circuit – External | See section "External fuses". |
| Protective circuit – Internal | Snubber circuit (RC element) and varistor |
| Execution | Triac |
| Circuit | L-switching |
| Nominal voltage | 48 to 240 VAC |
| Max. voltage | 264 VAC |
| Rated frequency | 47 to 63 Hz |
| Nominal output current | 2 A |
| Total nominal current | 4 A |
| Connection type | 3-wire connections |
| Zero-crossing detection | Yes |
| Minimum holding current I H | 15 mA |
| Leakage current | Max. 2 mA at 240 V at 50 Hz ; Max. 2.4 mA at 240 V at 60 Hz |
| Residual voltage (on-state voltage) | 1.5 V |
| Voltage monitoring L - N | Yes |
| Additional functions | Open-circuit detection |
| Overvoltage protection between L and N | Yes, varistor |
Electrical properties
| Electrical isolation | Channel isolated from bus and I/O power supply |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Not permitted |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB32 separately.; Order 1x bus module X20BM32 separately. |
| Pitch | 25 +0.2 mm |
Accessories
Required accessories (order separately)
| X20BM32 | Bus modules — Bus module for double-width 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module… |
| X20TB32 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
