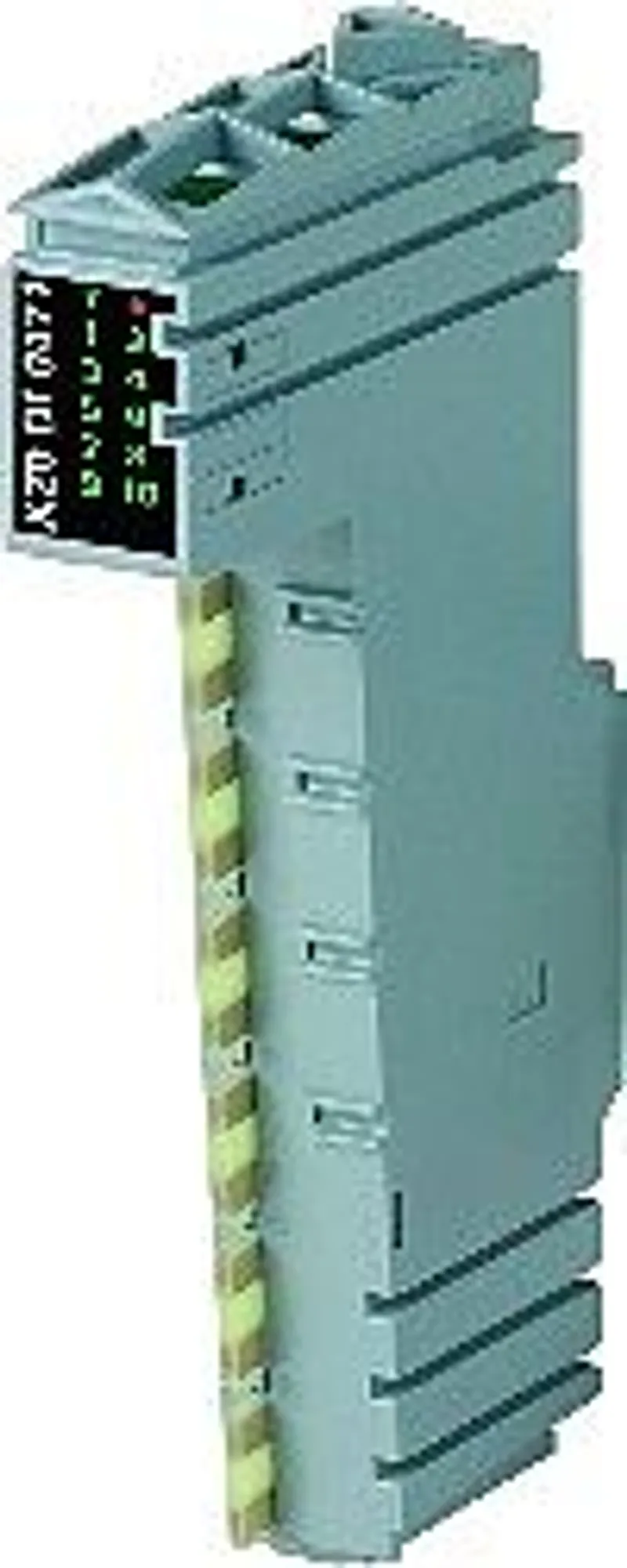

B&R X20DI0471

I/O module, 10 digital inputs 5 to 48 VDC for 1-wire…

MPN: X20DI0471
Category: Digital inputs

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R X20DI0471?

10 digital inputs

Sink circuit

1-wire connections

Configurable software input filter for entire module

The module is equipped with 10 inputs for 1-wire connections. It is designed for a nominal voltage of 5 to 48 VDC .

Specifications

Short description

I/O module

10 digital inputs 5 to 48 VDC for 1-wire connections

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Power consumption – Bus	0.3 W
Power consumption – Internal I/O	0.6 W
Power consumption – External I/O	0.94 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xE7CE
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Digital inputs

Input filter – Hardware	≤100 μs
Input filter – Software	Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments
Switching threshold – Low	≤ 0.2 x U ref
Switching threshold – High	≥ 0.6 x U ref
Nominal voltage	5 to 48 VDC
Input voltage	4.75 to 60 VDC
Input current at 48 VDC	Typ. 0.96 mA
Reference voltage	4.75 to 60 VDC
Input circuit	Sink
Connection type	1-wire connections
Reference voltage input resistance	20 kΩ
Reference voltage monitoring	Yes
Insulation voltage between channel and bus	500 V eff

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. ; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (5)

X20DI0471: frequently asked questions

When can X20DI0471 be shipped?

X20DI0471 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20DI0471 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20DI0471 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20DI0471, subject to availability and destination.
