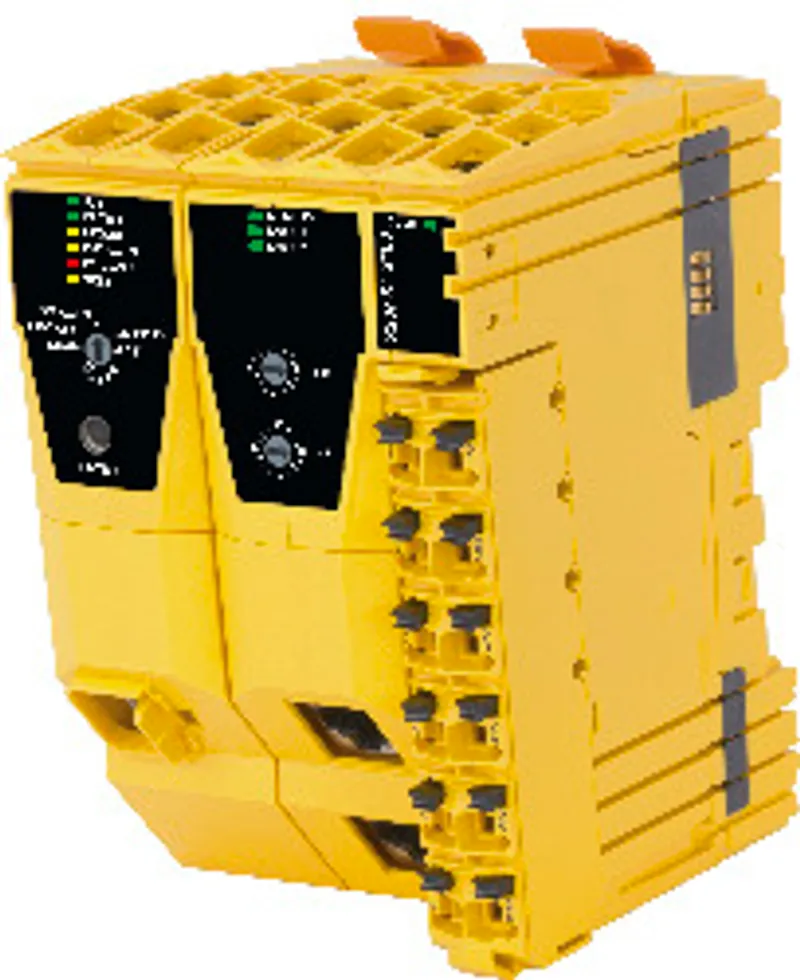

B&R X20cSL8100

Interfaces, POWERLINK

MPN: X20cSL8100
Category: CPUs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20cSL8100?

openSAFETY manager for up to 100 SafeNODEs

Flexibly programmable using Automation Studio / SafeDESIGNER

Innovative management of safe machine options (SafeOPTION)

Parameter and configuration management

The module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER. The module can be used in safety-related applications up to PL e or SIL 3.

In addition, the module coordinates the safety-related communication of all modules involved in the application. In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary. This guarantees a consistent and correct module configuration in the network from a safety standpoint in all scenarios involving module replacement and service. These services are performed by the SafeLOGIC controller.

Specifications

Short description

Interfaces	POWERLINK
System module	CPU

General information

Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – POWERLINK	Yes, using LED status indicator
Diagnostics – SafeKEY	Yes, using LED status indicator
Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xE287
Cooling	Fanless
Status indicators	CPU function, POWERLINK, SafeKEY
Power consumption	4.3 W
Additional power dissipation caused by actuators (resistive) [W]	-

Safety characteristics

Note	See section "Safety characteristics".

Limit values for SafeDESIGNER application

Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – FB instances	4096 (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Marker memory	262,144 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Stack memory	32,768 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for safe input data	6144 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for safe output data	2048 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for standard input data	1024 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Memory for standard output data	1024 bytes (note: For a parameter description, see section)
Max. resources available for SafeDESIGNER info window entriesMessage window" in the SafeDESIGNER documentation."> – Marker count	16,382 (note: For a parameter description, see section)
Additional SafeDESIGNER limit values – Max. number of function block types	512
Additional SafeDESIGNER limit values – Max. number of force variables	64
Additional SafeDESIGNER limit values – Max. number of variable with variable status	1023

Input SL / BC / X2X Link power supply

Input voltage	24 VDC -15% / +20%
Input current	Max. 0.25 A
Fuse	-
Reverse polarity protection	Yes

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Min. cycle time – Fieldbus	200 µs (note: The minimum cycle time specifies the time up to which the bus cycle can be reduced without communication errors occurring.)
Fieldbus	POWERLINK controlled node
Variant	2x shielded RJ45 port (hub)
Line length	Max. 100 m between 2 nodes (segment length)
Transfer rate	100 Mbit/s

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 45°C
Temperature – Derating	-
Temperature – Starting temperature	Yes, -40°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Dimensions – Width	62.5 +0.2 mm
Dimensions – Height	99 mm
Dimensions – Depth	75 mm
Note	Order SafeKEY and SafeLOGIC range of functions using the X20MK configurator.; X20 end cover plate (right) included in delivery; 12-pin X20 terminal block, safety-keyed, included in delivery; SafeKEY cover included in delivery
Weight	190 g
