B&R X20CP1484
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | X20 PLC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20CP1484 be shipped?
X20CP1484 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20CP1484 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20CP1484 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP1484, subject to availability and destination.

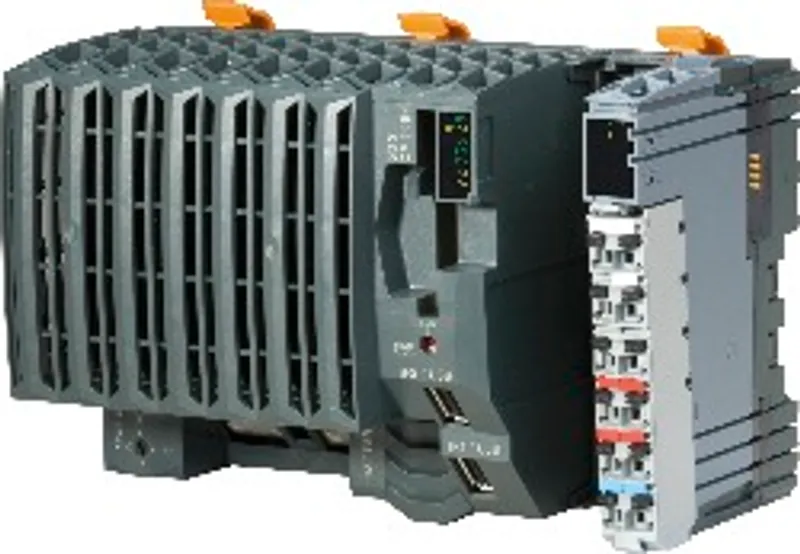

Intel Celeron 266 Performance with additional I/O processorEthernet, POWERLINK and USB onboard1 slot for modular interface expansionCompactFlash as removable application memoryFan-freeExtremely compact The X20CP1484 is the smallest Celeron based CPU for the X20 System. However, its shortest cycle time of 800 µs still shows its power. The basic features are the same as those of the larger types. Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3484 are that the X20CP1484 only has one slot for interface modules and a smaller width.The CPU models X20CP1484 and X20CP1484-1 differ only by SDRAM size.
Specifications
Specifications
| Interfaces | 1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link |
| System module | CPU |
| B&R ID code | 0x23A5 |
| Cooling | Fanless |
| Status indicators | Overload, operating status, module status, RS232 data transfer |
| Battery | Yes, using LED status indicator and software |
| CPU function | Yes, using LED status indicator |
| CompactFlash | Yes, using LED status indicator |
| Ethernet | Yes, using LED status indicator |
| POWERLINK | Yes, using LED status indicator |
| Overtemperature | Yes, using LED status indicator |
| Diagnostics - Fan | - |
| ACOPOS support | Yes |
| Visual Components support | Yes |
| Power consumption without memory card, interface module and USB | 10.5 W |
| Bus | 1.42 W |
| Internal I/O | 0.6 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| IF1 - IF2 | Yes |
| IF1 - IF3 | Yes |
| IF1 - IF4 | No |
| IF1 - IF5 | No |
| IF1 - IF6 | Yes |
| IF2 - IF4 | Yes |
| IF2 - IF5 | Yes |
| IF3 - IF4 | Yes |
| IF3 - IF5 | Yes |
| IF4 - IF5 | No |
| IF4 - IF6 | Yes |
| IF5 - IF6 | Yes |
| PLC - IF1 | No |
| PLC - IF2 | Yes |
| PLC - IF3 | Yes |
| PLC - IF4 | No |
| PLC - IF5 | No |
| PLC - IF6 | Yes |
| CE | Yes |
| UKCA | Yes |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| KC | Yes |
| Input voltage | 24 VDC -15% / +20% |
| Input current | Max. 2.2 A |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
| Reverse polarity protection | Yes |
| Nominal output power | 7 W |
| Parallel connection | Yes |
| Redundant operation | Yes |
| Nominal output voltage | 24 VDC |
| Permissible contact load | 10 A |
| RS232 data transfer | Yes, using LED status indicator |
| Module run/error | Yes, using LED status indicator and software |
| Overload | Yes, using LED status indicator and software |
| I/O supply - I/O power supply | No |
| CPU/X2X Link supply - CPU/X2X Link power supply | Yes |
| CompactFlash slot | 1 |
| Real-time clock | Nonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C |
| FPU | Yes |
| Type | X2X Link master |
| L2 cache | - |
| L1 cache for data and program code | 2x 16 kB |
| Integrated I/O processor | Processes I/O data points in the background |
| Modular interface slots | 1 |
| Remanent variables | Max. 64 kB |
| Shortest task class cycle time | 800 µs |
| Typical instruction cycle time | 0.007 µs |
| Battery monitoring | Yes |
| Lithium battery | At least 3 years |
| RAM | 32 MB SDRAM |
| User RAM | 1 MB SRAM |
| Variant | Type A |
| Transfer rate | 100 Mbit/s |
| Line length | Max. 100 m between 2 stations (segment length) |
| Fieldbus | POWERLINK V1/V2 |
| Max. output current | 0.5 A |
| Quantity | 1 |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | 0 to 55°C |
| Vertical mounting orientation | 0 to 50°C |
| Derating | - |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Note | Order application memory (CompactFlash) separately Backup battery included in delivery X20 end cover plate (right) included in delivery 12-pin X20 terminal block included in delivery Interface module slot covers included in delivery |
| Width | 150 mm |
| Height | 99 mm |
| Depth | 85 mm |
