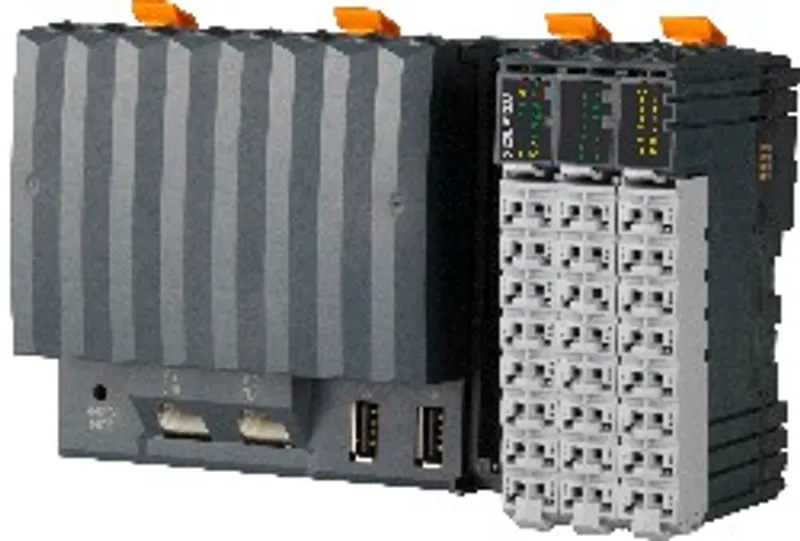

What is the B&R X20CP1382?

Intel x86 400 MHz compatible with integrated I/O processor

Ethernet, POWERLINK with poll-response chaining and onboard USB

1 slot for modular interface expansion

30 digital inputs/outputs and 2 analog inputs integrated in the device

2 GB onboard flash drive

256 MB DDR3 SDRAM

Fanless

No battery

Backed-up real-time clock

The X20 Compact controller series is characterized by 3 integrated I/O modules. The device is equipped with 30 different digital inputs/outputs and 2 analog inputs . 1 analog input can be used for Pt1000 resistance temperature measurement.

The X20CP1382 is equipped with an Intel x86 400 MHz compatible processor, 256 MB RAM and 2 GB built-in flash drive. The FRAM for storing remanent variables has 32 kB available. A fanless and battery-free design ensures maintenance-free operation.

The controller is equipped with Ethernet, 2x USB and an RS232 interface. In addition, POWERLINK and CAN bus are available as integrated interfaces. For additional fieldbus connections, each controller can be expanded with an interface module from the X20 standard portfolio.

Specifications

Short description

Interfaces	1x RS232, 1x Ethernet, 1x POWERLINK, 2x USB, 1x X2X Link, 1x CAN bus
System module	Controller

General information

Diagnostics – Outputs	Digital outputs: Yes, using LED status indicator and software (output error status)
Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – CAN bus data transfer	Yes, using LED status indicator
Diagnostics – RS232 data transfer	Yes, using LED status indicator
Diagnostics – Inputs	Analog inputs: Yes, using LED status indicator and software
Diagnostics – Ethernet	Yes, using LED status indicator
Diagnostics – I/O power supply	Yes, using LED status indicator
Diagnostics – POWERLINK	Yes, using LED status indicator
Diagnostics – Supply voltage monitoring	Yes, using LED status indicator
Diagnostics – Temperature	Yes, using software register
Diagnostics – Terminating resistor	Yes, using LED status indicator
Support – Controller redundancy	No
Support – ACOPOS support	Yes
Support – reACTION-capable I/O channels	No
Support – Visual Components support	Yes
Power consumptionMechanical and electrical configuration" in the X20 system user's manual."> – Internal I/O	2.3 W (note: The specified values are maximum values. For examples of the exact calculation, see section)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
B&R ID code	0xDABB
Cooling	Fanless
Status indicators	CPU function, Ethernet, POWERLINK, RS232, CAN bus, CAN bus terminating resistor, PLC power supply, I/O power supply, I/O function per channel
Power consumption without interface module and USB	5.5 W
Power consumption for X2X Link power supplyMechanical and electrical configuration" in the X20 system user's manual.">	0.8 W (note: The specified values are maximum values. For examples of the exact calculation, see section)
Additional power dissipation caused by actuators (resistive) [W]	-
Type of signal lines	Shielded lines must be used for all high-speed digital inputs/outputs, line length: Max. 20 m

CPU and X2X Link power supply

Input voltage	24 VDC -15% / +20%
Input current	Max. 1 A
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

X2X Link power supply output

Nominal output power	2 W
Parallel connection	Yes (note: When operated in parallel, the nominal power of 2 W is not permitted to be added to the total power.)
Redundant operation	Yes (note: Up to 2 W bus load.)

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A, slow-blow

Output I/O power supply

Nominal output voltage	24 VDC
Permissible contact load	10 A

Controller

Processor – Data code	16 kB
Processor – Program code	16 kB
Processor – Type	Vx86EX
Processor – Clock frequency	400 MHz
Processor – L2 cache	128 kB
Standard memory – RAM	256 MB DDR3 SDRAM
Application memory – Guaranteed	40 TB
Application memory – Results for 5 years	21.9 GB/day
Application memory – Type	2 GB eMMC flash memory
Application memory – Data retention	10 years
Application memory – Guaranteed erase/write cycles	20,000
Application memory – Error-correcting code (ECC)	Yes
Real-time clock	Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C
Floating point unit (FPU)	Yes
Integrated I/O processor	Processes I/O data points in the background
Modular interface slots	1
Remanent variables	32 kB FRAM, retention >10 years (note: The memory size for remanent variables is configurable in Automation Studio.)
Shortest task class cycle time	1 ms
Typical instruction cycle time	0.0199 µs

Interfaces

Interface IF1 – Signal	RS232
Interface IF1 – Variant	Connection via 16-pin terminal block X20TB1F
Interface IF1 – Max. distance	900 m
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF2 – Physical layer	10BASE-T/100BASE-TX
Interface IF2 – Half-duplex	Yes
Interface IF2 – Full-duplex	Yes
Interface IF2 – Autonegotiation	Yes
Interface IF2 – Auto-MDI/MDIX	Yes
Interface IF2 – Signal	Ethernet
Interface IF2 – Variant	1x RJ45 shielded
Interface IF2 – Line length	Max. 100 m between 2 stations (segment length)
Interface IF2 – Transfer rate	10/100 Mbit/s
Interface IF3 – Physical layer	100BASE-TX
Interface IF3 – Half-duplex	Yes
Interface IF3 – Full-duplex	POWERLINK mode: No / Ethernet mode: Yes
Interface IF3 – Autonegotiation	Yes
Interface IF3 – Auto-MDI/MDIX	Yes
Interface IF3 – Fieldbus	POWERLINK managing or controlled node
Interface IF3 – Type	Type 4Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help."> (note: For additional information, see section)
Interface IF3 – Variant	1x RJ45 shielded
Interface IF3 – Line length	Max. 100 m between 2 stations (segment length)
Interface IF3 – Transfer rate	100 Mbit/s
Interface IF4 – Type	USB 1.1/2.0
Interface IF4 – Variant	Type A
Interface IF4 – Max. output current	0.5 A
Interface IF5 – Type	USB 1.1/2.0
Interface IF5 – Variant	Type A
Interface IF5 – Max. output current	0.1 A
Interface IF6 – Fieldbus	X2X Link master
Interface IF7 – Signal	CAN bus
Interface IF7 – Variant	Connection via 16-pin terminal block X20TB1F
Interface IF7 – Max. distance	1000 m
Interface IF7 – Transfer rate	Max. 1 Mbit/s
Interface IF7 – Terminating resistor	Integrated in module
Interface IF7 – Controller	SJA 1000

Digital inputs

Input filter – Hardware	Standard inputs and mixed channels: ≤200 μs; High-speed inputs: ≤2 μs, when used as standard inputs: ≤200 μs
Input filter – Software	Default 1 ms, configurable between 0 and 25 ms in 0.1 ms increments
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	14 standard inputs, 4 high-speed inputs and 4 mixed channels, configuration as input or output using software
Nominal voltage	24 VDC
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	X1 - Standard inputs: Typ. 3.5 mA; X2 - Standard inputs: Typ. 2.68 mA; X2 - High-speed inputs: Typ. 3.5 mA; X3 - Mixed channels: Typ. 2.68 mA
Input circuit	Sink
Connection type	1-wire connections
Input resistance	X1 - Standard inputs: 6.8 kΩ; X2 - Standard inputs: 8.9 kΩ; X2 - High-speed inputs: 6.8 kΩ; X3 - Mixed channels: 8.9 kΩ
Additional functions	X2 - High-speed digital inputs:; 2x 250 kHz event counting, 2x AB counter, ABR incremental encoder, direction/frequency, period measurement, gate measurement, differential time measurement, edge counters, edge times

AB incremental encoder

Quantity	2
Encoder inputs	24 V, asymmetrical
Counter size	32-bit
Input frequency	Max. 100 kHz
Evaluation	4x
Encoder power supply	Module-internal, max. 300 mA
Overload characteristics of encoder power supply	Short-circuit proof, overload-proof

ABR incremental encoder

Quantity	1
Encoder inputs	24 V, asymmetrical
Counter size	32-bit
Input frequency	Max. 100 kHz
Evaluation	4x
Encoder power supply	Module-internal, max. 300 mA
Overload characteristics of encoder power supply	Short-circuit proof, overload-proof

Event counters

Quantity	2
Signal form	Square wave pulse
Evaluation	1x
Input frequency	Max. 250 kHz
Counter frequency	250 kHz
Counter size	32-bit

Edge detection / Time measurement

Possible measurements	Period measurement, gate measurement, differential time measurement, edge counter, edge times
Measurements per module	Each function up to 2x
Signal form	Square wave pulse
Counter size	32-bit
Input frequency	Max. 10 kHz
Timestamp	1 µs resolution

Analog inputs

Digital converter resolution – Voltage	±12-bit
Digital converter resolution – Current	12-bit
Output format – Data type	INT
Output format – Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
Output format – Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 μA
Input impedance in signal range – Voltage	20 MΩ
Input impedance in signal range – Current	-
Load – Voltage	-
Load – Current	<300 Ω
Permissible input signal – Voltage	Max. ±30 V
Permissible input signal – Current	Max. ±50 mA
Max. error – Gain	0.18% (Rev. <C0: 0.37%) (note: Based on the current measured value.)
Max. error – Offset	0.04% (Rev. <C0: 0.25%) (note: Based on the 20 V measurement range.)
Max. error – Gain	0 to 20 mA = 0.15% (Rev. <C0: 0.52%) / 4 to 20 mA = 0.25% (note: Based on the current measured value.)
Max. error – Offset	0 to 20 mA = 0.1% (Rev. <C0: 0.4%) / 4 to 20 mA = 0.15% (note: Based on the 20 mA measurement range.)
Max. gain drift – Voltage	0.017 %/°C (note: Based on the current measured value.)
Max. gain drift – Current	0 to 20 mA = 0.015 %/°C / 4 to 20 mA = 0.023 %/°C (note: Based on the current measured value.)
Max. offset drift – Voltage	0.008 %/°C (note: Based on the 20 V measurement range.)
Max. offset drift – Current	0 to 20 mA = 0.008 %/°C / 4 to 20 mA = 0.012 %/°C (note: Based on the 20 mA measurement range.)
Common-mode rejection – DC	70 dB
Common-mode rejection – 50 Hz	70 dB
Nonlinearity – Voltage	<0.025% (note: Based on the 20 V measurement range.)
Nonlinearity – Current	<0.05% (note: Based on the 20 mA measurement range.)
Input	±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections
Input type	Differential input
Conversion time	1 channel enabled: 100 µs; 2 channels enabled: 200 µs
Input protection	Protection against wiring with supply voltage
Output of digital value during overload	Configurable
Conversion procedure	SAR
Input filter	Third-order low-pass filter / Cutoff frequency 1 kHz
Common-mode range	±12 V
Crosstalk between channels	<-70 dB

Resistance measurement temperature inputs

Sensor – Pt1000	-200 to 850°C
Max. error at 25°C – Gain	0.3% (Rev. <C0: 1.93%) (note: Based on the current measured resistance value.)
Max. error at 25°C – Offset	0.15% (Rev. <C0: 0.32%) (note: Based on the entire resistance measurement range.)
Common-mode rejection – 50 Hz	>60 dB
Temperature sensor normalization – Pt1000	-200 to 850°C
Quantity	1
Input	Resistance measurement with constant current supply for 2-wire connections
Digital converter resolution	13-bit
Conversion time	Only temperature input enabled: 200 µs; Temperature and analog input enabled: 400 µs
Conversion procedure	SAR
Output format	INT or UINT for resistance measurement
Resistance measurement range	0.1 to 4000 Ω
Temperature sensor resolution	1 LSB = 0x0005 = 0.16°C
Resistance measurement resolution	1 LSB = 0x0005 = 0.49 Ω
Input filter	First-order low-pass filter / cutoff frequency 7 Hz
Sensor standard	EN 60751
Common-mode range	1 V
Linearization method	Internal
Measuring current	1 mA
Permissible input signal	Short-term max. ±30 V
Max. gain drift	0.023 %/°C (note: Based on the current measured resistance value.)
Max. offset drift	0.012%/°C (note: Based on the entire resistance measurement range.)
Nonlinearity	<0.05% (note: Based on the entire resistance measurement range.)
Standardized range of values for resistance measurement	0.1 to 4000.0 Ω
Crosstalk between channels	<-70 dB

Digital outputs

Pulse width modulation – Period duration	5 to 65535 µs corresponds to 200 kHz to 15 Hz (note: The high-speed digital outputs can be used for pulse width modulation.)
Pulse width modulation – Pulse duration	0 to 100%, minimum 2.5 µs (note: The high-speed digital outputs can be used for pulse width modulation.)
Pulse width modulation – Resolution for pulse duration	0.1% of the configured frequency (note: The high-speed digital outputs can be used for pulse width modulation.)
Switching delay – 0 → 1	Standard outputs and mixed channels: <300 µs; High-speed outputs: <3 µs
Switching delay – 1 → 0	Standard outputs and mixed channels: <300 µs; High-speed outputs: <3 µs
Switching frequency – Resistive load	Standard outputs and mixed channels: Max. 500 Hz; High-speed outputs: 50 kHz, max. 200 kHz (see section "Switching frequency derating for high-speed digital outputs") (note: Standard outputs and mixed channels: At loads ≤1 kΩ)
Switching frequency – Inductive load	See section "Switching inductive loads".
Quantity	4 standard outputs, 4 high-speed outputs and 4 mixed channels, configuration as input or output using software
Variant	Standard outputs and mixed channels: Current-sourcing FET; High-speed outputs: Push-Pull
Nominal voltage	24 VDC
Switching voltage	24 VDC -15% / +20%
Nominal output current	Standard outputs and mixed channels: 0.5 A; High-speed outputs: 0.2 A
Total nominal current	Standard outputs and mixed channels: 4 A; High-speed outputs: 0.8 A
Connection type	1-wire connections
Output circuit	Standard outputs and mixed channels: Source; High-speed outputs: Sink or source
Output protectionDerating for switching frequency of high-speed digital outputs"). Overtemperature protection is not provided.">	Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current"); Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads") (note: For the high-speed digital outputs, derating must be taken into account at a switching frequency >50 kHz (see section)
Diagnostic status	Standard outputs and mixed channels: Output monitoring with 10 ms delay; High-speed outputs: Output monitoring with 10 µs delay
Leakage current when the output is switched off	Standard outputs and mixed channels: 5 µA; High-speed outputs: 25 µA
R DS(on)	140 mΩ (note: Only for standard outputs and mixed channels.)
Residual voltage	Standard outputs and mixed channels: <0.1 V at nominal current 0.5 A; High-speed outputs: <0.9 V at nominal current 0.1 A
Peak short-circuit current	Standard outputs and mixed channels: <3 A; High-speed outputs: <20 A
Switch-on in the event of overload shutdown or short-circuit shutdown	Standard outputs and mixed channels: Approx. 10 ms (depends on module temperature); High-speed outputs: No switch-on
Braking voltage when switching off inductive loads	Standard outputs and mixed channels: Typ. 45 VDC

Electrical properties

Electrical isolation

Ethernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC; Channel isolated from bus; Channel not isolated from channel or PLC

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Switching frequency derating for high-speed digital outputs".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Dimensions – Width	164 mm
Dimensions – Height	99 mm
Dimensions – Depth	75 mm
Note	X20 end cover plate (right) included in delivery; 3 X20 terminal blocks (16-pin) included in delivery; Interface module slot cover included in delivery
Weight	310 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (15)

X20CP1382: frequently asked questions

When can X20CP1382 be shipped?

X20CP1382 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20CP1382 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20CP1382 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP1382, subject to availability and destination.
