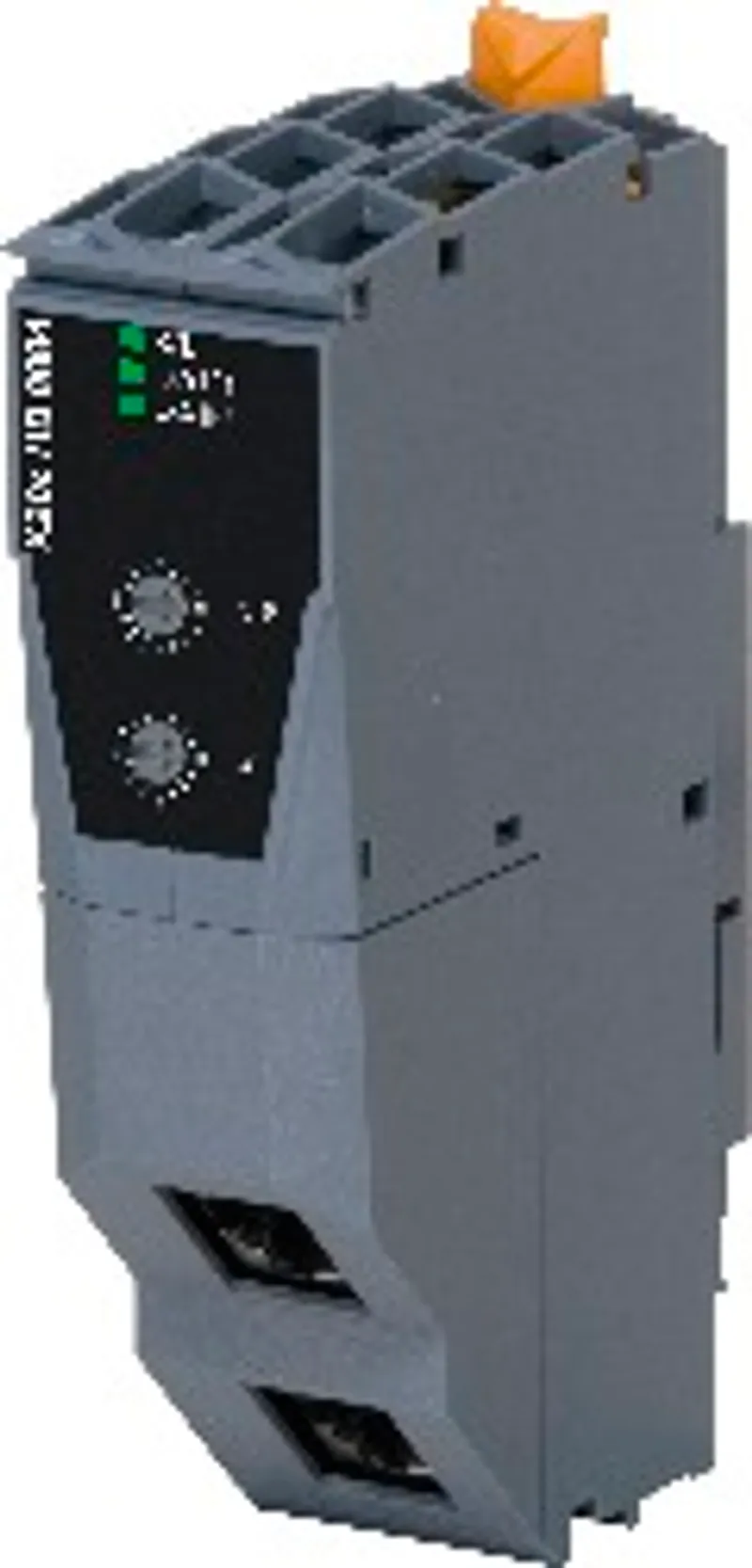

B&R X20cHB8884

POWERLINK compact link selector

MPN: X20cHB8884
Category: X20 redundancy systems

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20cHB8884?

Connecting POWERLINK devices to the POWERLINK cable redundancy system

Integrated compact link selector function

Specifications

Short description

POWERLINK compact link selector

Connects POWERLINK devices to a redundant POWERLINK network

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Bus function	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Status indicators	Module status, bus function
Power consumption	2 W

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Type	POWERLINK compact link selector
Variant	2x shielded RJ45
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Hub propagation delay	0.96 to 1 µs

Electrical properties

Electrical isolation

Power supply isolated from POWERLINK (IF1 and IF2)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Starting temperature	Yes, -40°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Pitch – X20BB81	62.5 +0.2 mm (note: Pitch is based on the width of bus base X20cBB81 or X20cBB82. 1 X20cHB2880 hub expansion module or 2 X20cHB2885 hub expansion modules and 1 X20cPS8002 power supply module are also always required for the compact link selector.)
Pitch – X20BB82	87.5 +0.2 mm (note: Pitch is based on the width of bus base X20cBB81 or X20cBB82. 1 X20cHB2880 hub expansion module or 2 X20cHB2885 hub expansion modules and 1 X20cPS8002 power supply module are also always required for the compact link selector.)
Note	Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20cPS8002 separately. ; Order 1x hub expansion module X20cHB2880 or 2x hub expansion module X20cHB2885. ; Order 1x bus base X20cBB81 or X20cBB82 separately

Accessories

Required accessories (order separately)

X20cPS8002	System modules for X20 hub systems — Supply for X20 stand-alone devices; No electrical isolation between the I/O supply and the device power supply
X20cHB2880	System modules for X20 hub systems — Hub expansion module2x hub 100 BASE-TX POWERLINK bus controller X20BC8083, standalone hub X20HB8880 and the POWERLINK TCP/IP gateway X20HB8…
X20cHB2885	System modules for X20 redundancy systems — Active hub expansion module; 2x Fast Ethernet hub for redundant wiring; Hot-swap-capable
X20cBB82	System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module:Base module (BC, HB, et…
X20cBB81	System modules for expandable bus controllers — Bus base with one expansion slot The bus module has an expansion slot. The following modules are used on this module:Base module (BC, HB, e…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D File STEP/DXF X20BC and X20IF ModuleZIP · 1 MB · 2.3 (09/19/2019)
