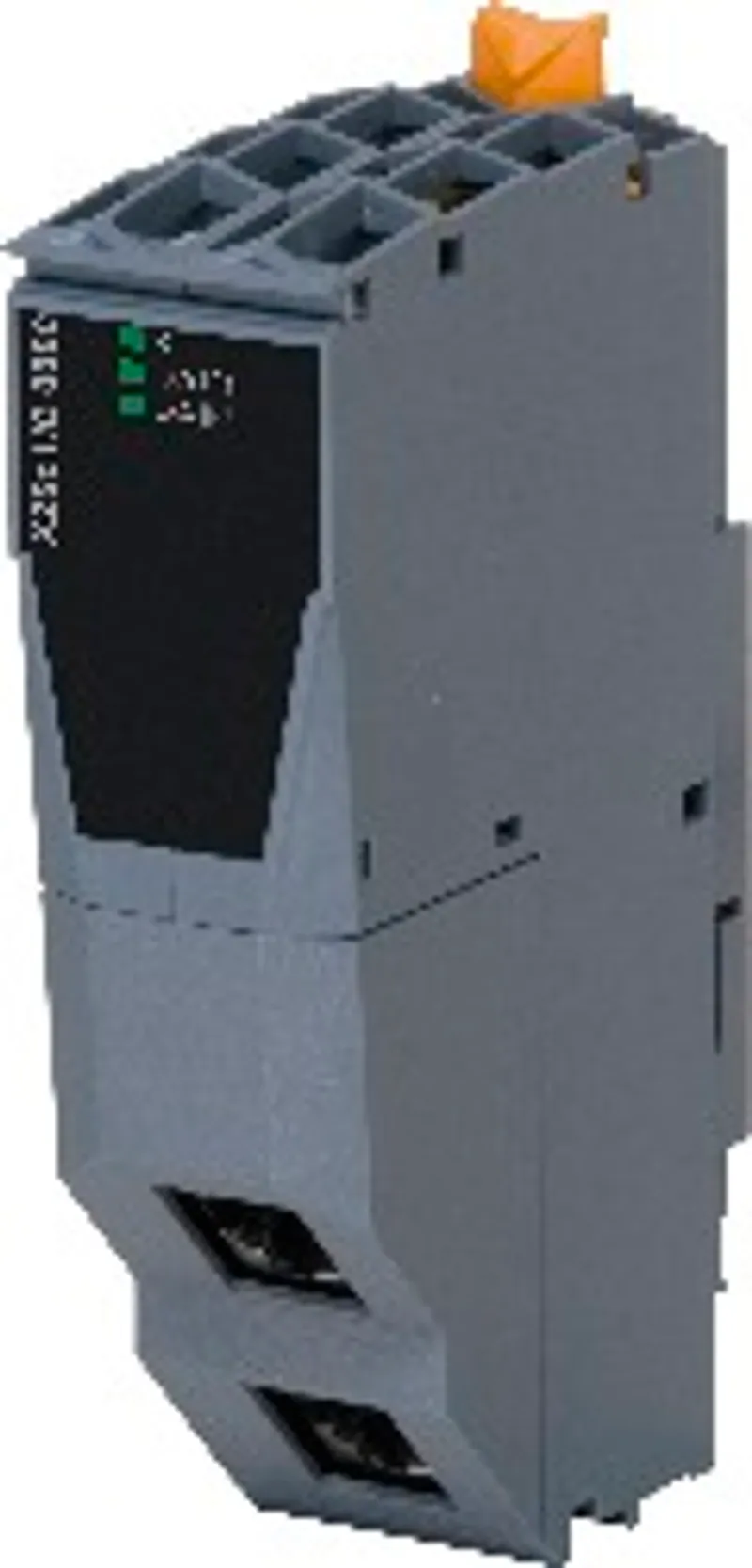

B&R X20cHB8880
Hub, modular X20 hub with up to 2 slots for hub expansion…
- MPN
- X20cHB8880
- Category
- X20 hub system
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20cHB8880?
2x / 4x / 6x Fast Ethernet hubModular constructionEasily expandable
The X20 hub is a device that can be used universally in standard Ethernet networks or POWERLINK networks. It is suitable for 100 Mbit/s (Fast Ethernet) networks. The bus modules expanded to the left allow connection of up to 2 hub expansion modules in addition to the hub base module. This means that a single base device provides up to 6 hub interfaces.
Specifications
Short description
| Hub | Modular X20 hub with up to 2 slots for hub expansion modules |
General information
| Diagnostics – Module status | Yes, using LED status indicator |
| Diagnostics – Bus function | Yes, using LED status indicator |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Status indicators | Module status, bus function |
| Power consumption | 2 W |
Interfaces
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Type | Hub base module |
| Variant | 2x shielded RJ45 |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Hub propagation delay | 0.96 to 1 µs |
Electrical properties
| Electrical isolation | Power supply isolated from Ethernet (IF1 and IF2) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Starting temperature | Yes, -40°C |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | Up to 100%, condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch – X20BB80 | 37.5 +0.2 mm (note: Pitch is based on the width of bus base X20cBB8x. Up to two X20cHB2880 hub expansion modules and one X20cPS8002 power supply module are always required for the hub.) |
| Pitch – X20BB81 | 62.5 +0.2 mm (note: Pitch is based on the width of bus base X20cBB8x. Up to two X20cHB2880 hub expansion modules and one X20cPS8002 power supply module are always required for the hub.) |
| Pitch – X20BB82 | 87.5 +0.2 mm (note: Pitch is based on the width of bus base X20cBB8x. Up to two X20cHB2880 hub expansion modules and one X20cPS8002 power supply module are always required for the hub.) |
| Note | Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20cPS8002 separately. ; Order 1x bus base X20cBB8x separately. |
Accessories
Required accessories (order separately)
| X20cPS8002 | System modules for X20 hub systems — Supply for X20 stand-alone devices; No electrical isolation between the I/O supply and the device power supply |
| X20cBB80 | System modules for bus controllers — Bus base The following modules are used on the bus module:Base module (BC, HB, etc.)Supply moduleThe left and right end cover plates are in… |
| X20cBB82 | System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module:Base module (BC, HB, et… |
| X20cBB81 | System modules for expandable bus controllers — Bus base with one expansion slot The bus module has an expansion slot. The following modules are used on this module:Base module (BC, HB, e… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Optional accessories (3)
| X20cHB2881 | System modules for X20 hub systems — Hub expansion module2x Hub 100 BASE-FX The POWERLINK bus controller X20BC8083 and the stand-alone hubs X20HB8880 and X20HB8815 are equipped… |
| X20cHB2880 | System modules for X20 hub systems — Hub expansion module2x hub 100 BASE-TX POWERLINK bus controller X20BC8083, standalone hub X20HB8880 and the POWERLINK TCP/IP gateway X20HB8… |
| X20cHB1881 | System modules for X20 hub systems — Hub expansion module1x hub 100 BASE-FXHot-swap-capable POWERLINK bus controllers X20BC8083 and X20BC8084 (starting with revision D0) and st… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (12)
- 2226379 CSA Certificate of Compliance X20 X67
- ABS Certificate of Product Design Assessment - X20 IO Series
- E115267 UL Certificate of Compliance X20
- EU Data Act - X20 IO - Connected Product Information Notice
- EU Declaration ATEX X20
- EU Declaration of conformity PLC X20
- FTZU 09 ATEX 0083X
- KR Type Approval Certificate MIL39390-AC003 (X20 System)
- Lloyds Register (X20 only)
- RINA Type Approval Certificate - X20 / Power Panel T30
- TAA00000BJ DNV Type Approval Certificate X20
- UK Declaration PLC X20
