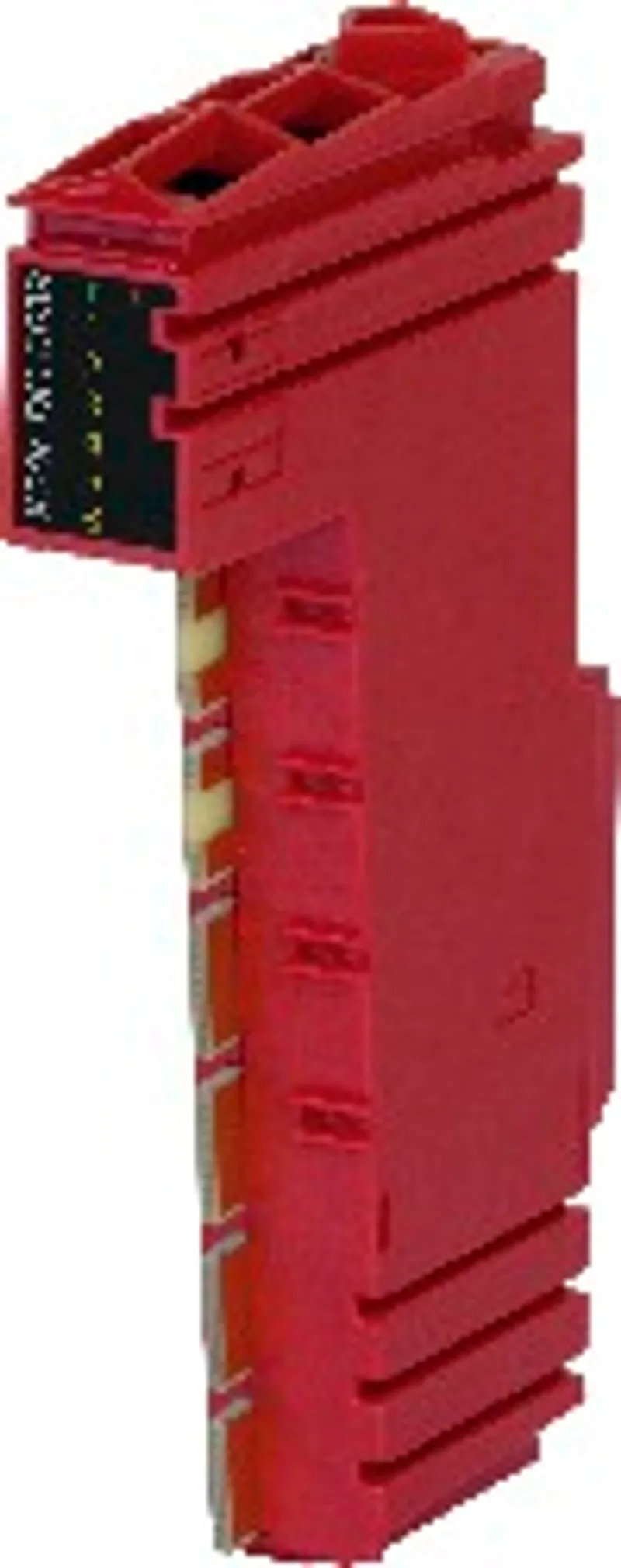

B&R X20cDO6639
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Digital outputs |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20cDO6639 be shipped?
X20cDO6639 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20cDO6639 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20cDO6639 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20cDO6639, subject to availability and destination.
6 digital outputsRelay module for 240 VAC / 30 VDCSwitching current 2 A6 normally open contactsSingle-channel isolated outputs This module is equipped with 6 relay outputs with normally open contacts for 240 VAC / 30 VDC. The outputs are single-channel isolated.
Specifications
Specifications
| I/O module | 6 digital outputs 30 VDC / 240 VAC, outputs single-channel isolated |
| B&R ID code | 0xE22A |
| Status indicators | I/O function per channel, operating state, module status |
| Module run/error | Yes, using LED status indicator |
| Outputs | Yes, using LED status indicator |
| Bus | 1 W |
| Internal I/O | - |
| Additional power dissipation caused by actuators (resistive) [W] | +0.36 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 GcIP20, Ta (see X20 user's manual)FTZÚ 09 ATEX 0083X |
| UL | cULus E115267Industrial control equipment |
| HazLoc | cCSAus 244665Process control equipmentfor hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C)Humidity: B (up to 100%)Vibration: B (4 g)EMC: B (bridge and open deck) |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33BTemperature: 5 - 55°CVibration: 4 gEMC: Bridge and open deck |
| Variant | Relay / Normally open contact Channels are single-channel isolated. |
| Nominal voltage | 30 VDC / 240 VAC |
| Max. voltage | 264 VAC |
| Switching voltage | Max. 110 VDC / 264 VAC |
| Rated frequency | DC / 45 to 63 Hz |
| Nominal output current | 2 A at 30 VDC / 2 A at 240 VAC |
| Total nominal current | 10 A at 30 VDC / 10 A at 240 VAC |
| Actuator power supply | External |
| Contact resistance | Max. 100 mΩ |
| 0 → 1 | ≤10 ms |
| 1 → 0 | ≤10 ms |
| Channel - Bus | Tested at 2300 VAC |
| Channel - Channel | Tested at 750 VAC |
| Electrical | Min. 120 x 103 ops. (at 2 A / 240 VAC) |
| Mechanical | Min. 2 x 107 ops |
| Minimum | 0.05 W DC / 2.4 W AC |
| Maximum | 60 W DC / 480 W AC |
| AC | RC combination or VDR |
| DC | Inverse diode, RC combination or VDR |
| Internal | None |
| Electrical isolation | Channel isolated from bus and I/O power supply |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Not permitted |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | - |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | Up to 100%, condensing |
| Note | Order 1x terminal block X20TB32 separately,order 1x bus module X20cBM12 separately. |
| Pitch | 12.5+0.2 mm |
