Digital outputs Parts
Compare Digital outputs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Power consumption – Bus | Power consumption – Internal I/O | Nominal output current | Total nominal current | R DS(on) |
|---|---|---|---|---|---|

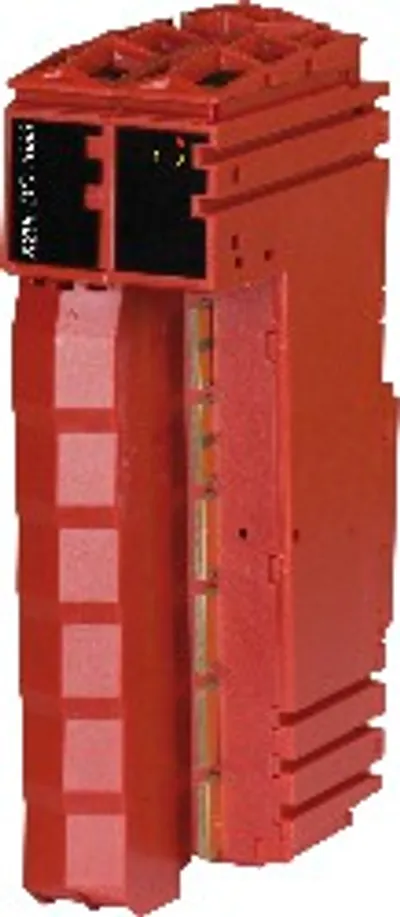

| X20cDO2633 | 0.6 W | - | 2 A | 4 A | — |

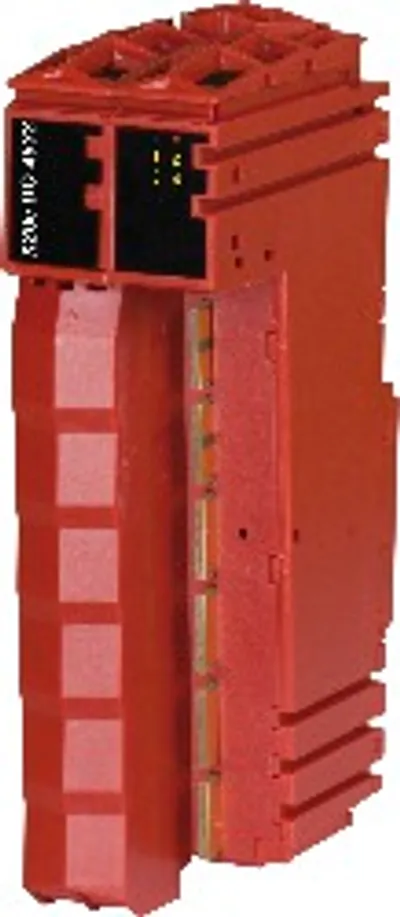

| X20cDO4633 | 0.6 W | - | 1 A | 4 A | — |
| X20cDO4649 | 0.8 W | - | 5 A at 30 VDC / 5 A at 240 VAC | 10 A at 30 VDC / 10 A at 240 VAC | — |
| X20cDO6529 | 1.1 W | - | 1 A at 30 VDC / 0.5 A at 115 VAC | 6 A at 30 VDC / 3 A at 115 VAC | — |

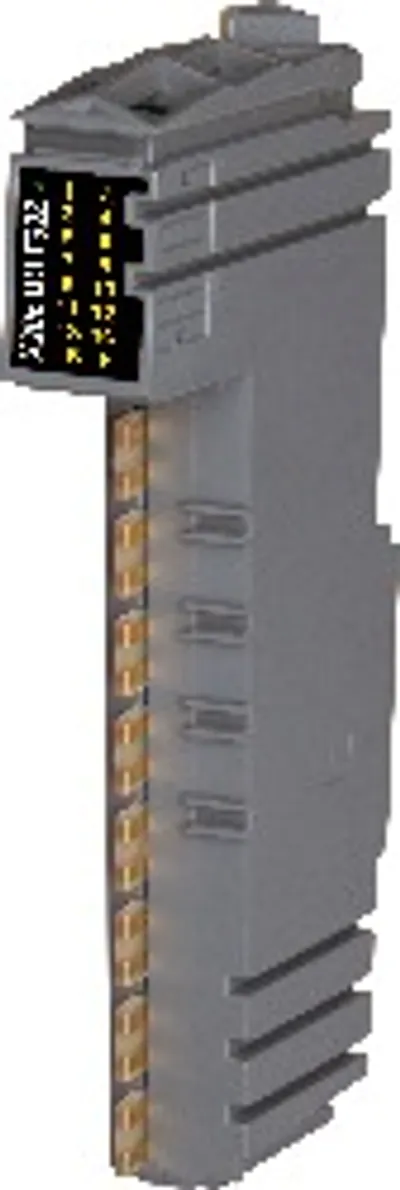

| X20cDOF322 | 0.28 W | 0.95 W | 0.5 A | 8 A | 140 mΩ |
| X20cDO4332-1 | 0.1 W (Rev. <D0: 0.16 W) | 0.49 W | 2 A | 8 A | 60 mΩ (Rev. <D0: 100 mΩ) |

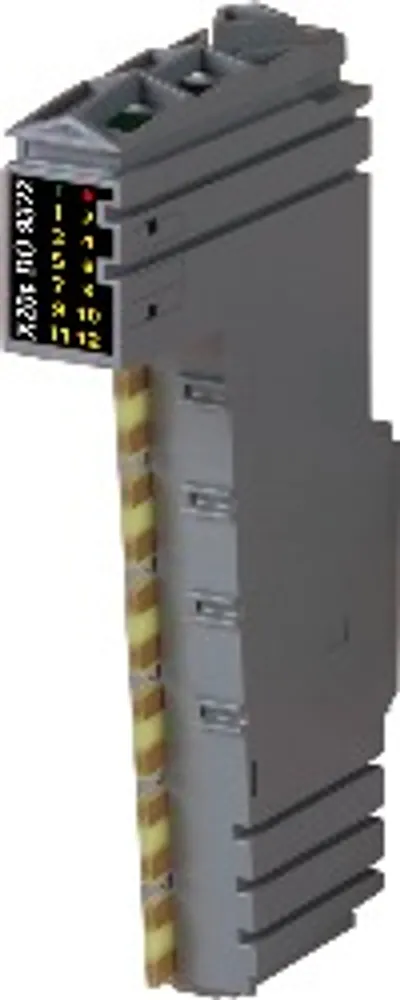

| X20cDO9322 | 0.26 W | 1.15 W | 0.5 A | 6 A | 210 mΩ |
| X20cDO4322 | 0.16 W | 0.49 W | 0.5 A | 2 A | 210 mΩ |
| X20cDO4332 | 0.1 W (Rev. <L0: 0.16 W) | 0.49 W | 2 A | 8 A (Rev. <H0: 4 A) | 60 mΩ (Rev. <L0: 100 mΩ) |
| X20cDO6321 | 0.2 W | 0.59 W | 0.5 A | 3 A | 120 mΩ |
| X20cDO6322 | 0.18 W | 0.71 W | 0.5 A | 3 A | 210 mΩ |

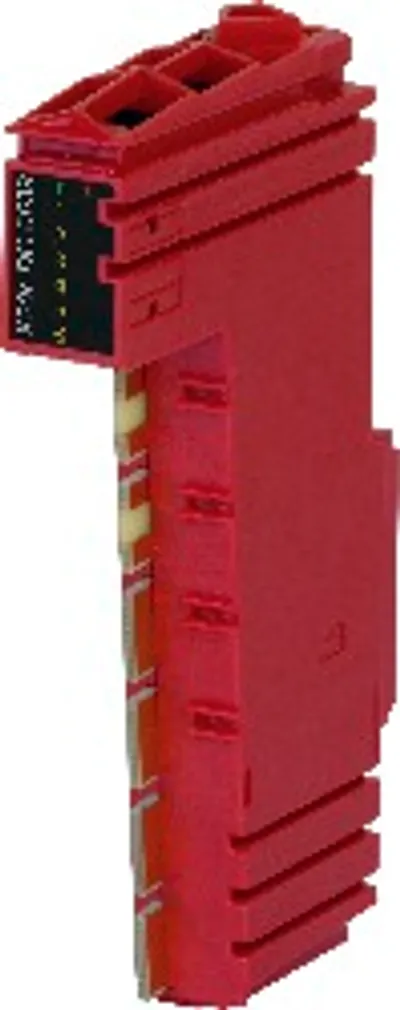

| X20cDO6639 | 1 W | - | 2 A at 30 VDC / 2 A at 240 VAC | 10 A at 30 VDC / 10 A at 240 VAC | — |
| X20cDO8331 | 0.22 W | - | 2 A | 8 A | 35 mΩ |
| X20cDO8332 | 0.22 W | - | 2 A | — | 140 mΩ |

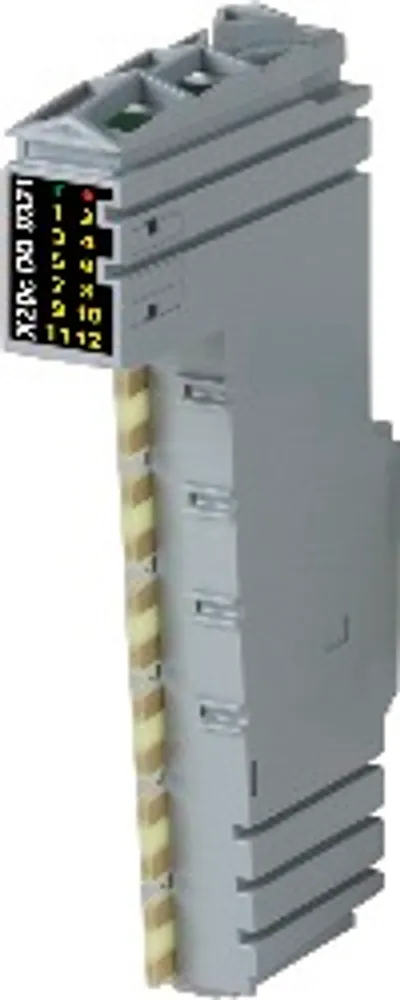

| X20cDO9321 | 0.26 W | 0.99 W | 0.5 A | 6 A | 120 mΩ |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Status indicators | I/O function per channel, operating state, module status |
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Degree of protection per EN 60529 | IP20 |
| Temperature – Horizontal mounting orientation | -25 to 60°C |
