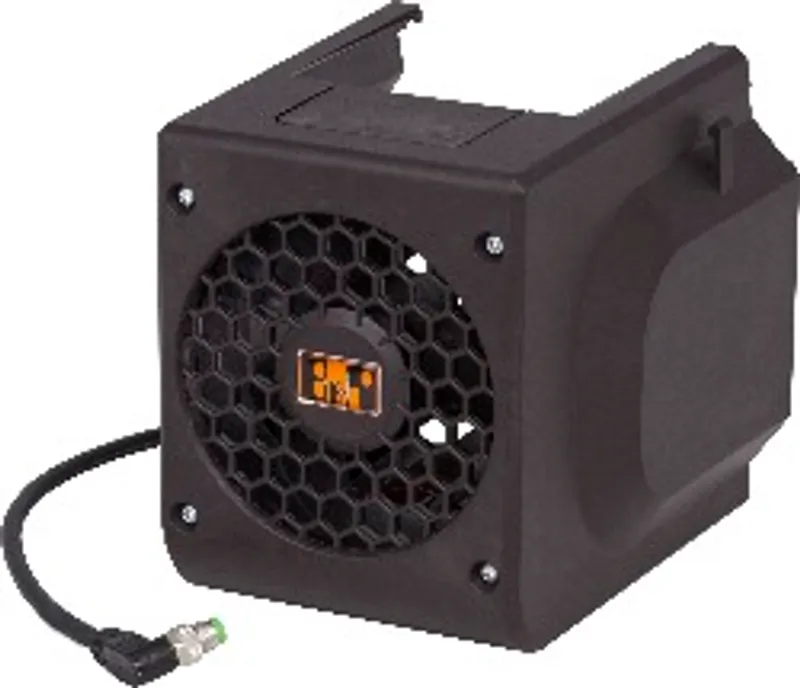

B&R 8ZDFB5000000.000-0
ACOPOSmotor fan kit for 8DI5xx modules
- MPN
- 8ZDFB5000000.000-0
- Category
- Fan kits
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8ZDFB5000000.000-0?
ACOPOSmotor fan kit for 8DI5xx modules
Specifications
General information
| Short description | ACOPOSmotor fan kit for 8DI5xx modules |
24 VDC power supply
| Input voltage | 24 VDC + 10% / - 50% |
| Max. power consumption | 7.4 W |
| Variant | 4-pin male M8 connector, 90° angled |
Operating conditions
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m |
| Degree of protection per EN 60529 | IP24 |
Ambient conditions
| Temperature – Storage | -20 to 55°C |
| Temperature – Transport | -20 to 75°C |
| Relative humidity – Operation | 15 to 90%, non-condensing |
| Relative humidity – Storage | 15 to 90%, non-condensing |
| Relative humidity – Transport | In preparation |
Mechanical properties
| Service life – At 40°C | 75,000 h |
| Dimensions – Width | 167 mm |
| Dimensions – Height | 173.1 mm |
| Dimensions – Depth | 143 mm |
| Volumetric flow rate | 3.256 m³/min |
| Operating noise | 47 db(A) |
| Weight | 0.57 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
8ZDFB5000000.000-0: frequently asked questions
When can 8ZDFB5000000.000-0 be shipped?
8ZDFB5000000.000-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8ZDFB5000000.000-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8ZDFB5000000.000-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8ZDFB5000000.000-0, subject to availability and destination.
