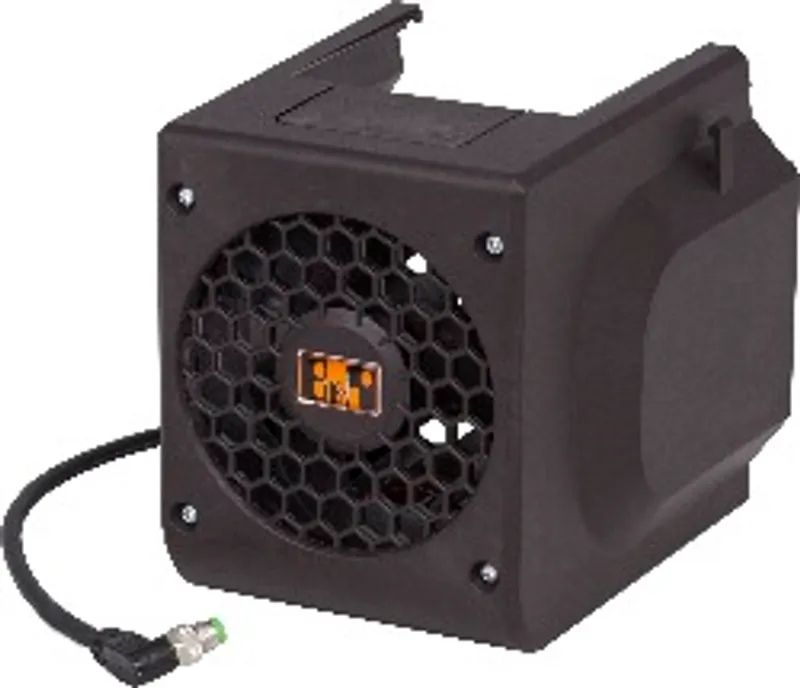

B&R 8ZDFB4000000.000-0

ACOPOSmotor fan kit for 8DI4xx modules

MPN: 8ZDFB4000000.000-0
Category: Fan kits

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8ZDFB4000000.000-0?

ACOPOSmotor fan kit for 8DI4xx modules

Specifications

General information

Short description

ACOPOSmotor fan kit for 8DI4xx modules

24 VDC power supply

Input voltage	24 VDC + 10% / - 50%
Max. power consumption	5.5 W
Variant	4-pin male M8 connector, 90° angled

Operating conditions

Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum	4000 m
Degree of protection per EN 60529	IP24

Ambient conditions

Temperature – Storage	-20 to 55°C
Temperature – Transport	-20 to 70°C
Relative humidity – Operation	15 to 90%, non-condensing
Relative humidity – Storage	15 to 90%, non-condensing
Relative humidity – Transport	In preparation

Mechanical properties

Service life – At 40°C	80,000 h
Dimensions – Width	125 mm
Dimensions – Height	131 mm
Dimensions – Depth	143.5 mm
Volumetric flow rate	2.486 m³/min
Operating noise	47 db(A)
Weight	0.43 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (1)

E225616 UL Certificate of Compliance ACOPOSmotorPDF · 234 KB · 1.2 (02/04/2021)
